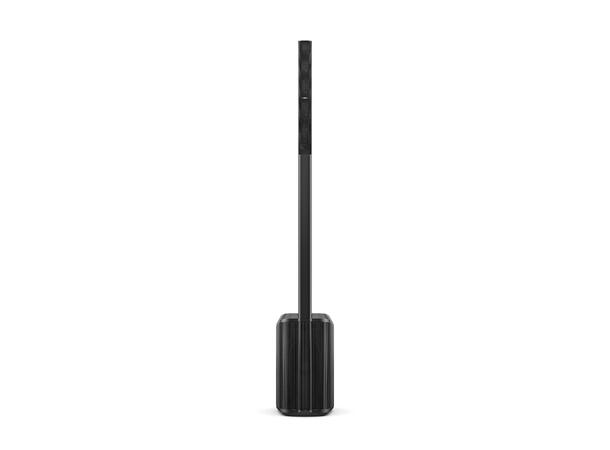

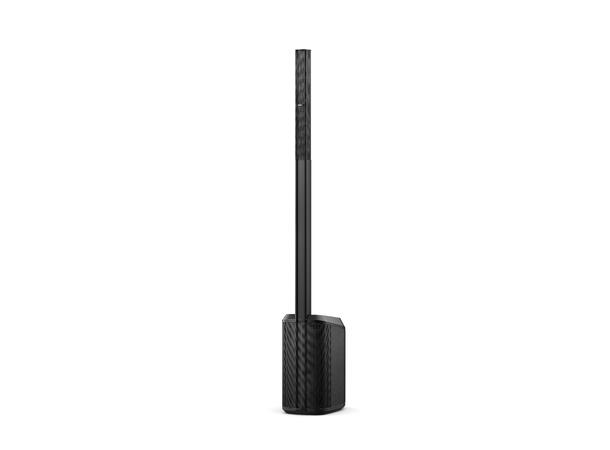

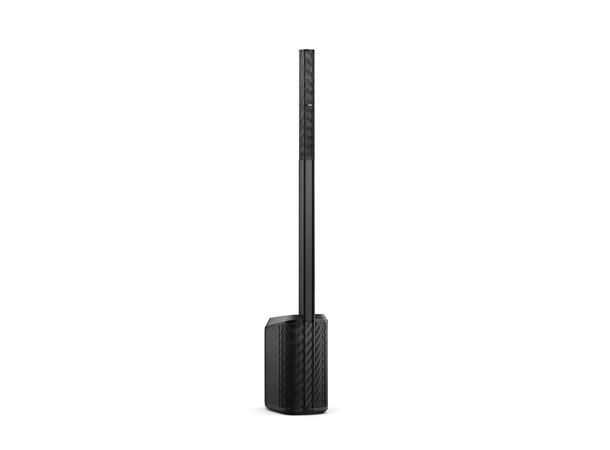

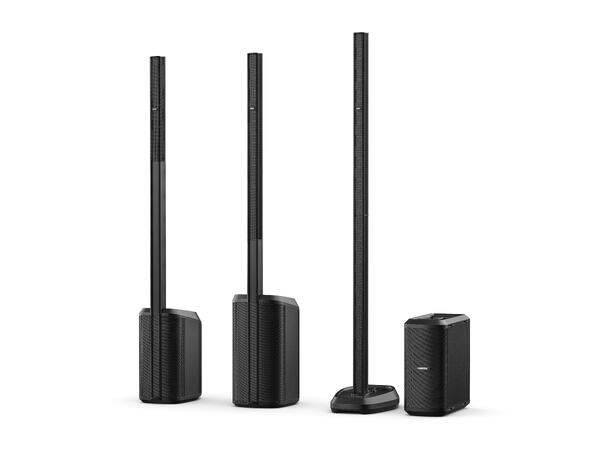

As the most portable L1 Pro system, the L1 Pro8 portable PA is ready whenever you are. With an 8-driver articulated C-shape line array, the L1 Pro8 delivers 180-degree horizontal sound coverage, making it an ideal companion for shows in small venues like coffee shops and cafes. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth® streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app places wireless control in your hands from your smartphone. It’s an ultra-portable system with a surprising size-to-performance ratio. The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.

FEATURES

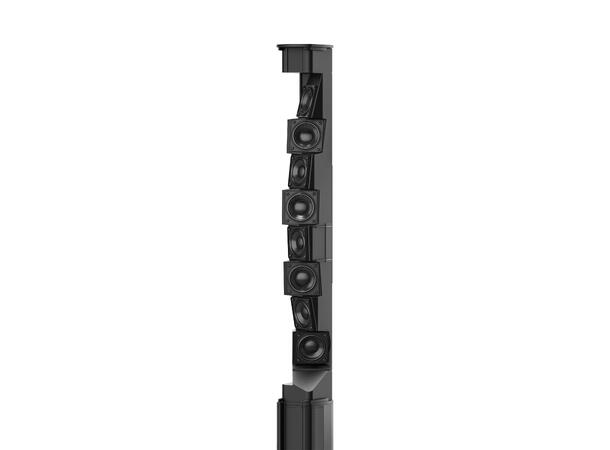

• Generous coverage: C-shaped line array featuring 8 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues

• Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, and more

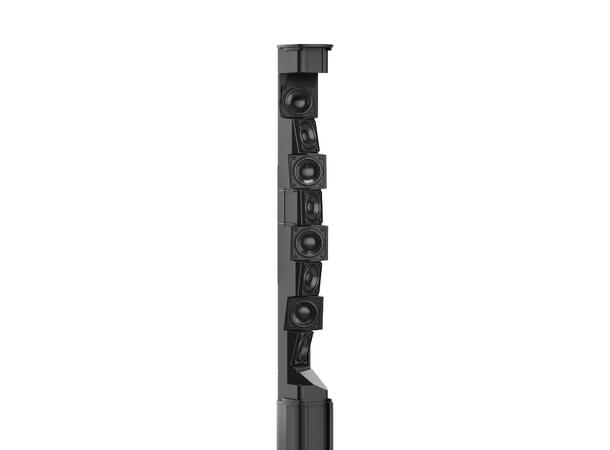

• Maintain supreme vocal and instrument clarity with a C-shape extended-frequency line array featuring 8 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

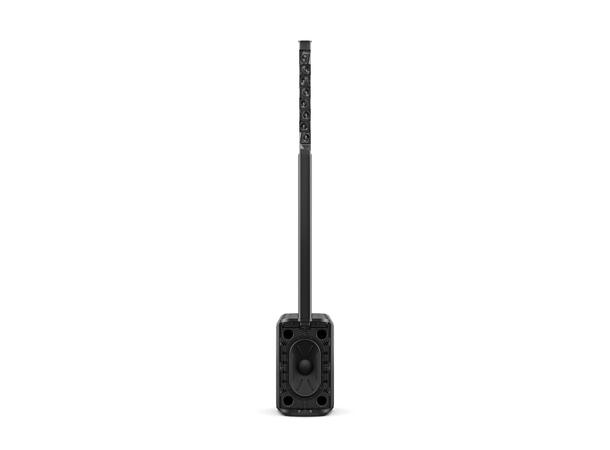

• Bring more bass with less bulk with an integrated subwoofer featuring a 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

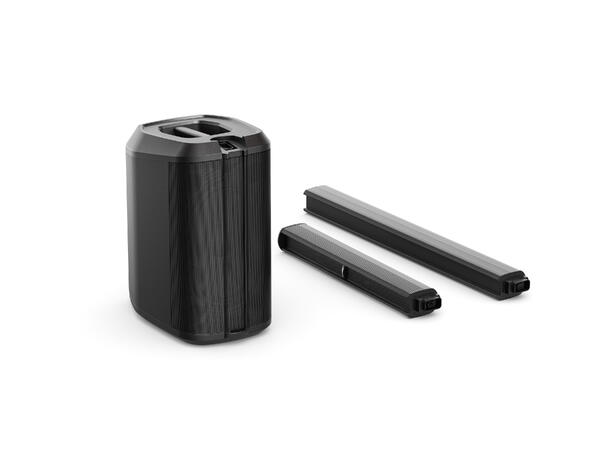

• Go from vehicle to venue in one trip with a modular three-piece system that’s easier to pack, carry, and set up

• Select between optimized system EQ presets for live music, recorded music, and more

• Connect various audio sources easily via built-in mixer with two combo XLR-1/4-inch phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

• Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)

• Take wireless control with the Bose Music app on your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets

• Stream high-quality Bluetooth® audio from compatible devices

Applications

Designed for a wide range of applications, including:

• Houses of worship
• Schools and universities
• Resorts and hospitality venues
• Live music performances
• Business presentations
• Mobile DJs

SPECS

Technical Specification

• Number of Channels

• 2

• Power Class

• Class D

• Input Channels

• 3

• Connectors

• (1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming

• Sensitivity Options

• -100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver / -105 dB to +50 dB, 3.5 mm / -115 dB to +40 dB, TRS, input to driver

• Phantom Power

• 48 VDC, Channels 1 & 2

• AC Power Connector

• IEC

• AC Power Input

• 100–240 VAC (±15%, 50/60 Hz)

• Current Draw, Inrush

• 15.8 A at 120 VAC, 60 Hz / 30.1 A at 230 VAC, 50 Hz

• Software Applications

• Bose Music (Android, iOS)

• Computer Interface Connection

• USB Type-C

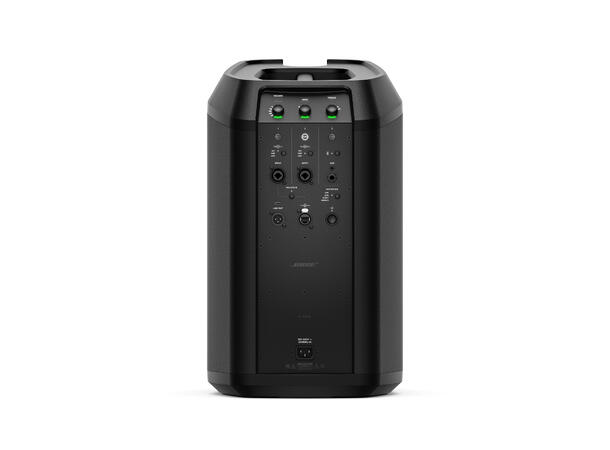

• Controls, Rear Panel

• 3 digital rotary encoders

• LED Status Indicators

• (1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

• DSP-Enabled

• Yes

• Presets

• ToneMatch presets

• Processing Functions

• System EQ, reverb

• Colors

• Black

• Enclosure Material

• Power stand: High-impact polypropylene / Extension & Array: High-impact ABS

• Grille

• Perforated steel, powder-coated finish

• Cooling System

• Convection cooling

• Product Dimensions (H×W×D)

• 78.7 in × 12.5 in × 17.9 in (2000 mm × 317 mm × 456 mm)

• Net Weight

• 38.2 lb (17.4 kg)

• Shipping Dimensions (H×W×D)

• 37.4 in × 15.8 in × 24.8 in (950 mm × 400 mm × 630 mm)

• Shipping Weight

• 47.2 lb (21.4 kg)

• Frequency Range (-10 dB)

• 33 Hz – 18 kHz

• Coverage, Horizontal

• 180°

• Calculated Maximum SPL @ 1 m

• 112 dB

• Power Handling, Peak

• 240 W

• Coverage, Vertical

• 40°

• Crossover

• 200 Hz

• High-Frequency

• 8 × 2 in (51 mm) drivers

• Low-Frequency

• 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver

VIDEOs

Product codes

• 840919-1100
• L1 PRO8 PORTABLE LINE ARRAY,120V,US

• 840919-2100
• L1 PRO8 PORTABLE LINE ARRAY,230V,EU

• 840919-3100
• L1 PRO8 PORTABLE LINE ARRAY,100V,JP

• 840919-4100
• L1 PRO8 PORTABLE LINE ARRAY,230V,UK

• 840919-5100
• L1 PRO8 PORTABLE LINE ARRAY,230V,AU

• 840919-5130
• L1 PRO8 PORTABLE LINE ARRAY,230V,INDIA

Warranty Period

• 2 years

Included in Packaging

• (1) carry bag (arrays)

• (1) IEC power cord

DOWNLOADS

• Technical Data Sheet

• Quick Start Guide

• Firmware Update Instructions (Multilingual)

• Owners Manual (Multilingual)

• CAD Files (zip)

• Product Images

• Installation Guide

• Installation Guide - Multilingual

• Compliance Documents
