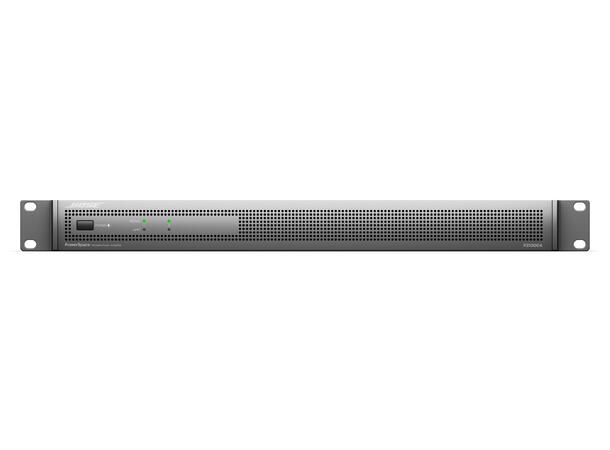

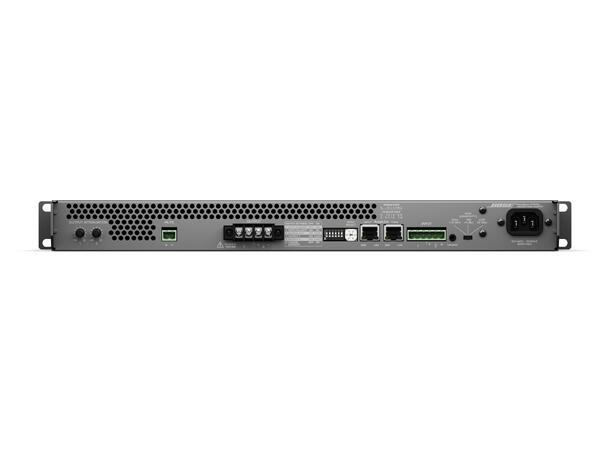

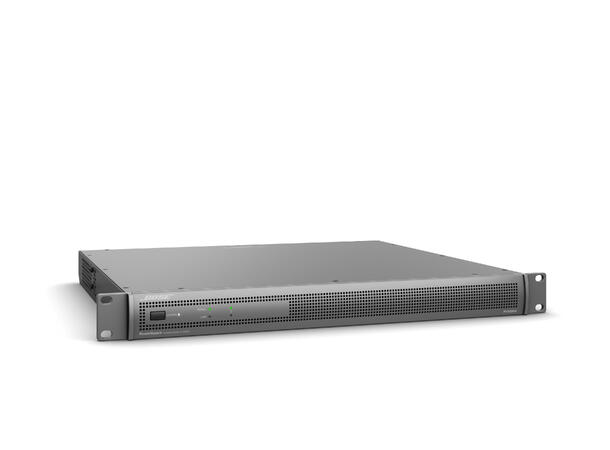

Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P21000A provides 1000 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.

FEATURES

• 1000 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems

• AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure

• Load-independent outputs deliver full channel power to either low-impedance loads (4-8 O) or high-impedance (70/100V) loads without bridging

• I-Share outputs deliver 2x power level by combining the current of two channels

• Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

Applications

Designed for a wide range of applications, including:

• Retail stores
• Restaurants and bars
• Hospitality venues
• Conference centers
• Schools
• Auxiliary zones

SPECS

Technical Specification

• Channel Separation (Crosstalk)

• > 80 dB at 1 kHz, > 65 dB at 20 kHz

• Dynamic Range

• = 100 dB at rated power, A-weighted

• Gain, High-Impedance

• 35 dB, 70V mode / 38 dB, 100V mode

• Gain, Low-Impedance

• 38 dB

• Maximum Peak Power, Symmetrical

• 2000 W

• Frequency Response

• 20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 O / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V

• Number of Channels

• 2

• Power Class

• Class D

• Rated Power, Symmetrical

• 1000 W

• THD+N

• < 0.04% at 1 kHz, 4–8 O, 70V/100V

• Input Channels

• 2 balanced

• Connectors

• (1) 6-pin Euroblock

• Input Impedance

• 10 kO

• Maximum Input Level

• 22 dBu at 14 dBu sensitivity

• Sensitivity

• -10 dBV, 4 dBu, 14 dBu

• Channels

• 8 AmpLink in, 8 AmpLink thru

• Connectors

• (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru

• Type

• 6-pin Euroblock

• Channels

• 2

• Connectors

• (1) 4-terminal block

• EMC

• This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.

• Mains Connector

• IEC 60320-C14 inlet

• Mains Voltage

• 100–240 VAC (±10%), 50/60 Hz

• AC Power Consumption

• 25 W auto-standby, 570 W maximum

• Controls, Front Panel

• (1) power button

• Controls, Rear Panel

• Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity

• LED Status Indicators

• (1) power/status LED, (4) input signal LEDs, (4) output limit LEDs

• DSP-Enabled

• No

• Colors

• Gray

• Cooling System

• Microprocessor-controlled variable-speed fans, front-to-back air flow

• Suspension/Mounting

• Rack-mounting

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)

• Net Weight

• 14.6 lb (6.6 kg)

• Rack Spaces

• 1

• Shipping Weight

• 19.0 lb (8.6 kg)

Product codes

• 803287-1110
• 120V US

• 803287-2110
• 230V EU

• 803287-5110
• 230V AU

• 803287-4110
• 230V UK

• 803287-3110
• 100V JP

Warranty Period

• 5 years

Included in Packaging

• (1) IEC power cord

• (1) PowerSpace P21000A

• (1) installation guide

• (1) I-Share jumper

• (1) 2-pin Euroblock connector

• (2) 3-pin Euroblock connectors

• (1) Cat 5e cable, 3.3 ft (1 m)

• (5) terminal forks, 14–16 AWG
