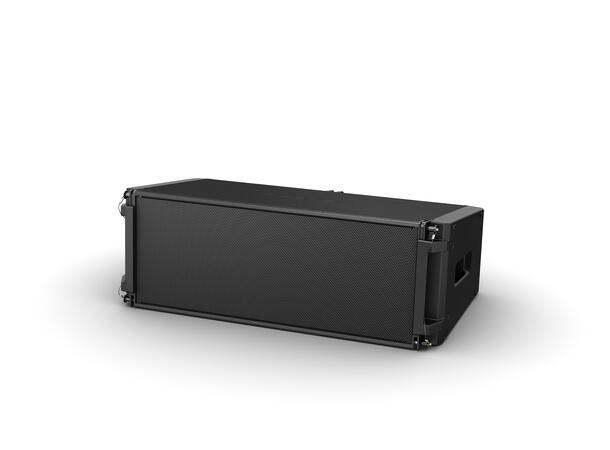

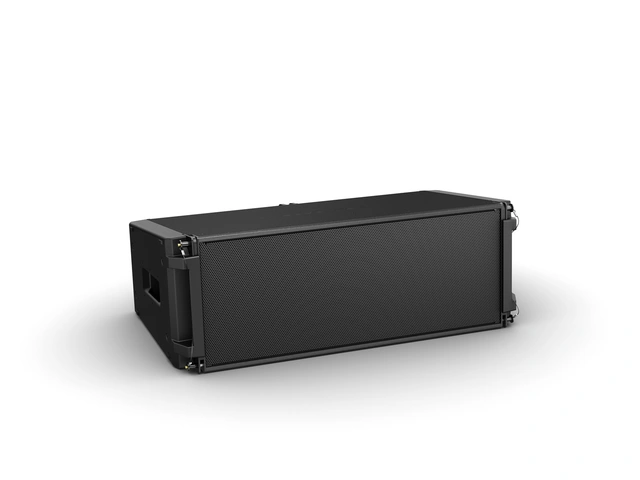

BOSE SHOWMATCH SM10

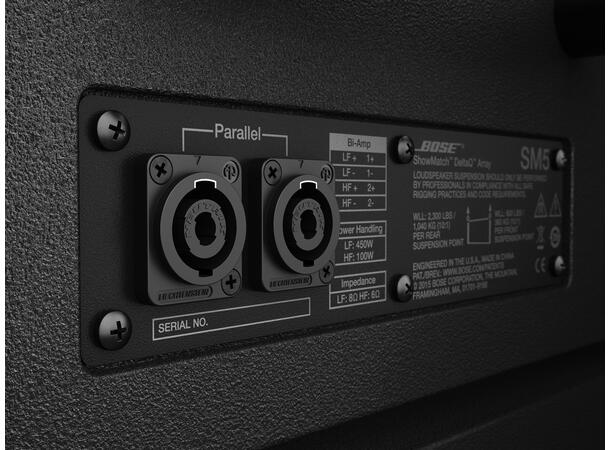

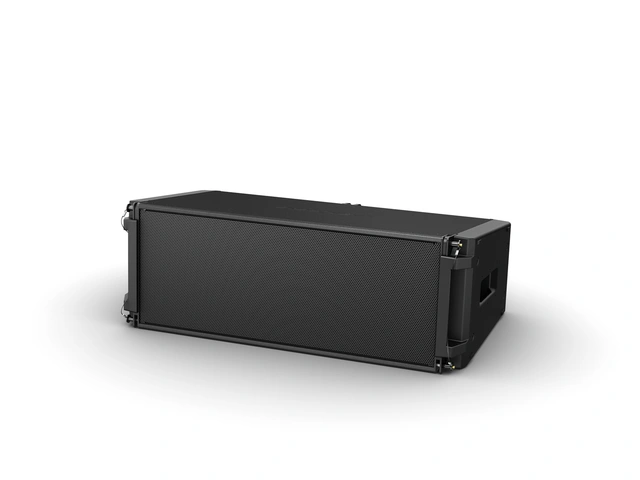

Bose Professional ShowMatch DeltaQ SM10 full-range array modules provide 10° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2 channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.

FEATURES

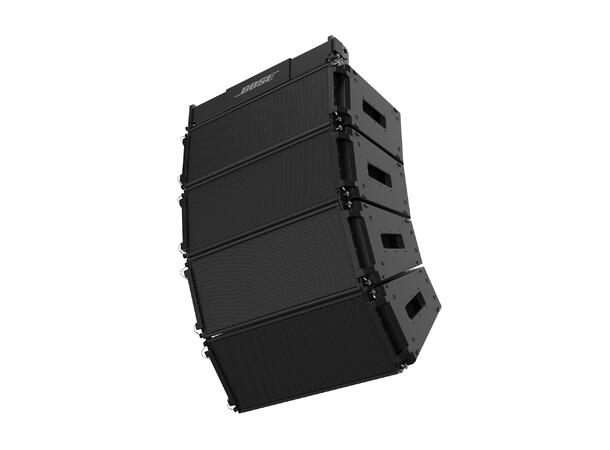

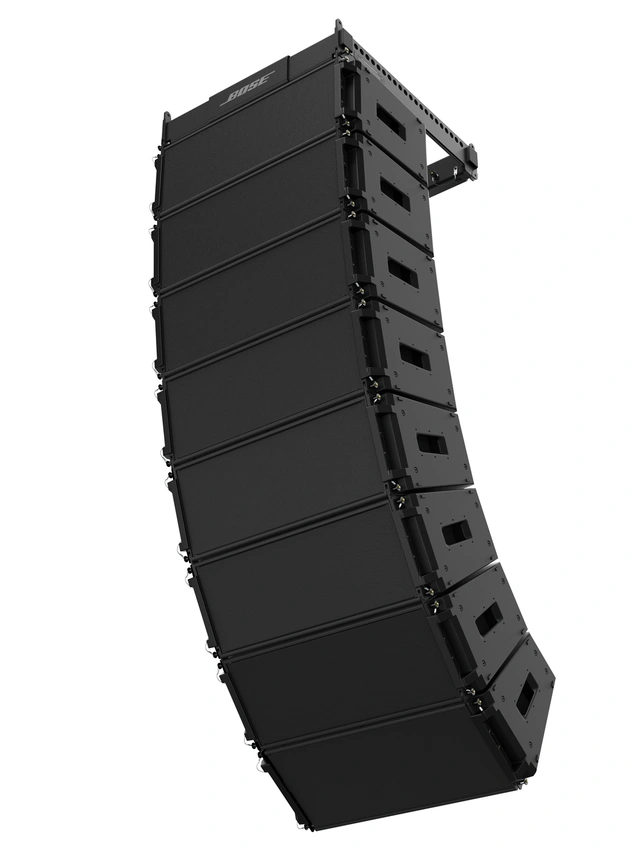

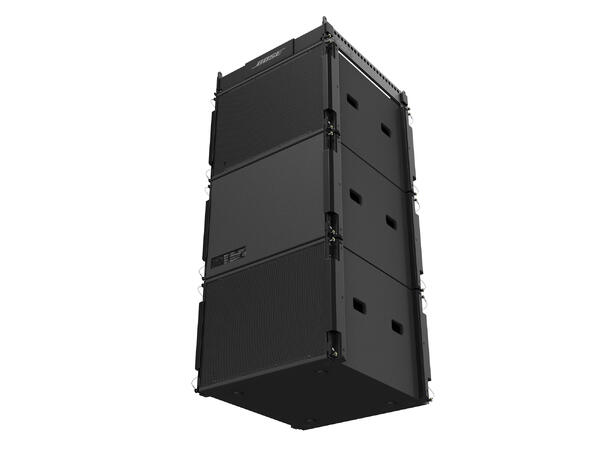

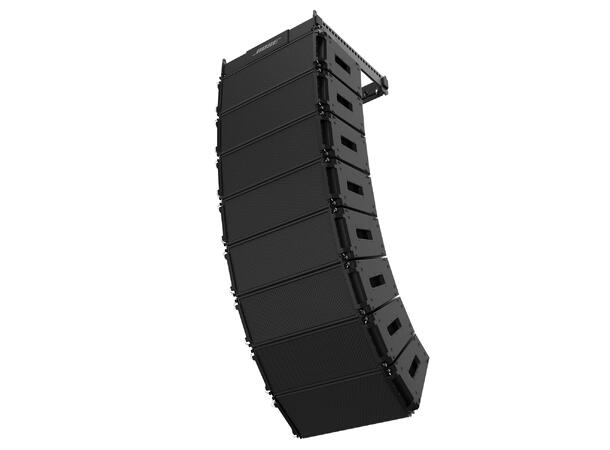

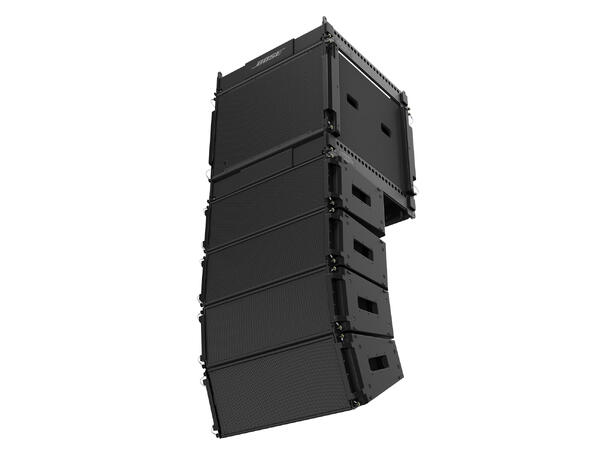

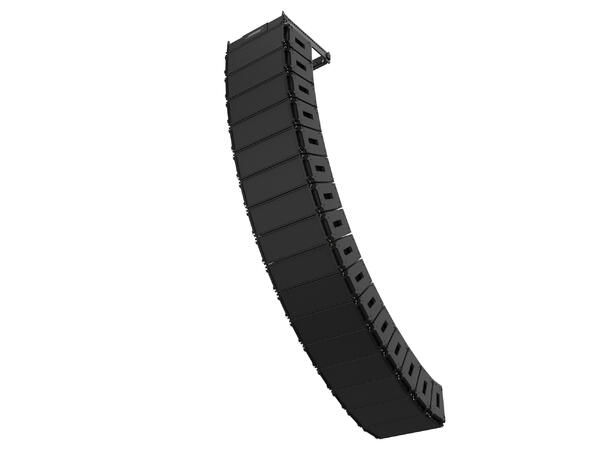

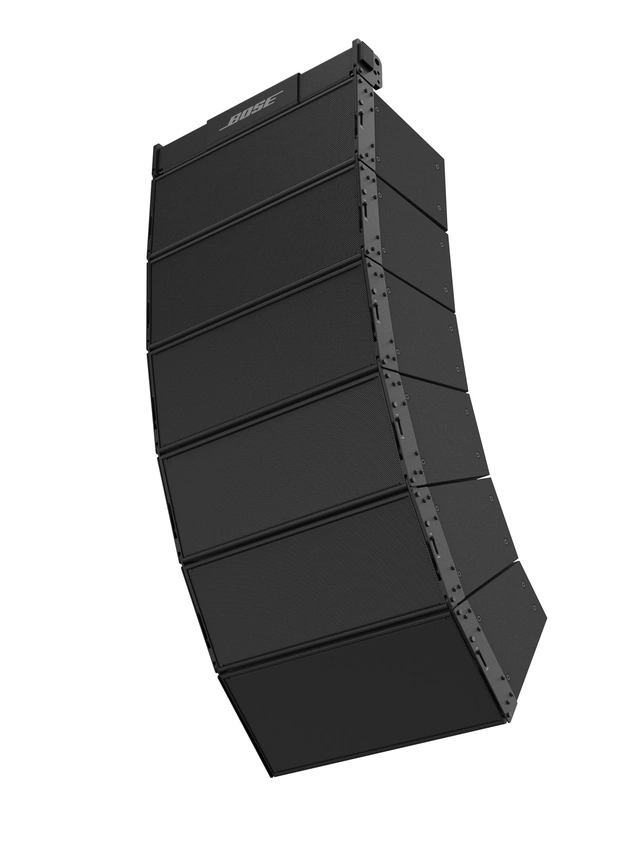

• DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

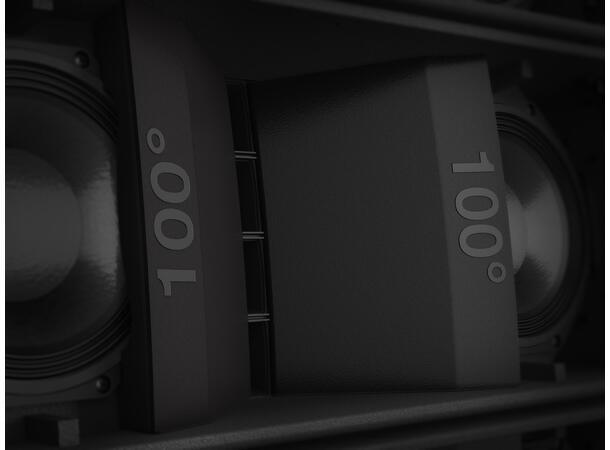

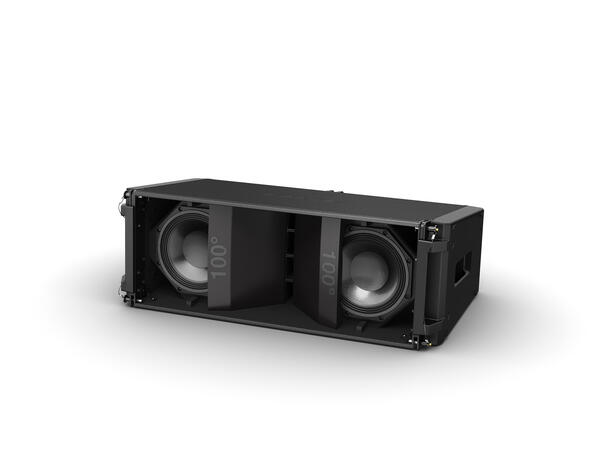

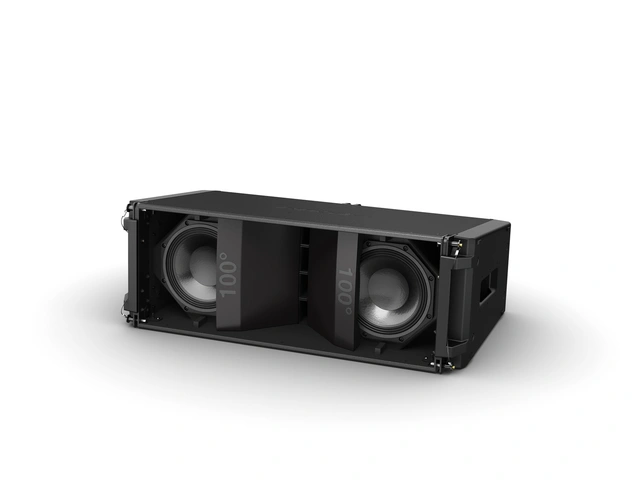

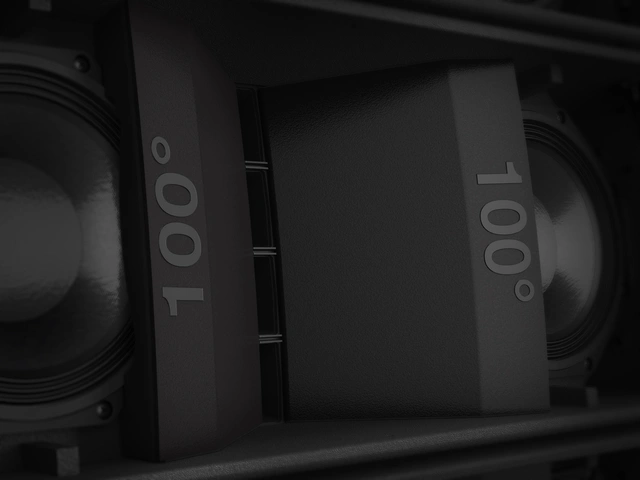

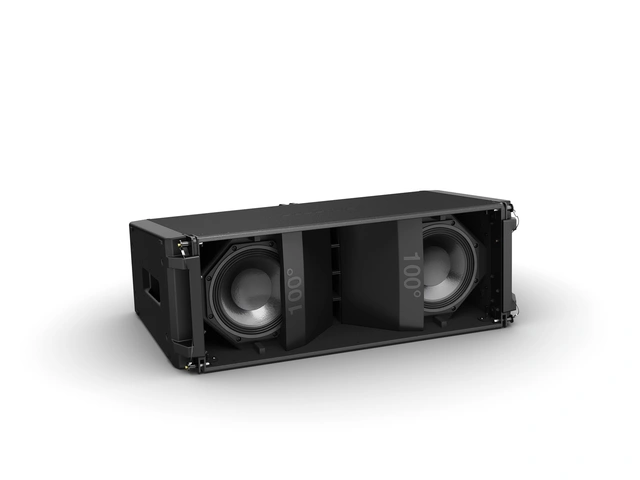

• Changeable waveguides — includes both 70° and 100° waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns.

• Compact, portable enclosure — Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.

• Tour-sound output level — 4 × Bose Professional EMB2S compression drivers, improved with more high-frequency output, and 2 × 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.

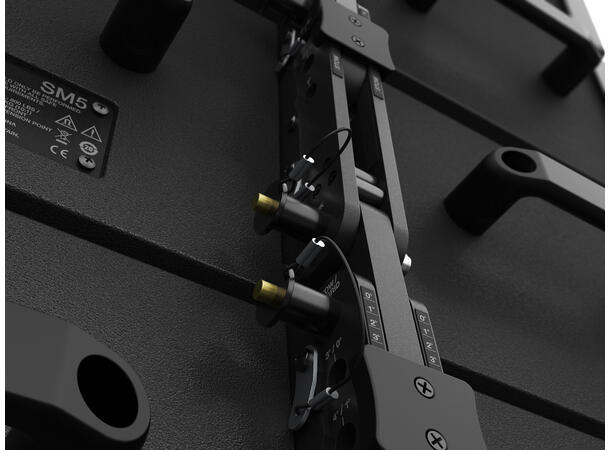

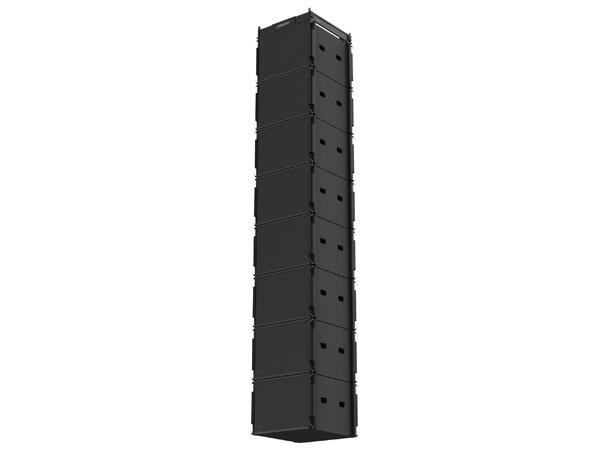

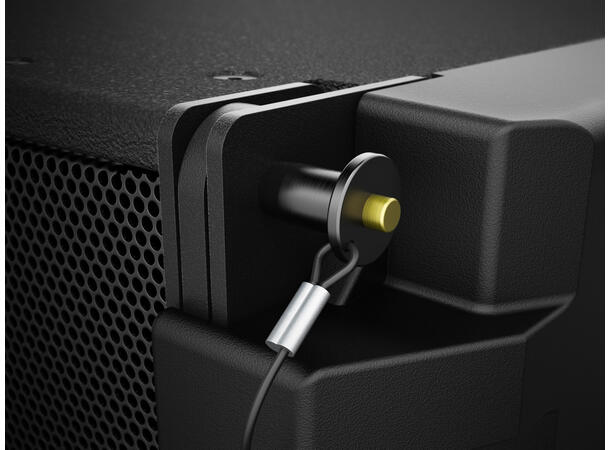

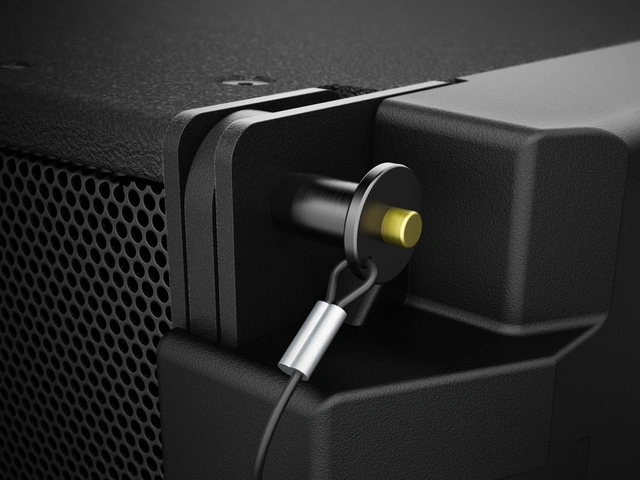

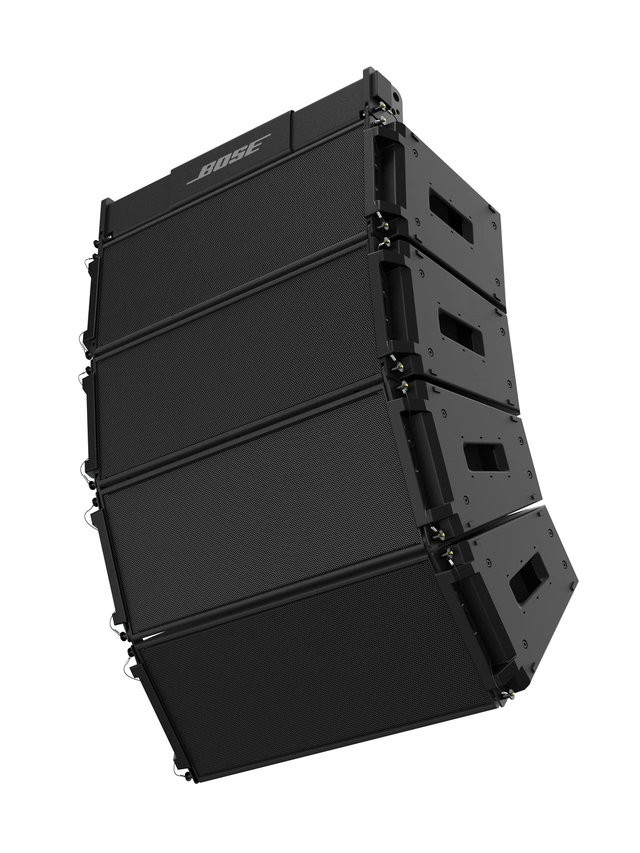

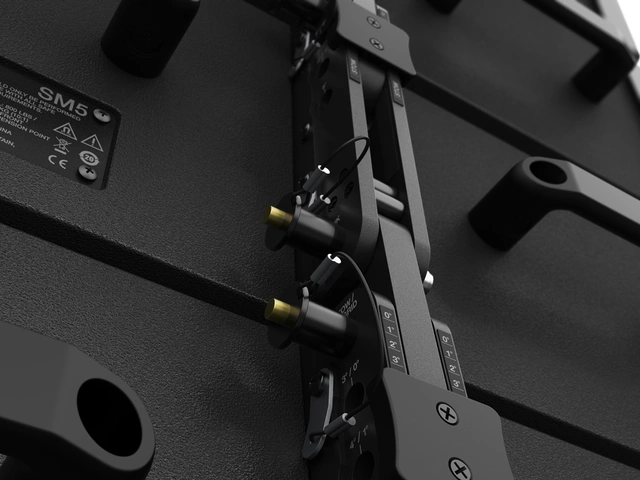

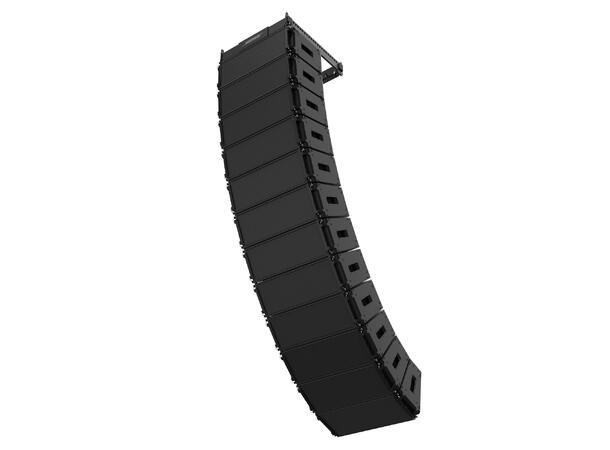

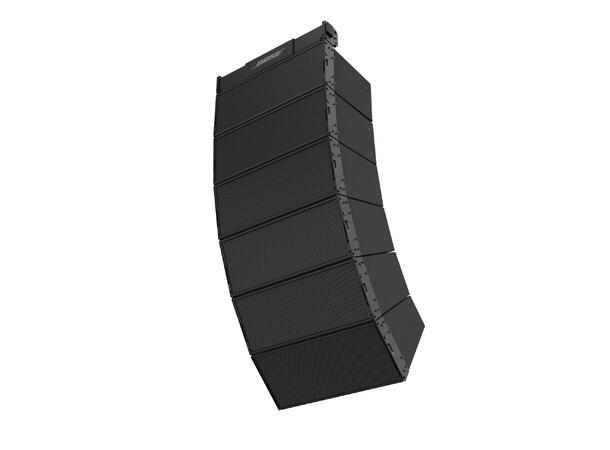

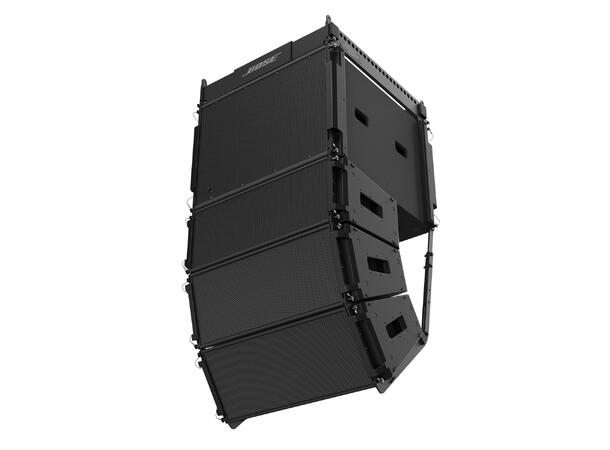

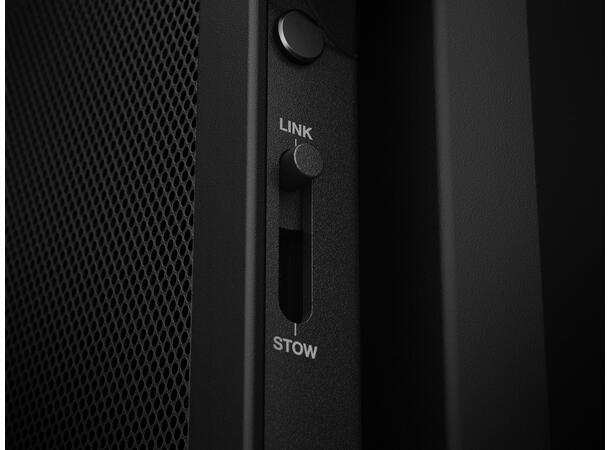

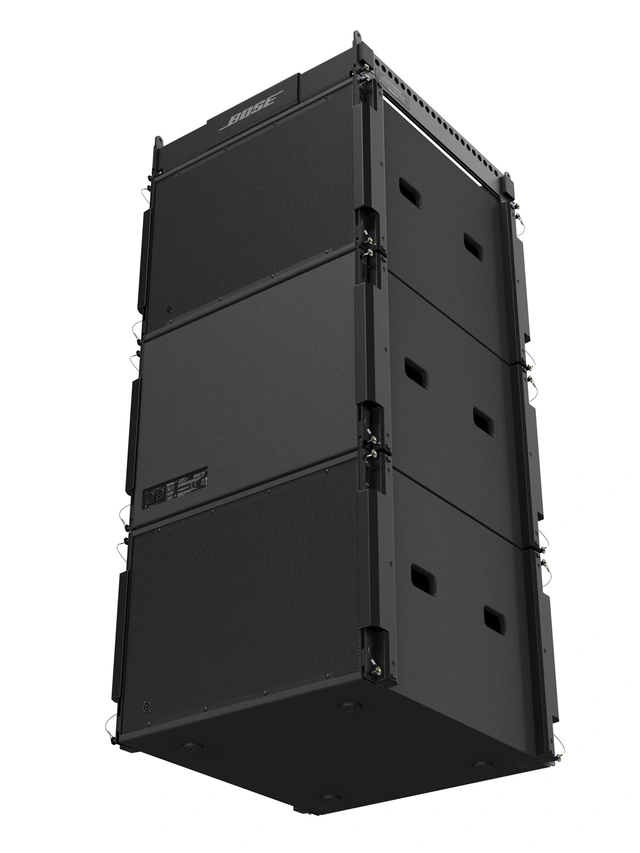

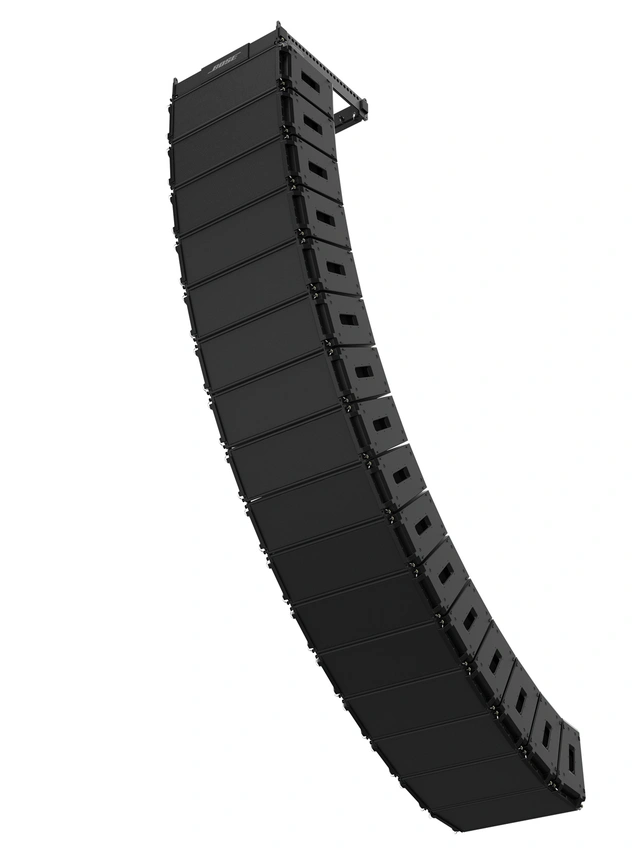

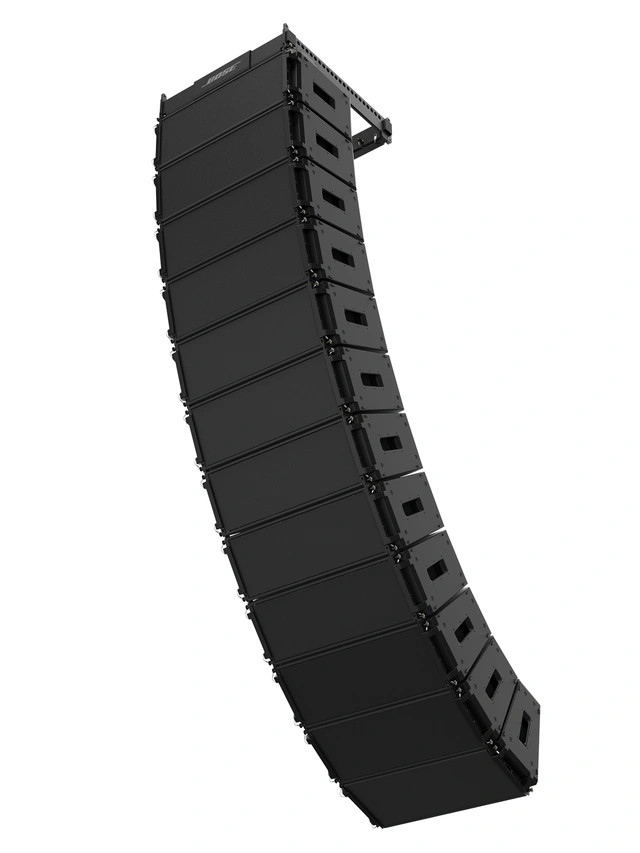

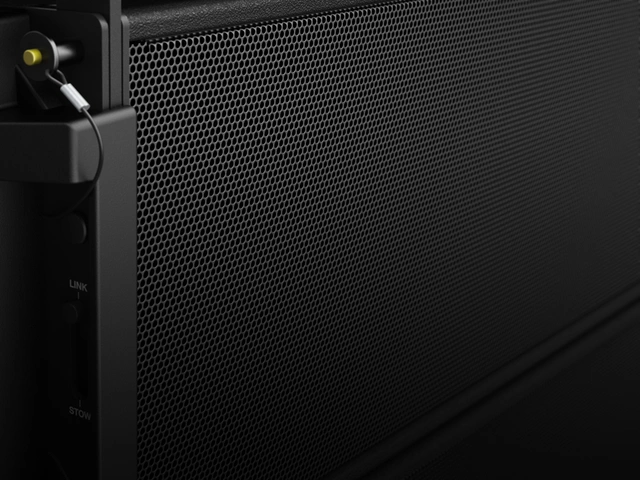

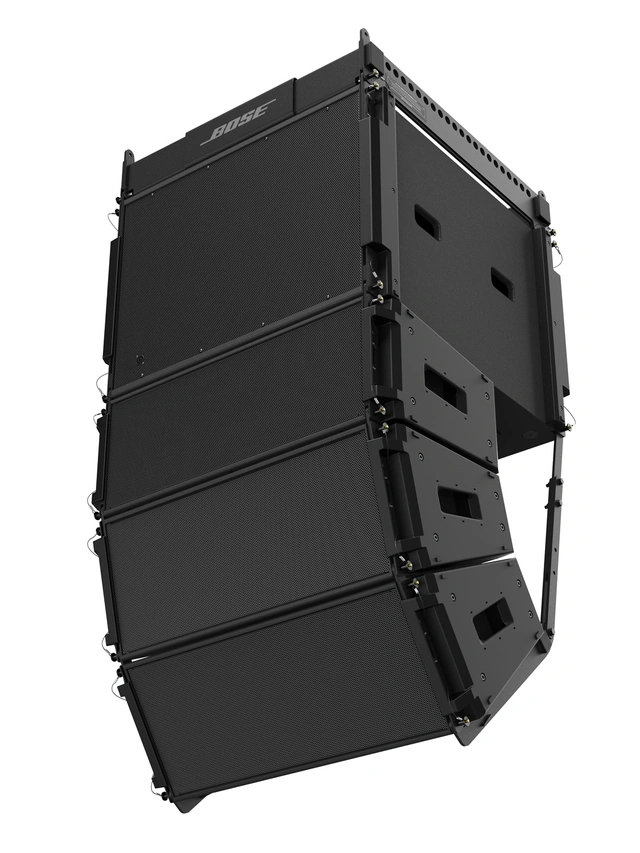

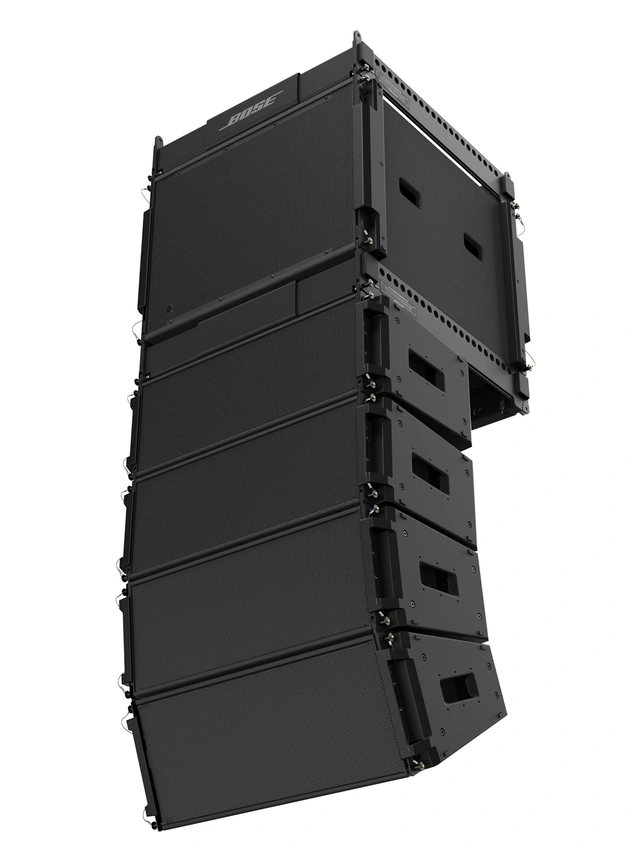

• 3-point “quick pin” rigging — Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.

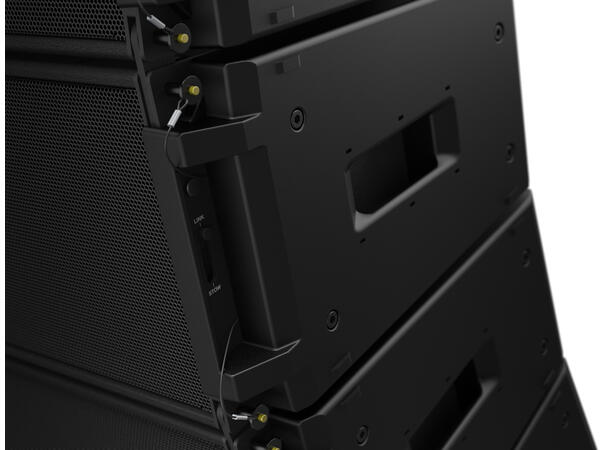

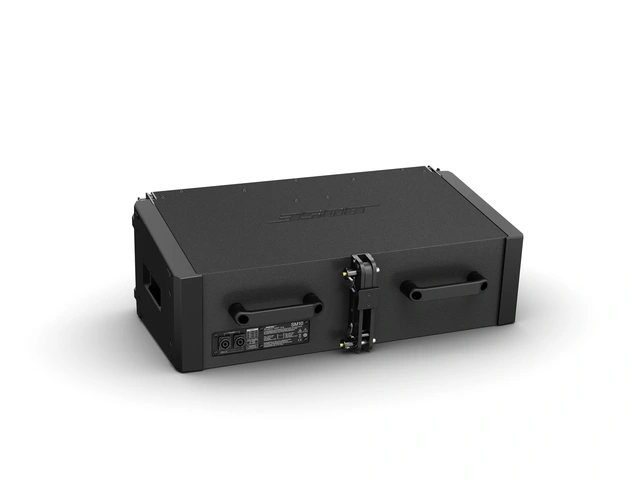

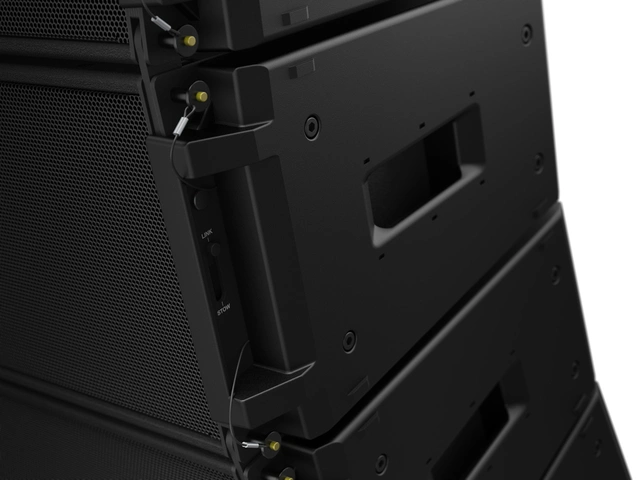

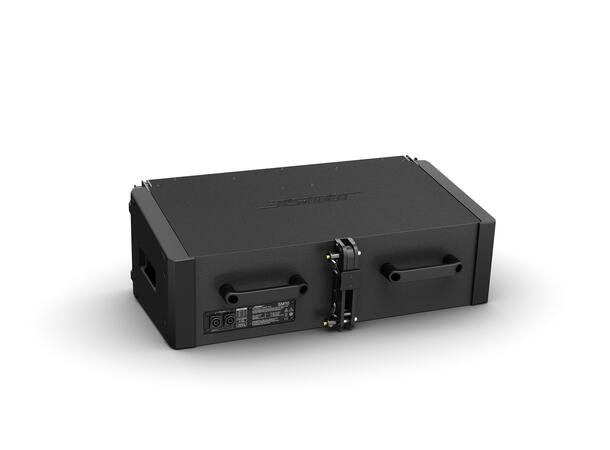

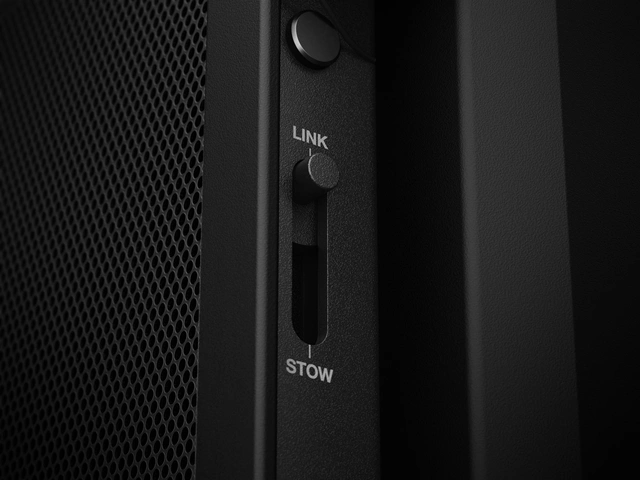

• Removable side rigging-guard/handles — provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.

Applications

Designed for a wide range of applications, including:

• Theaters
• Houses of worship
• Auditoriums
• Performing arts venues
• Arenas

SPECS

Technical Specification

• EN 54-24 Certified

• No

• Colors

• Black

• Enclosure Material

• Baltic birch plywood

• Grille

• 16-gauge (1.5 mm) perforated steel, powder-coated finish

• Suspension/Mounting

• 3-point quick-pin rigging

• Product Dimensions (H×W×D)

• 11.1 in × 31.2 in × 18.3 in (282 mm × 793 mm × 465 mm)

• Net Weight

• 65.5 lb (29.7 kg)

• Frequency Range (-10 dB)

• 59 Hz – 18,000 Hz

• Coverage, Horizontal

• 100°

• Calculated Maximum SPL @ 1 m

• 121 dB (low frequency), 126 dB (high frequency) continuous / 127 dB (low frequency), 132 dB (high frequency) peak

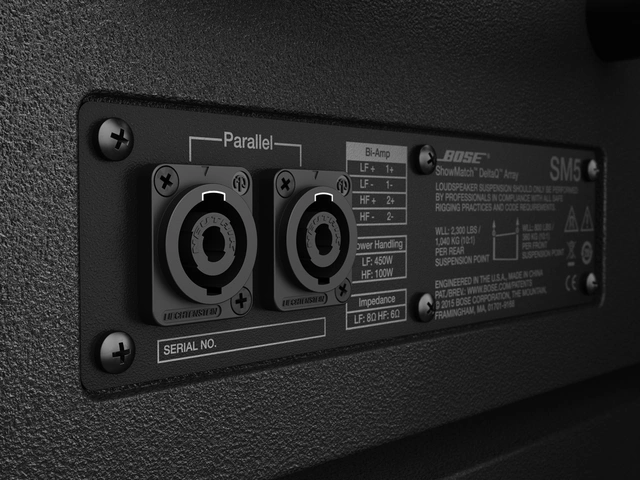

• Nominal Impedance

• 8 O (low frequency) + 6 O (high frequency)

• Power Handling, long-term continuous

• 450 W (low frequency), 100 W (high frequency)

• Power Handling, Peak

• 1800 W (low frequency), 400 W (high frequency)

• Sensitivity (SPL/1 W at 1 m)

• 94 dB (low frequency), 106 dB (high frequency)

• Coverage, Vertical

• 10°

• Crossover

• 750 Hz, acoustic, requires active 2-way crossover in DSP

• High-Frequency

• 4 × Bose Professional EMB2S extended-high frequency neodymium compression driver, 2 in (51 mm) voice coil

• Low-Frequency

• 2 × Bose Professional SM8 neodymium 8 in (203 mm) woofers, 3 in (76 mm) voice coil

Mechanical Diagrams

Product codes

• 730999-8850
• ShowMatch SM10

Warranty Period

• 5 years

Included in Packaging

• (1) ShowMatch SM10 module

• (2) 70° waveguide panels

• (1) installation guide

DOWNLOADS

• Technical Data Sheet

• Modeler

• Installation Guide

• CAD Files

• ARCHICAD Files

• Revit Files

• EASE GLLs 1.5

• ShowMatch Preset Library 1.0 for Powersoft Armonia DSP

• Declaration of Conformity

• Packaging Material Information

• Product Image Files
