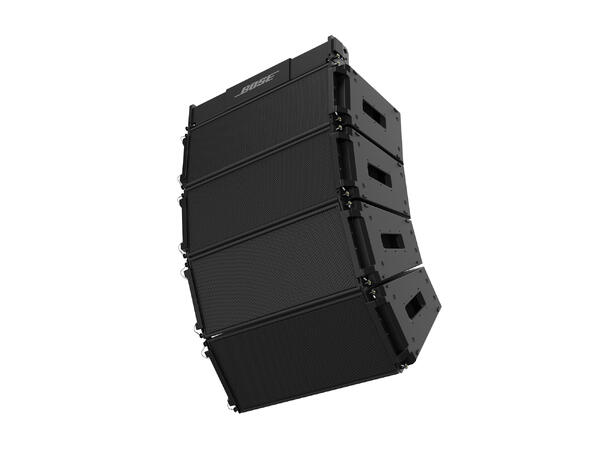

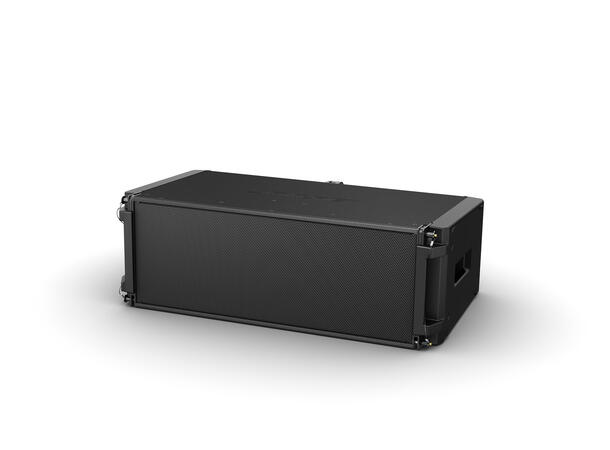

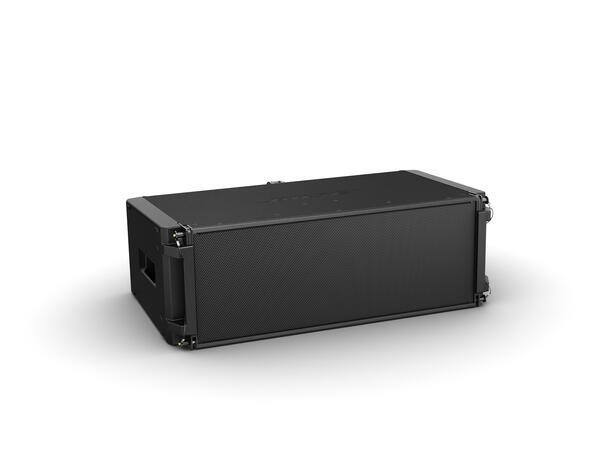

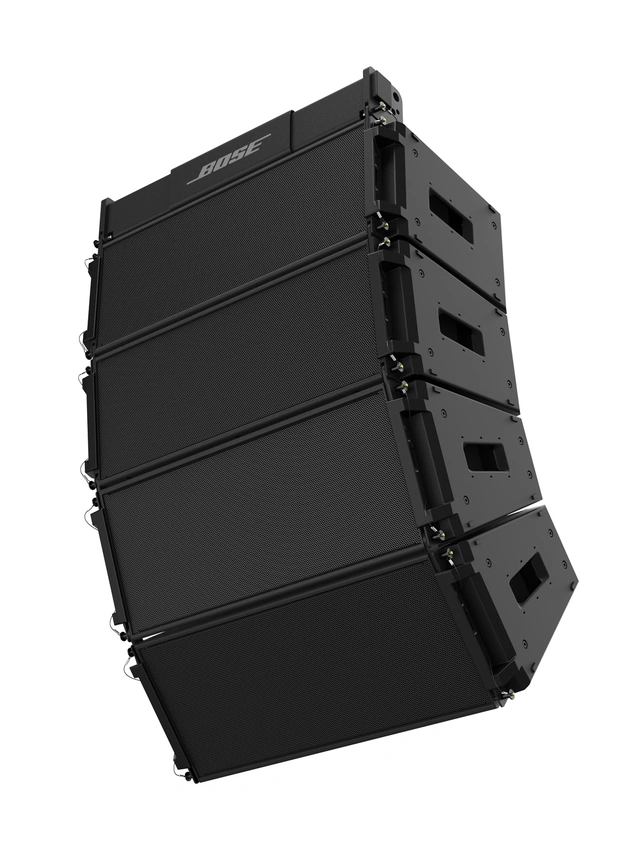

BOSE SHOWMATCH SM5

DELTAQ ARRAY LOUDSPEAKER

Varenr: 730999-5540

eks. mva

Beskrivelse
Dokumenter

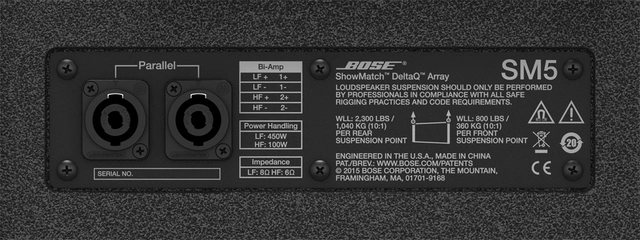

Bose Professional ShowMatch DeltaQ SM5 full-range array modules provide 5° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage with optional accessory 55° waveguides. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.

FEATURES

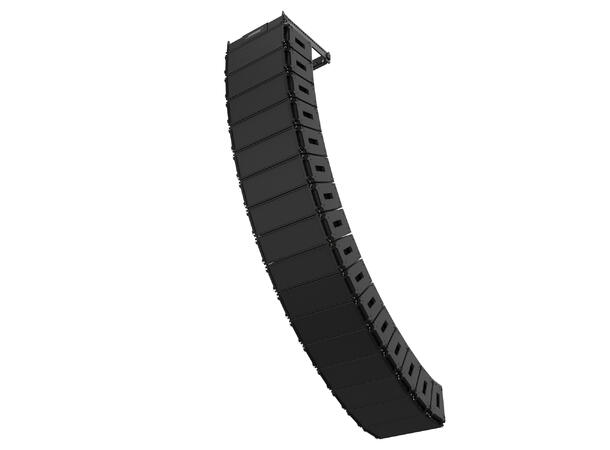

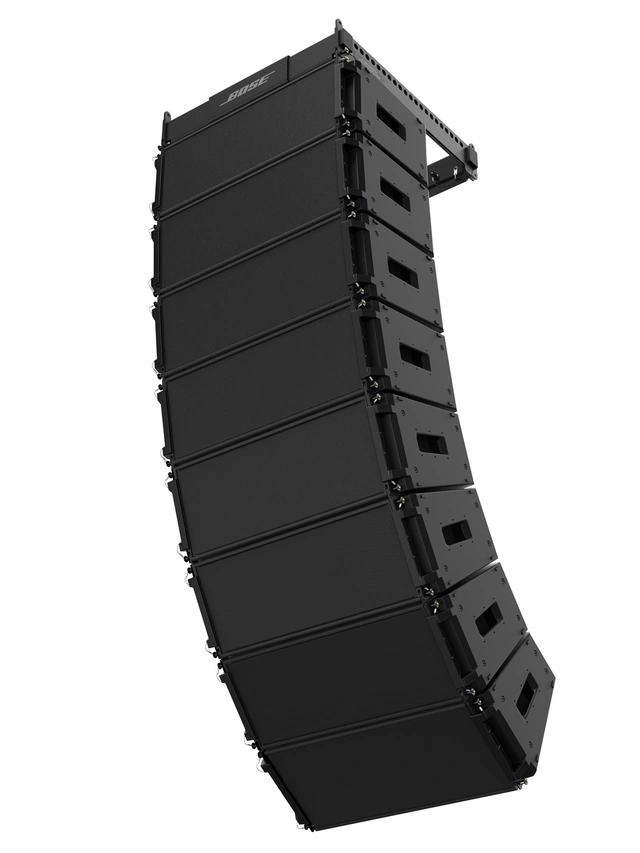

DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

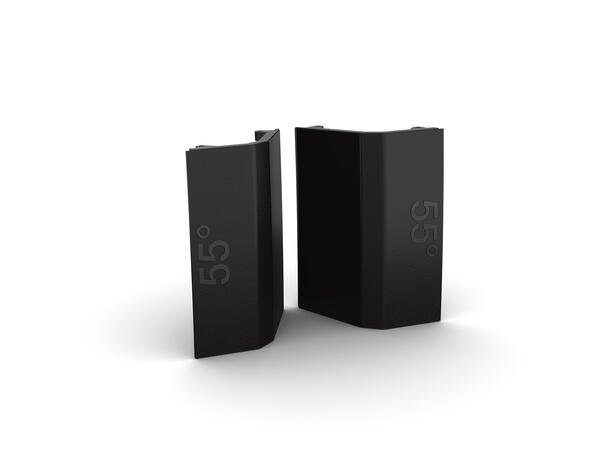

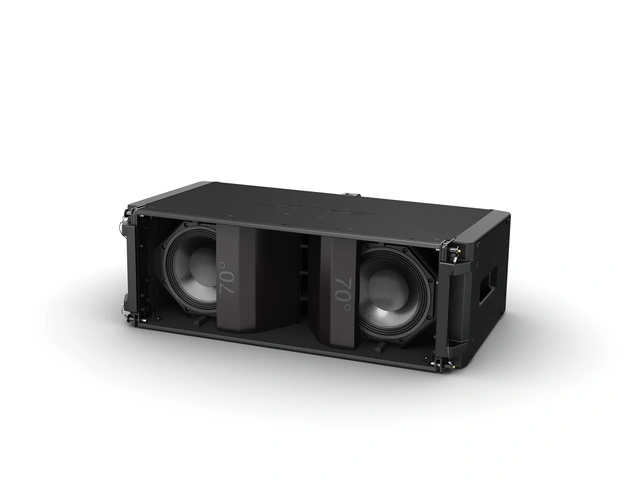

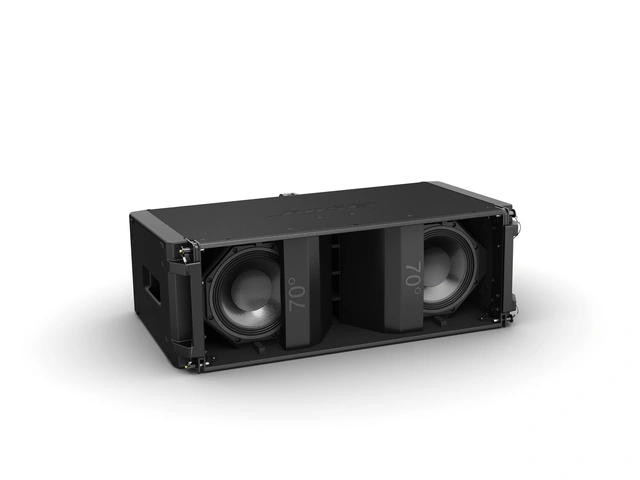

Changeable waveguides — includes both 70° and 100° waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55° waveguides for SM5.

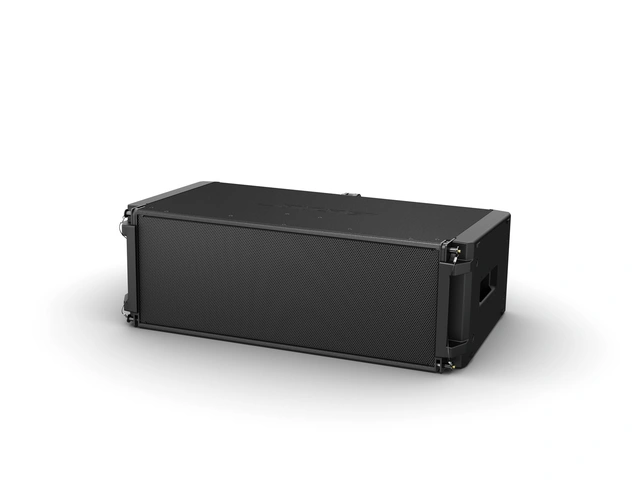

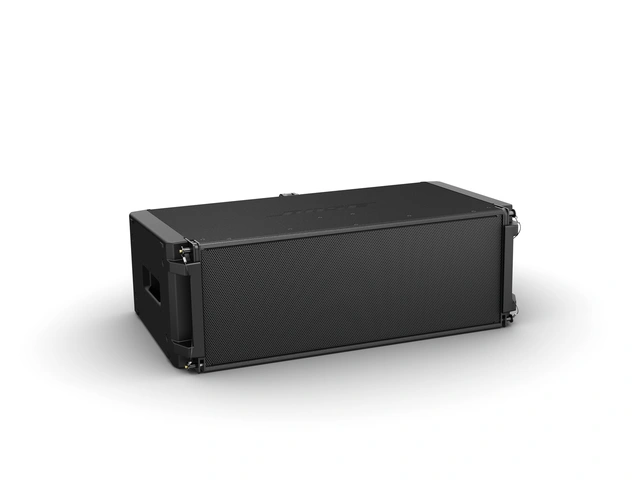

Compact, portable enclosure — Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
Tour-sound output level — 4 × Bose Professional EMB2S compression drivers, improved with more high-frequency output, and 2 × 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.

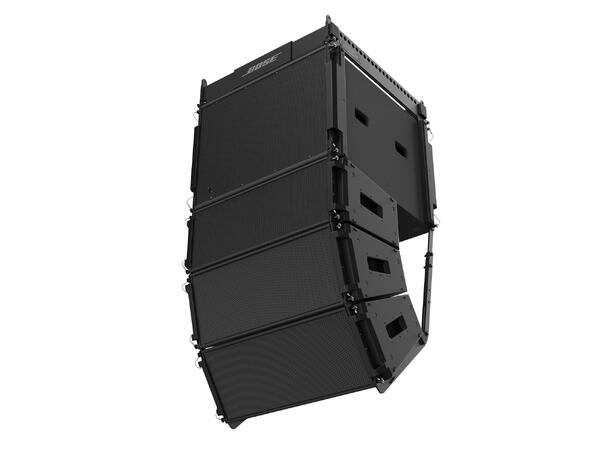

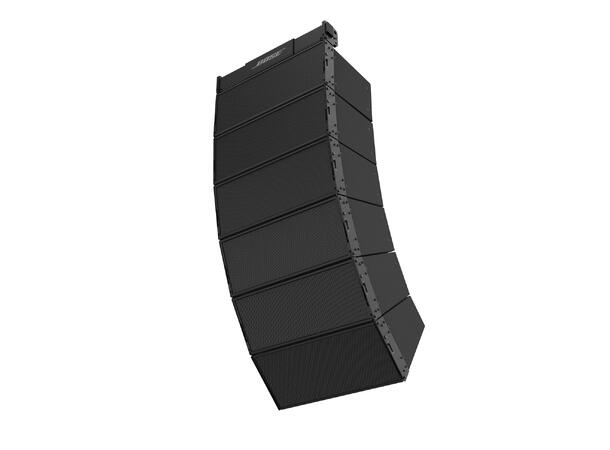

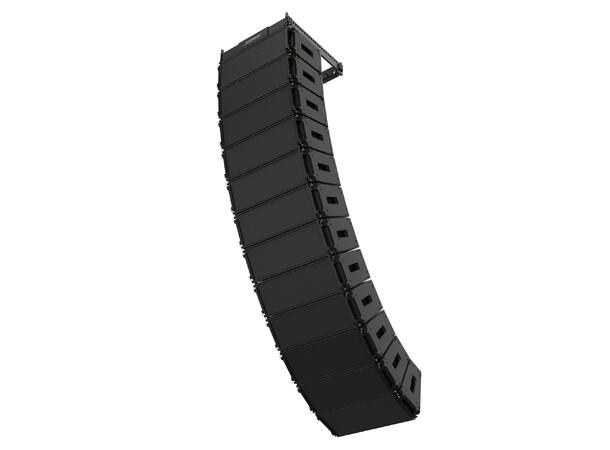

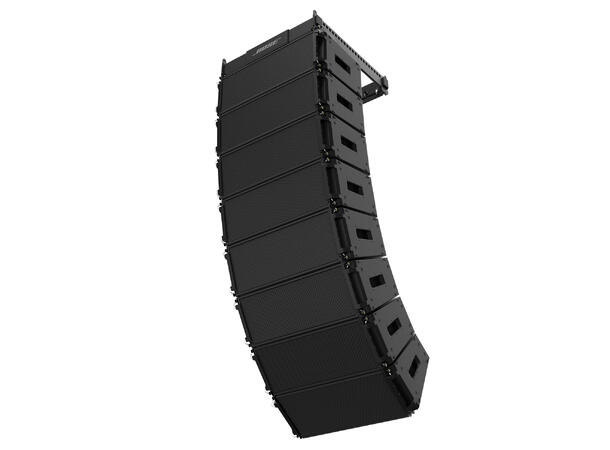

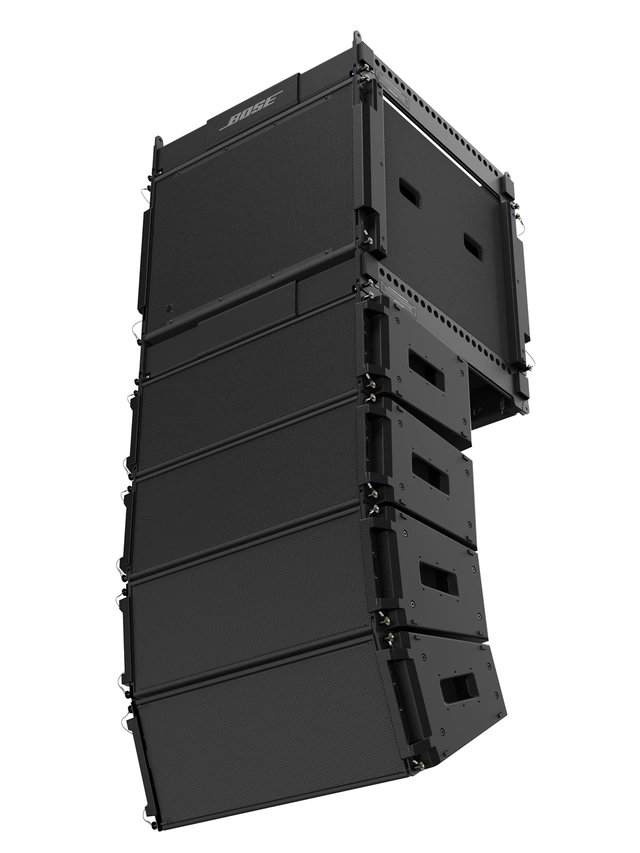

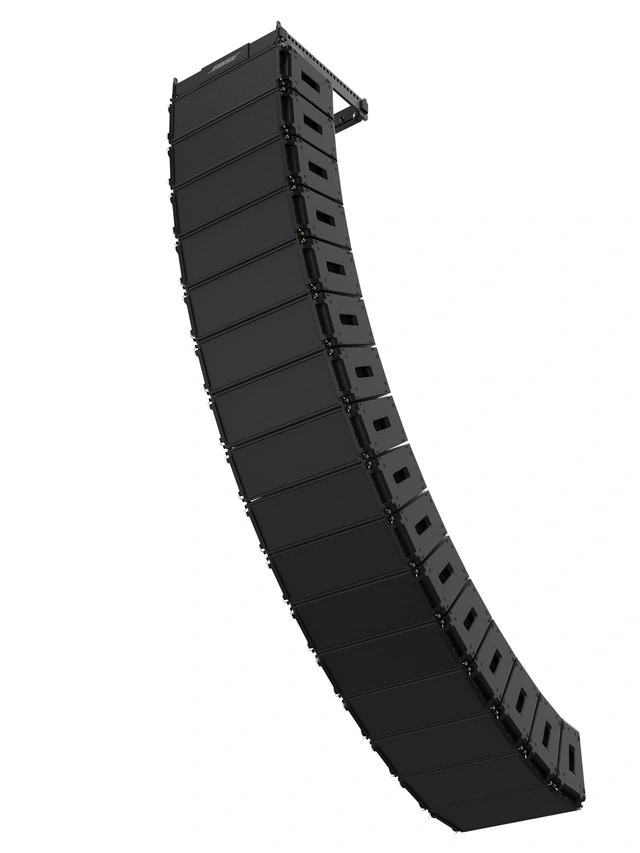

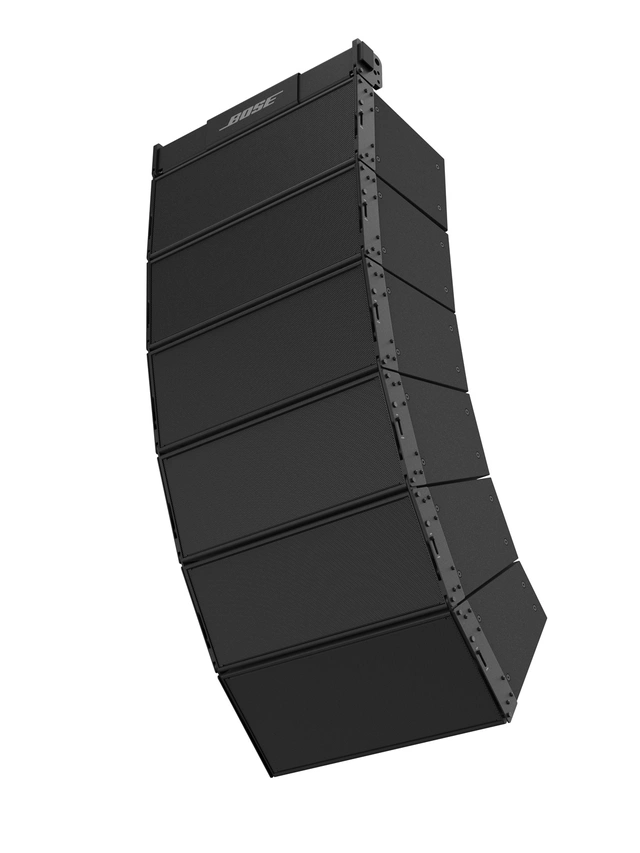

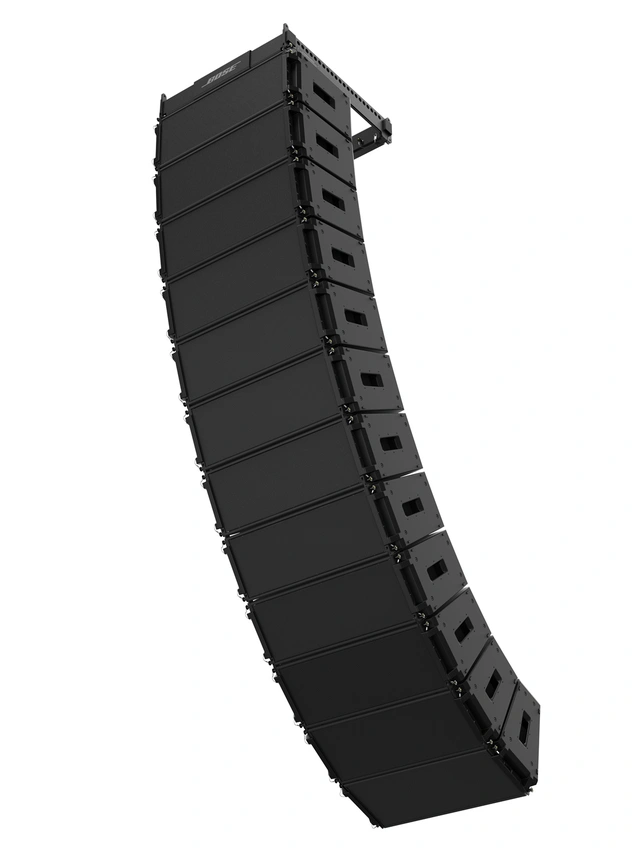

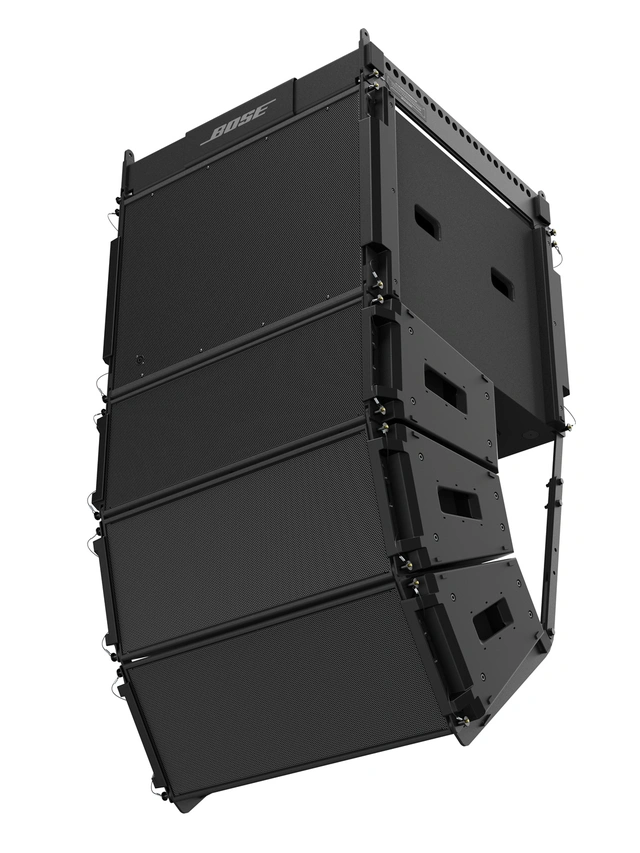

3-point “quick pin” rigging — Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.

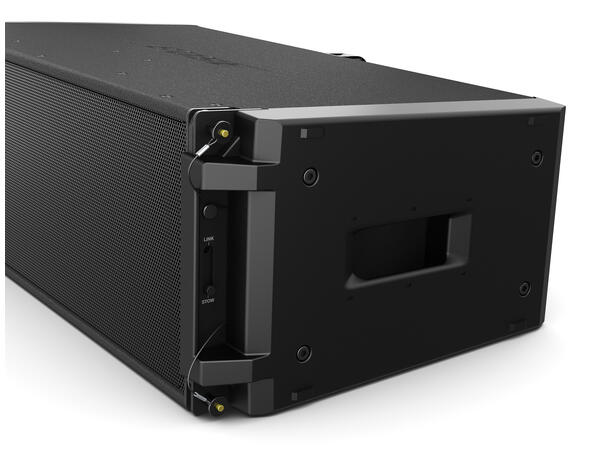

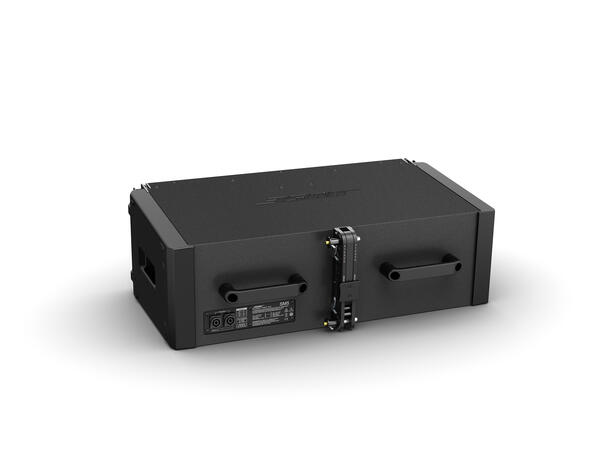

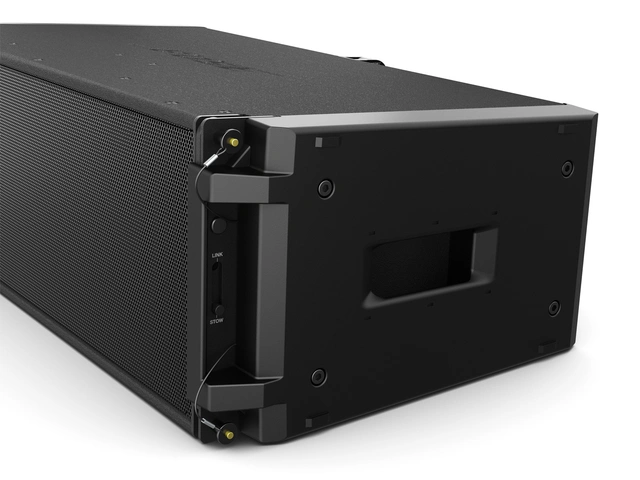

Removable side rigging-guard/handles — provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.
Rigging overlap angle adjustment — only on SM5 modules, coverage overlap or “splay” can be adjusted from 0° to 5°, in 1° increments, to provide long throw distance and high SPL.
