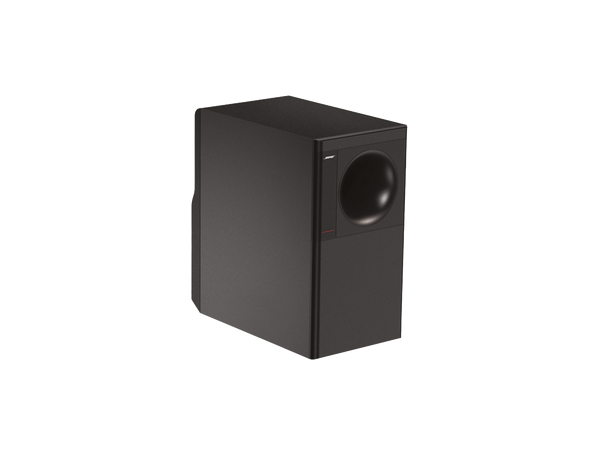

BOSE FREESPACE 3

Designed to provide surface-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

For indoor applications only.

FEATURES

• Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications.

• Acoustimass speaker technology filters out audible distortion to deliver non-localized bass

• Designed to work with the FreeSpace 3 surface and flush satellite speakers, or existing systems where additional bass reinforcement is desired

• Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module

• Selectable 70/100V or low impedance

Applications

Designed for a wide range of applications, including:

• Retail stores
• Restaurants and bars
• Lobbies and conference rooms

SPECS

Technical Specification

• EN 54-24 Certified

• No

• Colors

• Black, white

• Enclosure Material

• High-density wood composite with solid color PVC laminate

• Environmental

• Indoor only

• Suspension/Mounting

• Wall-mount bracket, preattached

• Product Dimensions (H×W×D)

• 14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)

• Net Weight

• 17.5 lb (7.9 kg)

• Shipping Weight

• 25.0 lb (11.3 kg)

• Frequency Range (-10 dB)

• 40 Hz – 315 Hz

• Coverage, Horizontal

• Omnidirectional below 200 Hz

• Calculated Maximum SPL @ 1 m

• Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak

• Nominal Impedance

• 5 O mono direct (transformer bypassed)

• Power Handling, long-term continuous

• 70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono

• Power Handling, Peak

• 70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono

• Recommended Signal Processing

• Recommended

• Sensitivity (SPL/1 W at 1 m)

• Per channel: 76 dB / Mono: 79 dB

• Transformer Taps, 100V

• 25 W, 50 W, 100 W, 200 W

• Transformer Taps, 70V

• 25 W, 50 W, 100 W, 200 W

• Coverage, Vertical

• Omnidirectional below 200 Hz

• Driver Protection

• Recommended high-pass filter 40 Hz high-pass filter

• Low-Frequency

• 5.25 in (133 mm) dual-voice-coil low-frequency driver

Mechanical Diagrams

Product codes

• 040146
• Black

• 040145
• White

Warranty Period

• 5 years

Included in Packaging

• (1) installation guide

• (1) FreeSpace 3 Series I Acoustimass bass module

• (1) mounting bracket

• (1) wiring panel cover
