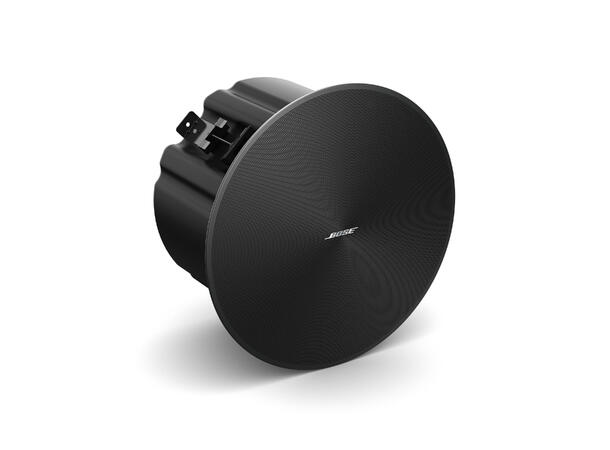

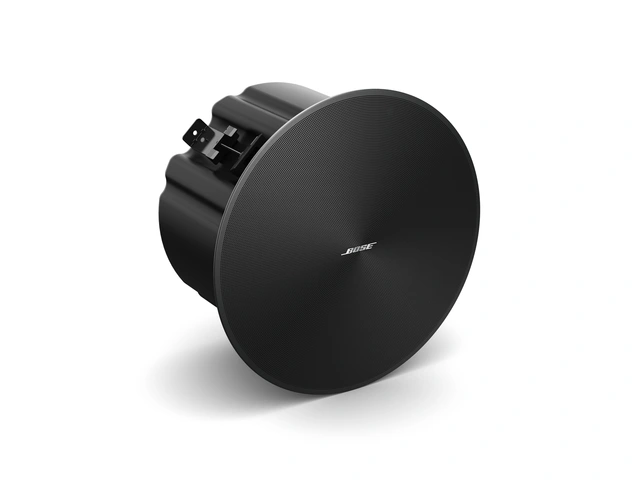

BOSE DESIGNMAX DM8C

SINGLE BLK

Varenr: 802080-0110

eks. mva

Beskrivelse
Dokumenter

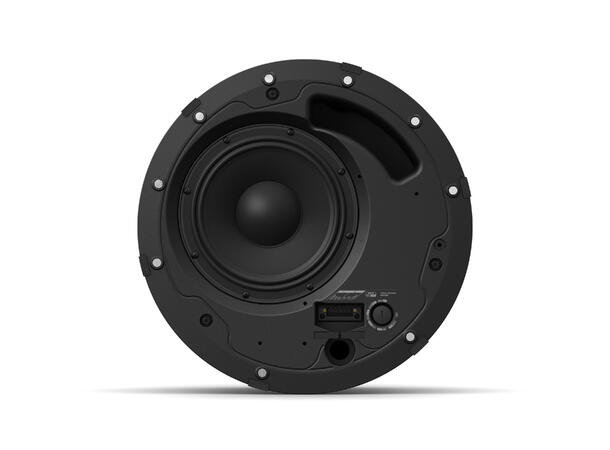

With coaxial two-way drivers, the 150-watt Bose Professional DesignMax DM8C loudspeaker delivers powerful SPL suitable for foreground music — along with premium aesthetics that complement any commercial sound installation. The DM8C features a two-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, delivering a 52 Hz – 20 kHz frequency range. The in-ceiling DM8C is installed easily via QuickHold mounting arms.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourse, and convention centers

Applications

Designed for a wide range of applications, including:

Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

SPECS

Technical Specification

COMPLIANCE

Safety Agency Ratings
UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL

Colors

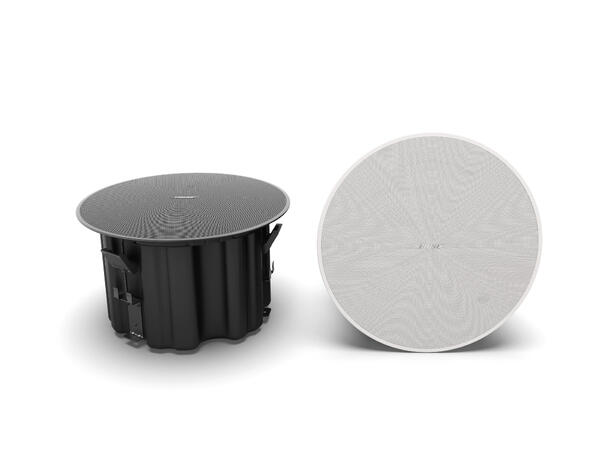

Black (RAL 9005), white (RAL 9003), paintable

Enclosure Material

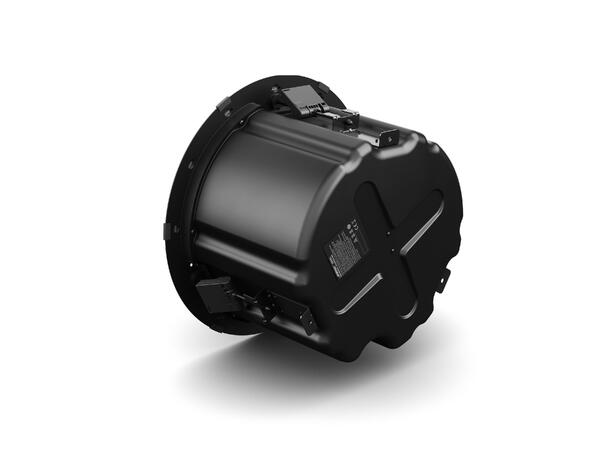

Engineered-plastics front baffle with integrated steel-formed backcan

Environmental
Indoor only

Grille

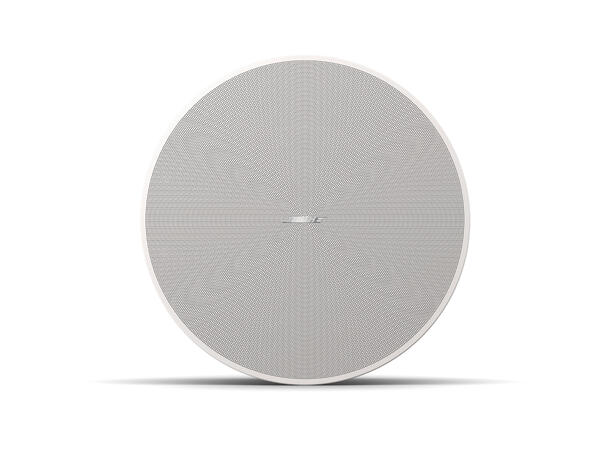

Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether

Ceiling Cutout
13.8 in (349 mm)

Logo
Rotatable, removable

Suspension/Mounting

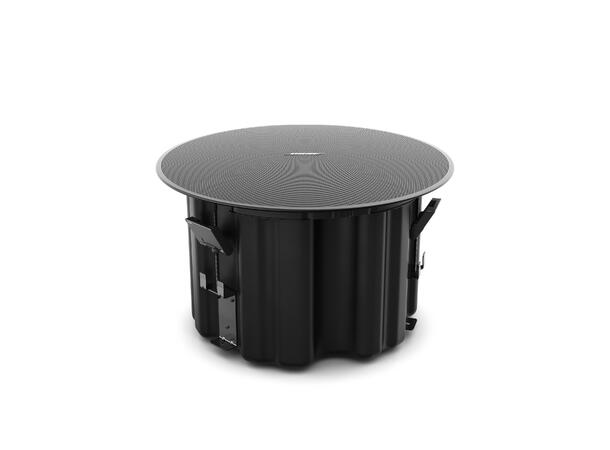

(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points

Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)

Product Dimensions (H×W×D)
16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth

Net Weight

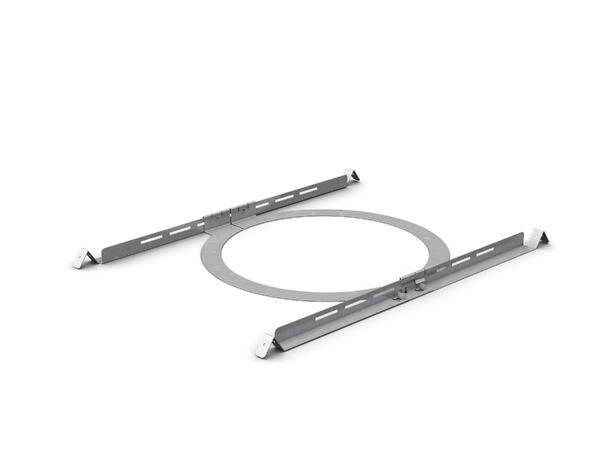

21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge

Shipping Weight
28.0 lb (12.7 kg), single

PERFORMANCE

Frequency Range (-10 dB)
52 Hz – 20,000 Hz

Coverage, Horizontal
135° conical

Calculated Maximum SPL @ 1 m
113 dB

Nominal Impedance
8 O (transformer bypass)

Power Handling, long-term continuous
150 W

Power Handling, Peak
600 W

Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available

Sensitivity (SPL/1 W at 1 m)
91 dB

Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass

Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass

Coverage, Vertical
135° conical

TRANSDUCERS

Crossover
1.5 kHz, passive 2-way crossover

Driver Protection
Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset
