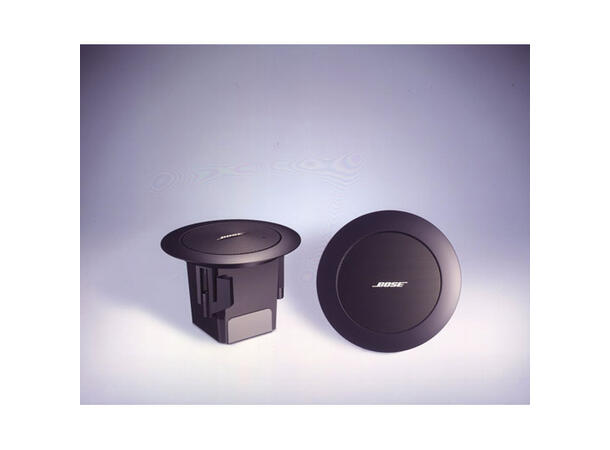

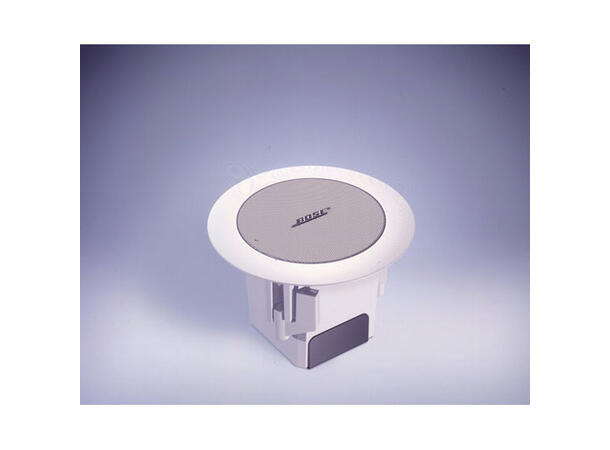

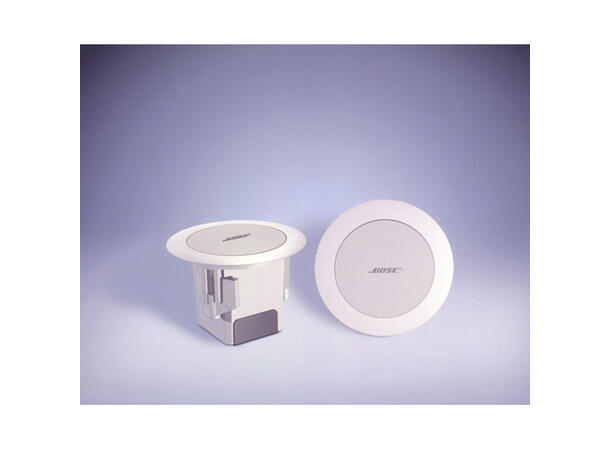

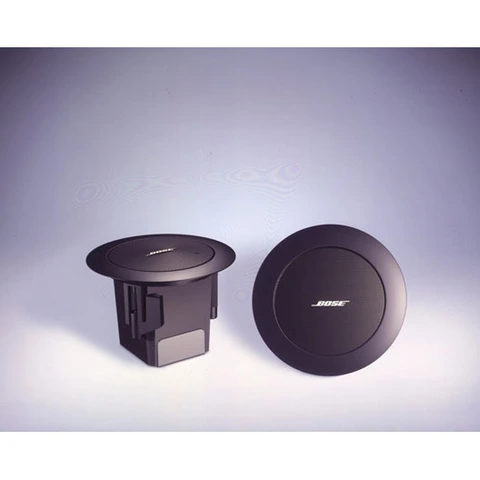

BOSE FREESPACE 3

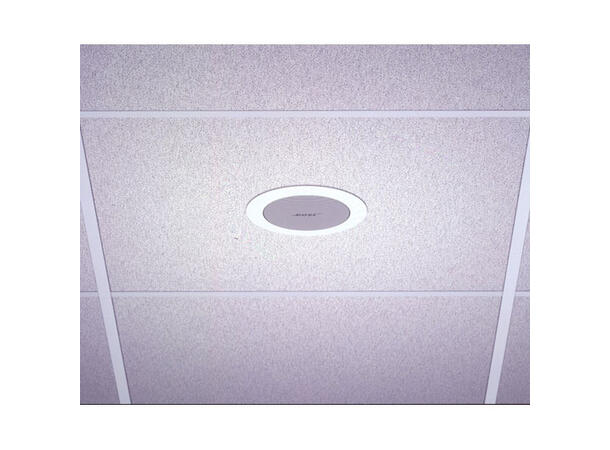

The Bose Professional FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

FEATURES

• Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

• Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules

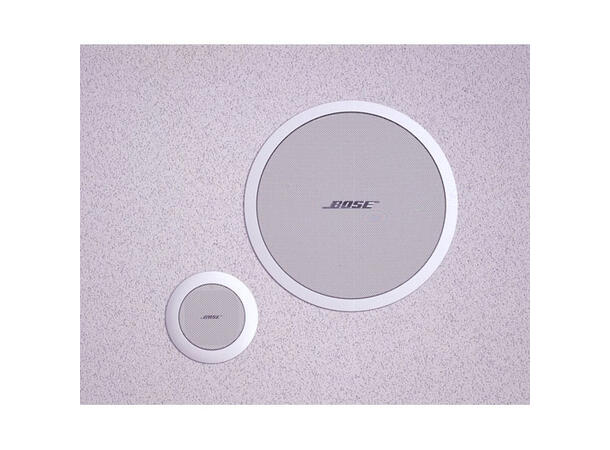

• Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

• Flush-mount components are plenum rated when used with the optional plenum cover

• Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module

• Can be configured for stereo or mono operation

Applications

Designed for a wide range of applications, including:

• Retail stores
• Restaurants and bars
• Lobbies and conference rooms

SPECS

Technical Specification

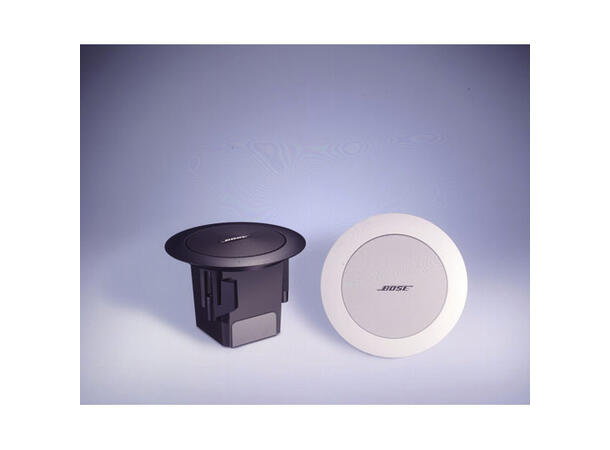

• Colors

• Black, white

• Enclosure Material

• PC/ABS

• Environmental

• Indoor only

• Grille

• Expanded metal

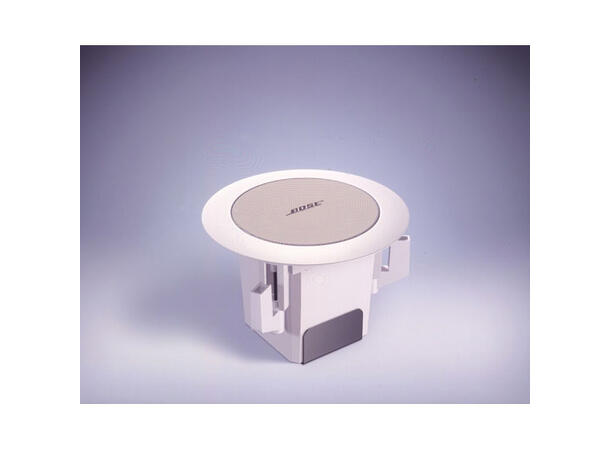

• Suspension/Mounting

• (3) mounting arms, (1) seismic chain/safety cable attachment point

• Product Dimensions (H×W×D)

• 6.2 in × 4.8 in (157 mm × 123 mm), loudspeaker diameter × depth / 5.0 in (127 mm), ceiling hole diameter

• Net Weight

• 1.9 lb (0.9 kg)

• Shipping Weight

• 5.0 lb (2.3 kg)

• Frequency Range (-10 dB)

• 170 Hz – 20,000 Hz

• Coverage, Horizontal

• 170° conical

• Calculated Maximum SPL @ 1 m

• Pink noise: 95 dB continuous, 101 dB peak / IEC noise: 92 dB continuous, 108 dB peak

• Nominal Impedance

• 6 O

• Power Handling, long-term continuous

• 12 W

• Power Handling, Peak

• 48 W

• Recommended Signal Processing

• Recommended

• Sensitivity (SPL/1 W at 1 m)

• 84 dB

• Transformer Taps, 100V

• N/A

• Transformer Taps, 70V

• N/A

• Coverage, Vertical

• 170° conical

• Low-Frequency

• 1 × 2.5 in (64 mm) full-range driver per satellite

Mechanical Diagrams

Product codes

• 040150 - pair
• Black

• 040149 - pair
• White
