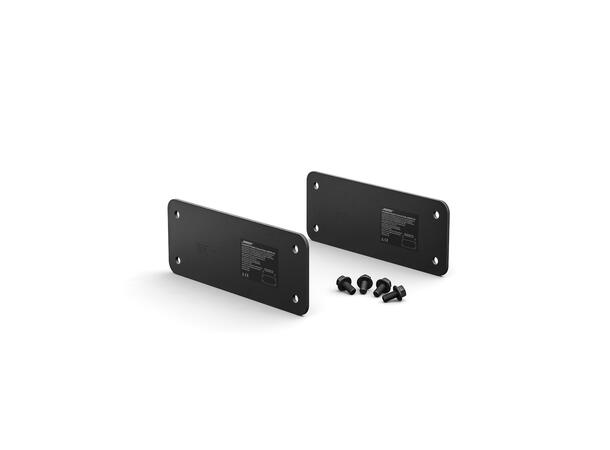

BOSE ARENAMATCH AMMCPLAT

Bose Professional ArenaMatch array rigging accessories are designed for use with ArenaMatch DeltaQ Array loudspeakers (AM10, AM20, and AM40) only. All accessory kits are shipped in pairs and include all required fasteners. The module connect plate secures two ArenaMatch loudspeaker modules together.

SPECS

Technical Specification

• Working Load Limit (WLL)

• 800 lb (360 kg), each side, single point, front & rear rigging

• Colors

• Black

• Product Dimensions (H×W×D)

• 5.2 in × 13.7 in (131 mm × 347 mm)

• Net Weight

• 9.7 lb (4.4 kg)

Product codes

• 807140-0110
• ArenaMatch AMMCPLAT

Included in Packaging

• (2) ArenaMatch AMMCPLAT plates

• (8) M12 × 30 mm screws with plastic washers

• (1) installation guide

DOWNLOADS

• Installation Guide

• CAD Files

• Product Image Files
