BOSE ARENAMATCH AMUBRKT

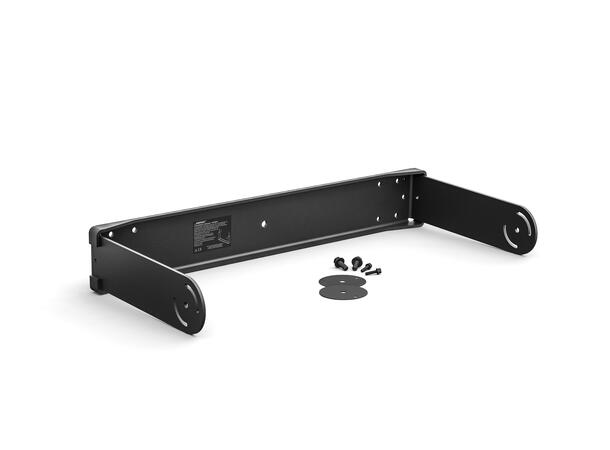

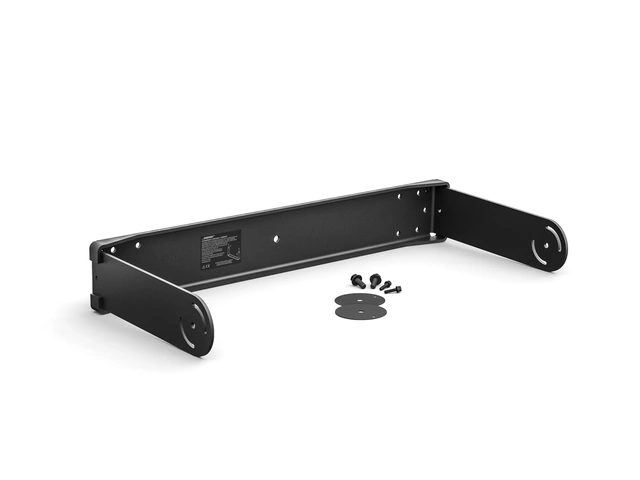

The ArenaMatch AMUBRKT U-bracket allows for versatile mounting of a single ArenaMatch loudspeaker with full 360° rotation to accommodate any installed pitch angle. The structural rigidity of the bracket allows either two-point attachment to flat surfaces such as walls or ceilings, or single- point attachment via the center mounting hole to secondary support structures such as third-party lighting-pole mounting kits. Bose Professional ArenaMatch array rigging accessories are designed for use with ArenaMatch DeltaQ Array loudspeakers (AM10, AM20, and AM40) only. All accessory kits are shipped in pairs and include all required fasteners.

SPECS

Technical Specification

• Working Load Limit (WLL)

• 85 lb (40 kg), for use with 1 ArenaMatch AM10/AM20/AM40 module

• Colors

• Black

• Product Dimensions (H×W×D)

• 4.9 in × 32.1 in × 14.8 in (126 mm × 815 mm × 375 mm)

• Net Weight

• 19.3 lb (8.8 kg)

Product codes

• 806720-0110
• ArenaMatch AMUBRKT

Included in Packaging

• (1) ArenaMatch AMUBRKT bracket

• (2) M10 × 25 mm screws

• (2) M6 × 25 mm screws

• (1) installation guide
