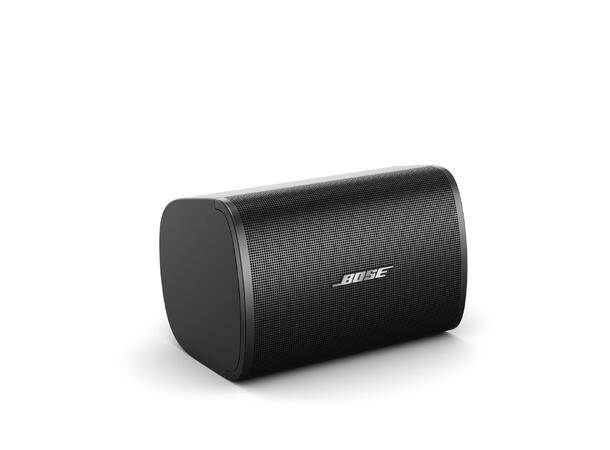

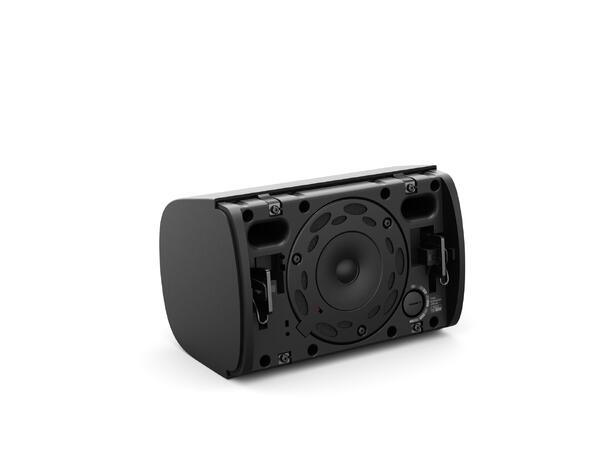

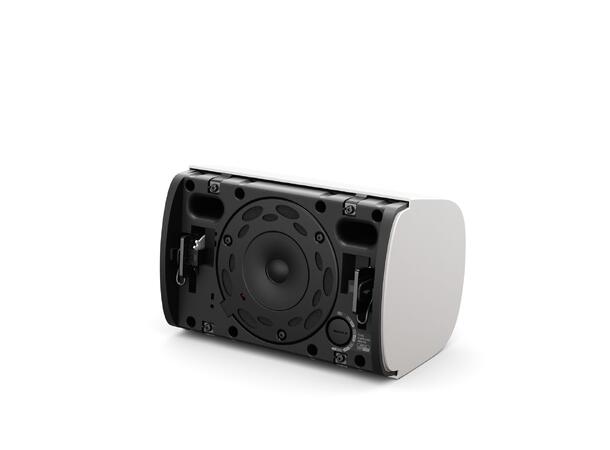

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

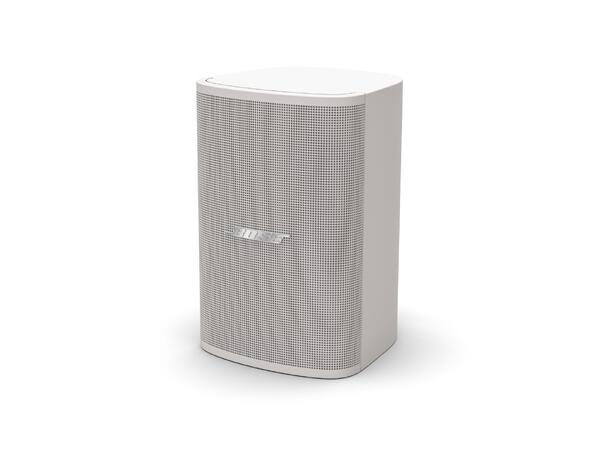

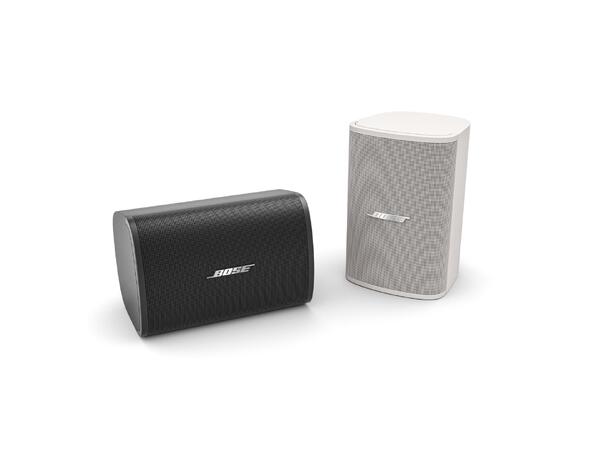

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
SPECS
Technical Specification
COMPLIANCE
PHYSICAL
Product Dimensions (H×W×D)
9.1 in × 6.1 in × 6.1 in (232 mm × 154 mm × 155 mm), loudspeaker / 9.1 in × 6.1 in × 6.7 in (232 mm × 154 mm × 171 mm), loudspeaker with bracket
Shipping Weight
16.0 lb (7.2 kg), pair
PERFORMANCE
Frequency Range (-10 dB)
75 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Nominal Impedance
8 O (transformer bypass)
Power Handling, Peak
120 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Transformer Taps, 100V
6, 12, 25 W, bypass
Transformer Taps, 70V
3 W, 6 W, 12 W, 25 W, bypass
Coverage, Vertical
140° conical
TRANSDUCERS
Product codes
- 829712-0110
- DESIGNMAX DM3SE PAIR BLK
- 829712-0210

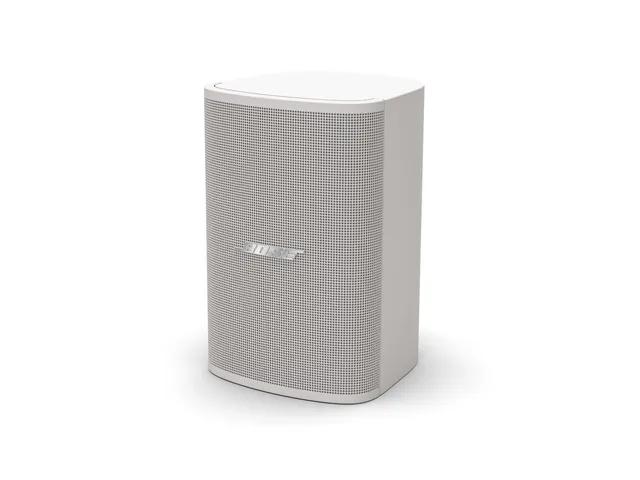

- DESIGNMAX DM3SE PAIR WHT
- DESIGNMAX DM3SE PAIR BLK (NEW)
- 829712-0120
- DESIGNMAX DM3SE PAIR WHT (NEW)
- 829712-0220
Warranty Period
Included in Packaging
IMPORTANT NOTIFICATIONS
We would like to inform our customers about recent updates to the DesignMax DM3SE, DM5SE, and DM6SE surface-mount models.
The threaded attachment points used for mounting optional accessories, such as our pan-tilt bracket, have been relocated from the back of the cabinet to the included U-bracket. This change simply requires the use of the U-bracket, as the optional mount will thread into the U-bracket, which is then attached to the loudspeaker cabinet.
Due to these changes, new SKU product codes have been introduced.
