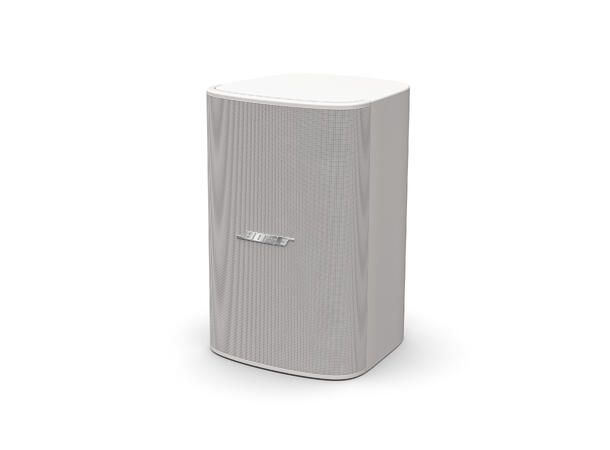

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
FEATURES

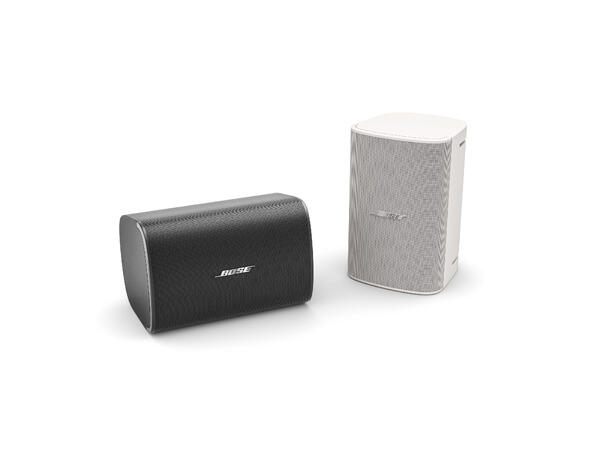

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM6SE outside — IP55 rating with standard aluminum grille for outdoor use
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
SPECS
Technical Specification
COMPLIANCE
PHYSICAL
Product Dimensions (H×W×D)
13.4 in × 8.7 in × 9.0 in (340 mm × 222 mm × 229 mm), loudspeaker / 13.4 in × 8.7 in × 9.7 in (340 mm × 222 mm × 245 mm), loudspeaker with bracket
Shipping Weight
32.5 lb (14.7 kg), pair
PERFORMANCE
Frequency Range (-10 dB)
59 Hz – 20,000 Hz
Coverage, Horizontal
125° conical
Nominal Impedance
8 O (transformer bypass)
Power Handling, Peak
500 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical
125° conical
TRANSDUCERS
Product codes
- 829682-0110

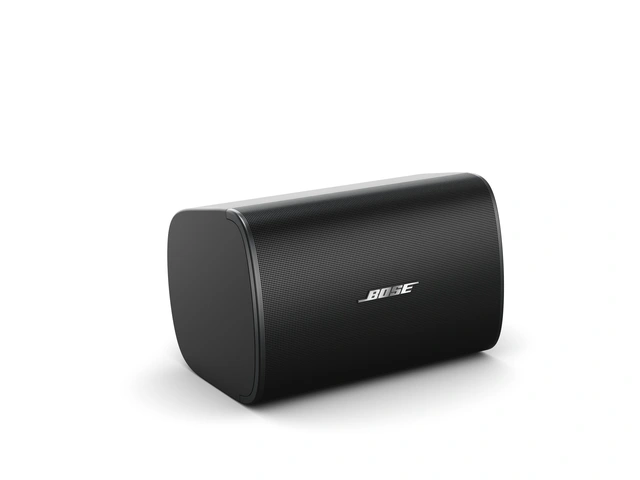

- DESIGNMAX DM6SE PAIR BLK
- 829682-0210
- DESIGNMAX DM6SE PAIR WHT
- 829682-0120
- DESIGNMAX DM6SE PAIR BLK (NEW)
- 829682-0220
- DESIGNMAX DM6 SE PAIR WHT (NEW)
Included in Packaging
(1) U-bracket
powder-coated steel
IMPORTANT NOTIFICATIONS
We would like to inform our customers about recent updates to the DesignMax DM3SE, DM5SE, and DM6SE surface-mount models.
The threaded attachment points used for mounting optional accessories, such as our pan-tilt bracket, have been relocated from the back of the cabinet to the included U-bracket. This change simply requires the use of the U-bracket, as the optional mount will thread into the U-bracket, which is then attached to the loudspeaker cabinet.
Due to these changes, new SKU product codes have been introduced.
