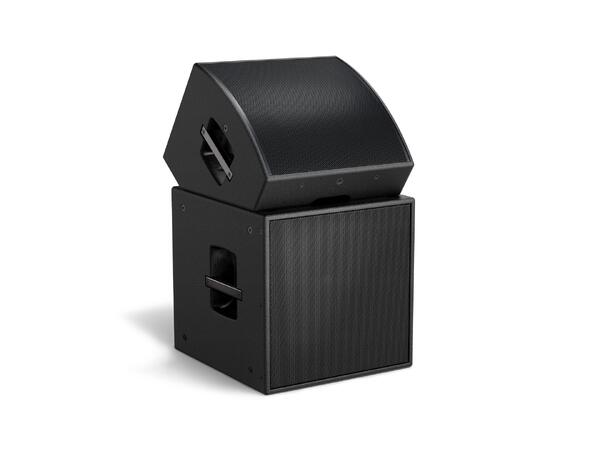

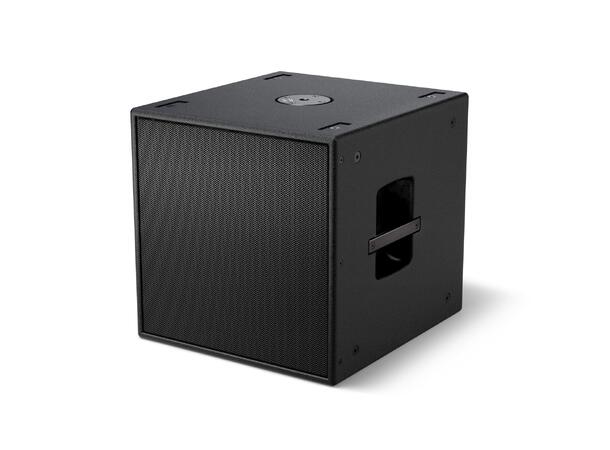

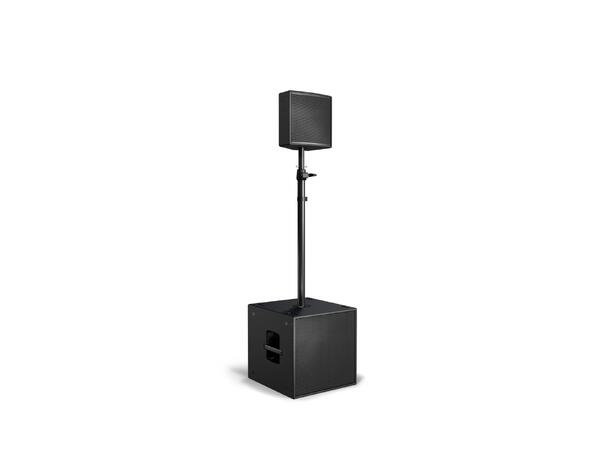

The Bose Professional AMS115 compact subwoofer features a 15-inch neodymium transducer and offers low frequency down to 35 Hz. With a lightweight enclosure, ergonomic handles, M20 threaded pole mount, and 12 M10 suspension points, this passive subwoofer is ideal for a variety of applications in portable setups or permanent installations — especially when paired with Bose Professional AMM multipurpose loudspeakers. For example, combine an AMM112 with the AMS115 subwoofer for fill applications. Or, for front-of-house applications, combine an AMM108 and AMS115 sub to give audiences an impactful, full-spectrum audio experience.

FEATURES

• Compact high-output design with a lightweight, 15-inch neodymium transducer, low frequency down to 35 Hz, and 130 dB peak output

• Direct-radiating bass reflex-tuned enclosure with large, ergonomic handles and caster mounting points

• Pair with Bose Professional PowerMatch amplifiers and ControlSpace DSP for best performance and loudspeaker protection

• Deploy easily in permanent or portable applications with 28 kg (63 lb) design featuring 12 M10 threaded inserts for suspension in permanent installations and integrated M20 threaded pole mount for use in temporary applications

SPECS

Technical Specification

• EN 54-24 Certified

• No

• Colors

• Black

• Enclosure Material

• Baltic birch plywood

• Grille

• Perforated steel, powder-coated finish

• Suspension/Mounting

• 1 × M20 threaded pole mount, 12 × M10 threaded inserts, 16 × M8 caster attachment points

• Product Dimensions (H×W×D)

• 18.5 in × 18.5 in × 20.0 in (470 mm × 470 mm × 508 mm)

• Net Weight

• 62.6 lb (28.4 kg)

• Frequency Range (-10 dB)

• 35 Hz – 130 Hz

• Coverage, Horizontal

• Omnidirectional

• Calculated Maximum SPL @ 1 m

• 117 dB (free field), 123 dB (half-space) continuous / 124 dB (free field), 130 dB (half-space) peak

• Nominal Impedance

• 8 O

• Power Handling, long-term continuous

• 500 W

• Power Handling, Peak

• 2800 W

• Sensitivity (SPL/1 W at 1 m)

• 90 dB (free field), 96 dB (half-space)

• Coverage, Vertical

• Omnidirectional

• Low-Frequency

• 1 × 15 in (381 mm) high-excursion woofer

Product codes

• 843163-0110
• AMS115

Warranty Period

• 5 years

Included in Packaging

• (1) installation guide

• (1) AMS115

DOWNLOADS

• Technical Data Sheet

• Architects' & Engineers' Specs

• AMM Speaker Modeler Update 6.11

• AMM Series Loudspeaker EQs for ControlSpace Designer (January 2023)

• Installation Guide

• CAD Files

• BIM Revit File

• GLL File

• AMM Series Loudspeaker EQs for Powersoft Armonia (January 2023)

• Declaration of Conformity

• Product Image Files
