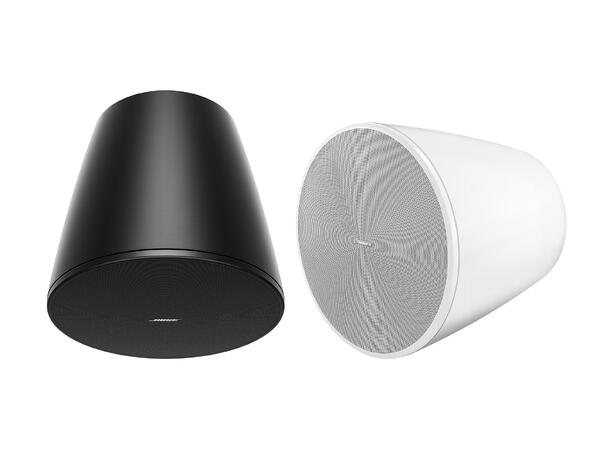

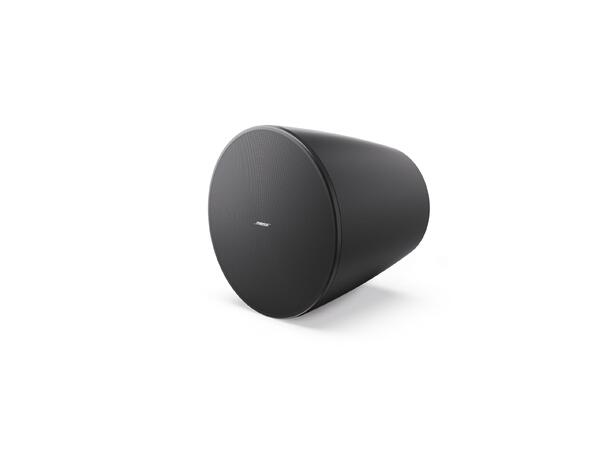

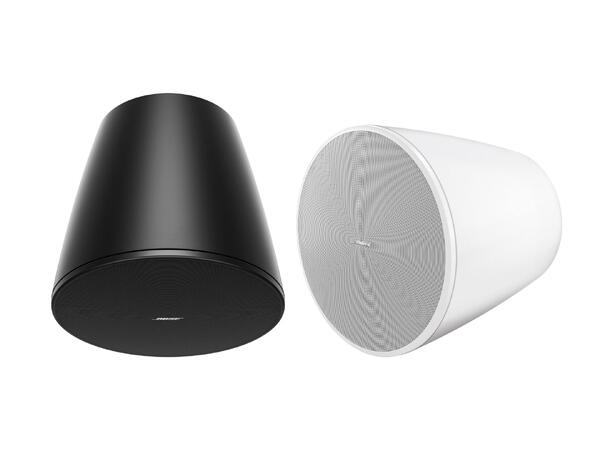

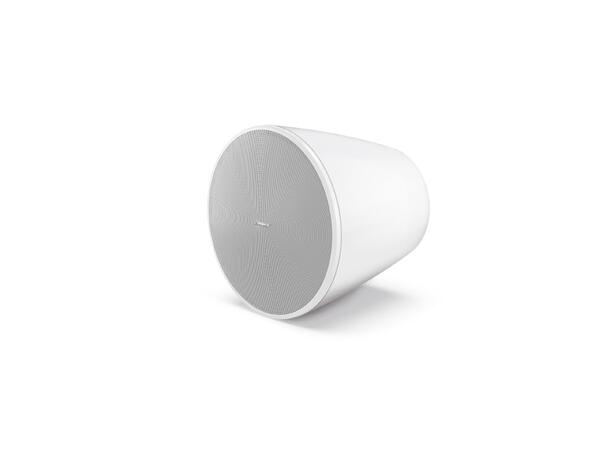

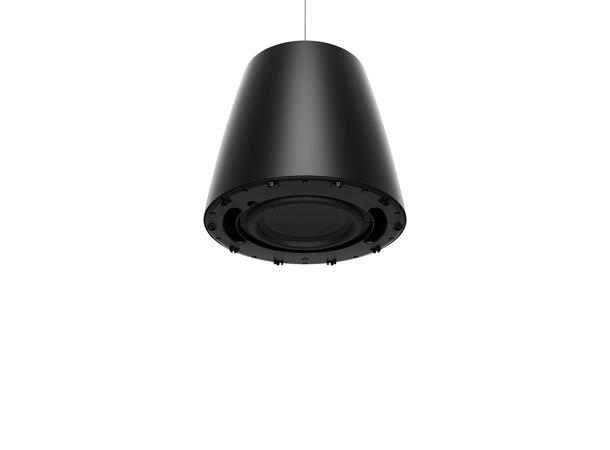

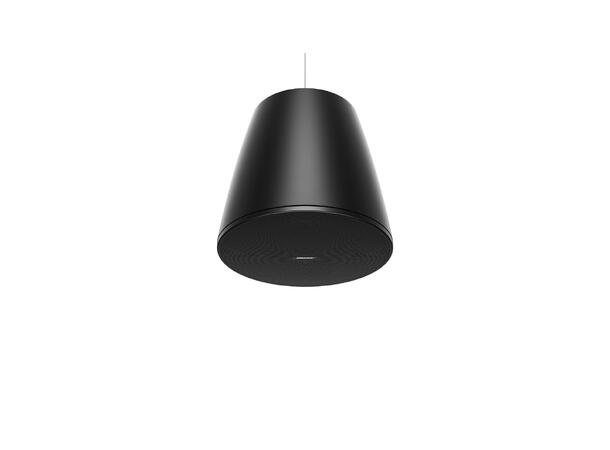

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

FEATURES

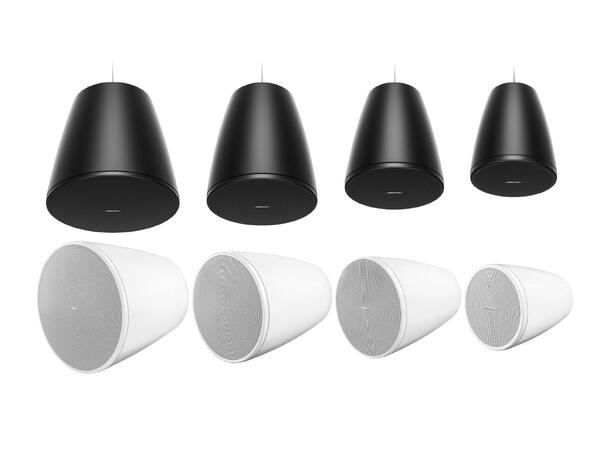

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

• Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer

• Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

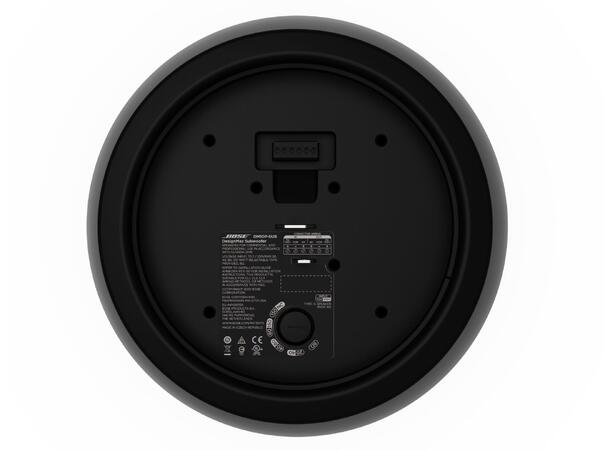

• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

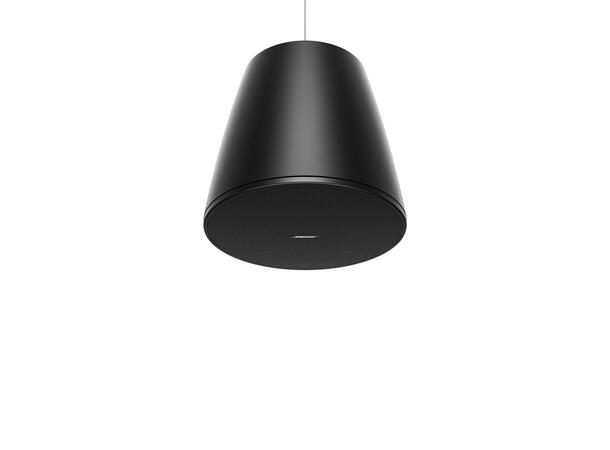

• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

SPECS

Technical Specification

• Safety Agency Ratings

• UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant

• Colors

• Black (similar to RAL 9005), white (similar to RAL 9003), paintable

• Enclosure Material

• Engineered plastics

• Environmental

• Indoor only

• Grille

• Perforated steel, powder-coated finish

• Logo

• Rotatable, removable

• Suspension/Mounting

• 1 suspension attachment point, 1 safety cable attachment point

• Operating Temperature Range

• 0 °C to 50 °C (32 °F to 122 °F)

• Product Dimensions (H×W×D)

• 15.7 in × 15.1 in (400 mm × 383 mm), loudspeaker diameter × depth

• Net Weight

• 19.7 lb (8.9 kg)

• Shipping Weight

• 27.9 lb (12.7 kg)

• Frequency Range (-10 dB)

• 40 Hz – 125 Hz

• Coverage, Horizontal

• Omnidirectional below 200 Hz

• Calculated Maximum SPL @ 1 m

• 110 dB

• Nominal Impedance

• 8 O (transformer bypass)

• Power Handling, long-term continuous

• 250 W

• Power Handling, Peak

• 1000 W

• Recommended Signal Processing

• Not required, Bose Professional EQ voicing and SmartBass processing available

• Sensitivity (SPL/1 W at 1 m)

• 85 dB

• Transformer Taps, 100V

• 40, 80, 150 W, bypass

• Transformer Taps, 70V

• 20 W, 40 W, 80 W, 150 W, bypass

• Coverage, Vertical

• Omnidirectional below 200 Hz

• Crossover

• 80 Hz – 200 Hz via active crossover in DSP

• Driver Protection

• Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter

• Low-Frequency

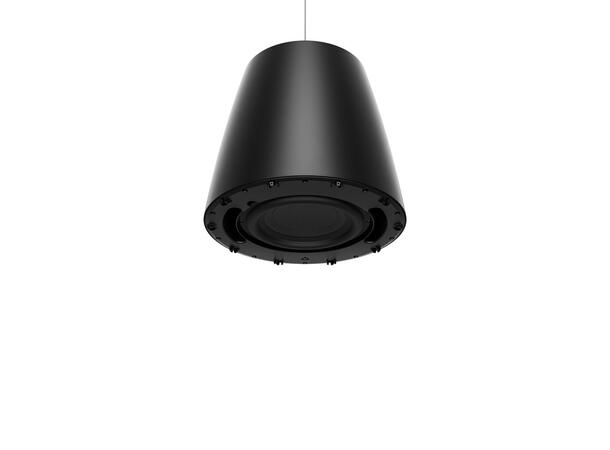

• 1 × 10 in (254 mm) woofer

Product codes

• 835265-0110
• DESIGNMAX DM10P-SUB SINGLE BLACK

• 835265-0210
• DESIGNMAX DM10P-SUB SINGLE WHITE

• 835265-0120
• DESIGNMAX DM10P-SUB SINGLE BLK (NEW)

• 835265-0220
• DESIGNMAX DM10P-SUB SINGLE WHT (NEW)

Included in Packaging

• (4) cable ties

• (1) suspension cable, 15.0 ft (4.5 m)

• (1) DesignMax DM10P-SUB subwoofer

• (1) installation guide

• (1) cable fastener

• (1) cable fastener tool

IMPORTANT NOTIFICATIONS

We would like to inform our customers about recent updates to the DesignMax DM3P, 5P, 6PE and 10P-SUB.

Due to a change in manufacturing location, new SKU product codes have been introduced, but rest assured, there are no changes to the product.
