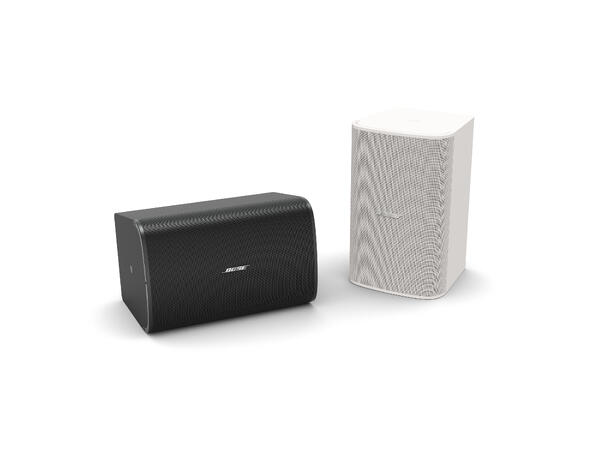

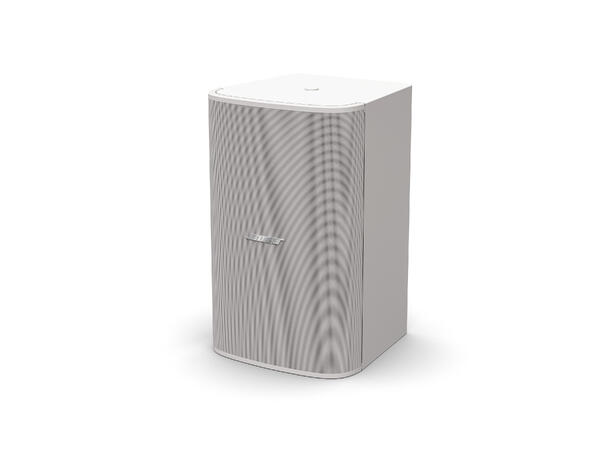

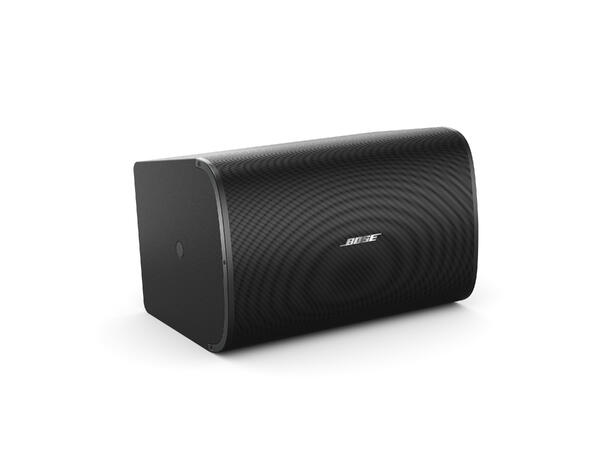

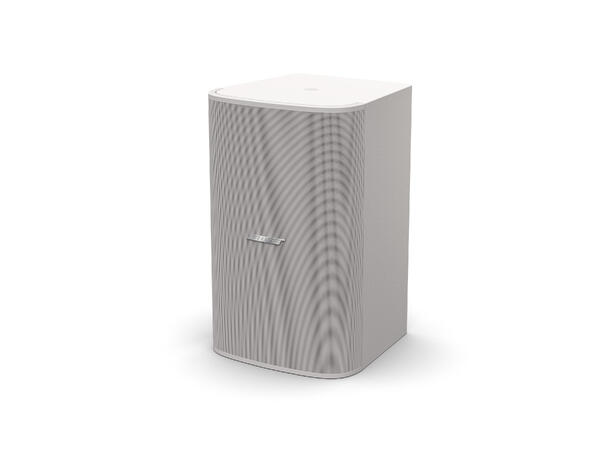

Delivering rich low-end performance, 300-watt Bose Professional DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz – 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesignMax subwoofers complement and enhance any DesignMax installation.

FEATURES

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options



• Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level



• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos



• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage



• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier



Applications

Designed for a wide range of applications, including:

• Performing arts venues
• Places of worship
• Conference centers
• Retail stores
• Restaurants and bars
• Hospitality venues

SPECS

Technical Specification

• Safety Agency Ratings

• UL-1480A, S5591/ UL Listed, NFPA70, CE compliant

• Colors

• Black (RAL 9005), white (similar to RAL 9003), paintable

• Enclosure Material

• High-density wood composite with solid color laminate, UV fade-resistant

• Environmental

• Indoor only

• Grille

• Perforated steel, powder-coated finish, paintable, tamper-resistant design

• Logo

• Rotatable, removable

• Suspension/Mounting

• QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert

• Operating Temperature Range

• 0 °C to 50 °C (32 °F to 122 °F)

• Product Dimensions (H×W×D)

• 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket

• Net Weight

• 35.5 lb (16.1 kg), loudspeaker with grille & bracket

• Shipping Weight

• 41.5 lb (18.8 kg)

• Frequency Range (-10 dB)

• 35 Hz – 125 Hz

• Coverage, Horizontal

• Omnidirectional below 200 Hz

• Calculated Maximum SPL @ 1 m

• 115 dB

• Nominal Impedance

• 8 O (transformer bypass)

• Power Handling, long-term continuous

• 300 W

• Power Handling, Peak

• 1200 W

• Recommended Signal Processing

• Not required, Bose Professional EQ voicing and SmartBass processing available

• Sensitivity (SPL/1 W at 1 m)

• 90 dB

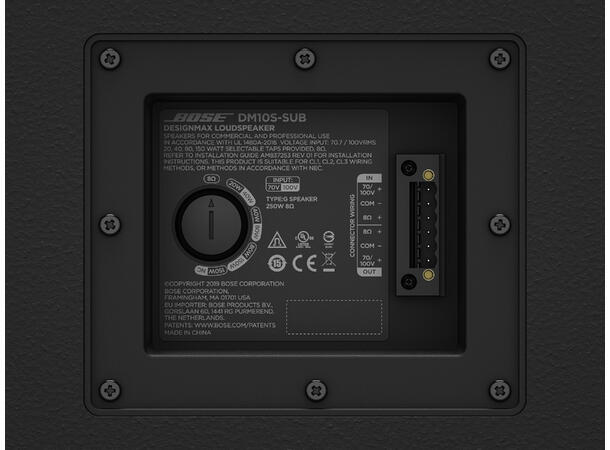

• Transformer Taps, 100V

• 40, 80, 150 W, bypass

• Transformer Taps, 70V

• 20 W, 40 W, 80 W, 150 W, bypass

• Coverage, Vertical

• Omnidirectional below 200 Hz

• Crossover

• 80 Hz – 200 Hz via active crossover in DSP

• Driver Protection

• Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter

• Low-Frequency

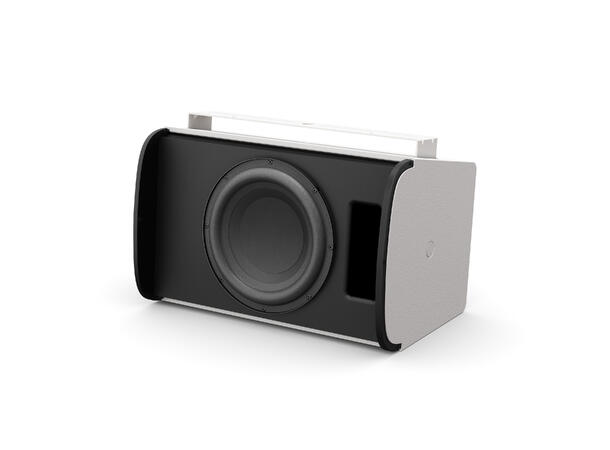

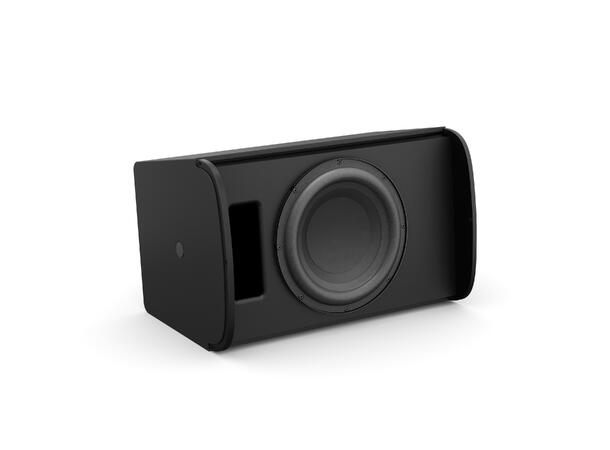

• 1 × 10 in (254 mm) woofer

VIDEOs

Product codes

• 831856-0110
• DESIGNMAX DM10S-SUB SINGLE BLK

• 831856-0210
• DESIGNMAX DM10S-SUB SINGLE WHT

Included in Packaging

• (1) U-bracket

• (1) DesignMax DM10S-SUB subwoofer

• (1) installation guide

• (2) rubber caps

• (2) M8 screws

IMPORTANT NOTIFICATIONS

DOWNLOADS

• Technical Data Sheet

• Architects' & Engineers' Specifications

• Installation Guide

• Painting Guide

• Installed Product Selection Guide

• ARCHICAD

• CAD Files

• Revit

• DesignMax Ease GLLs

• Declaration of Conformity

• Product Image Files
