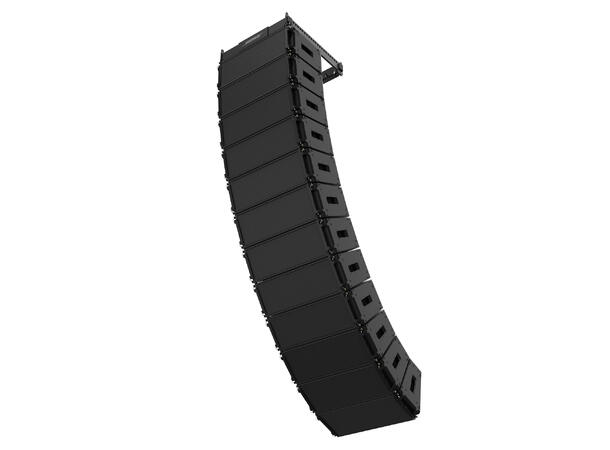

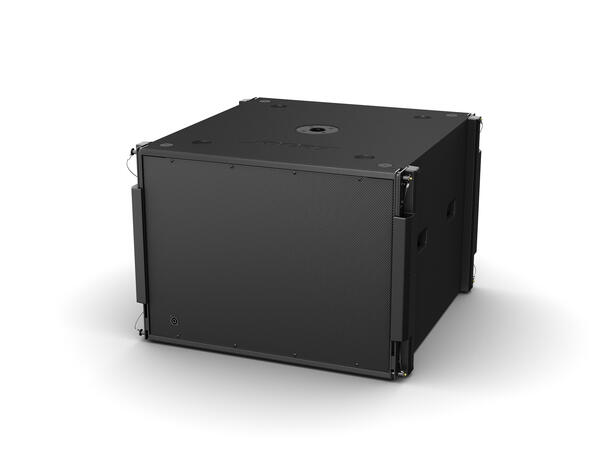

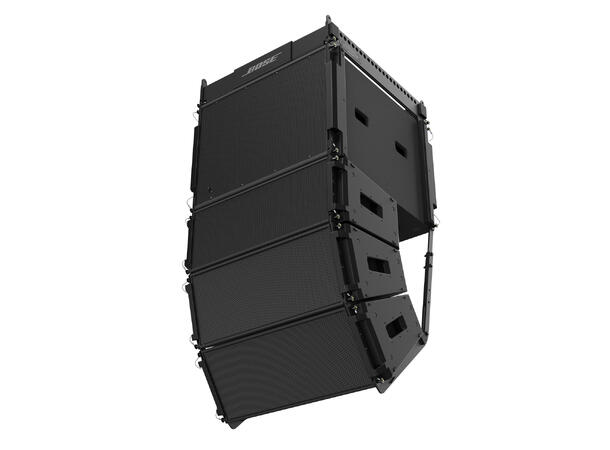

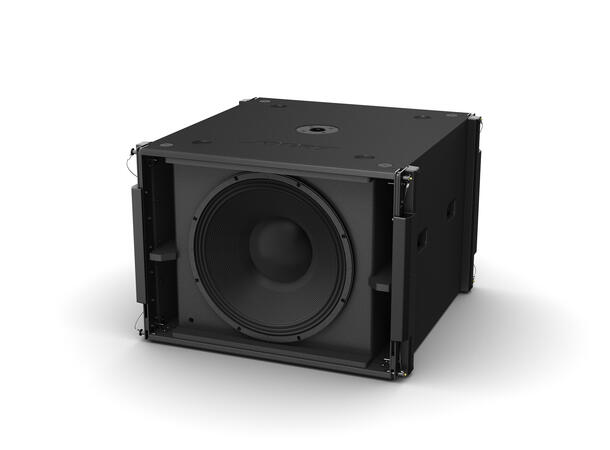

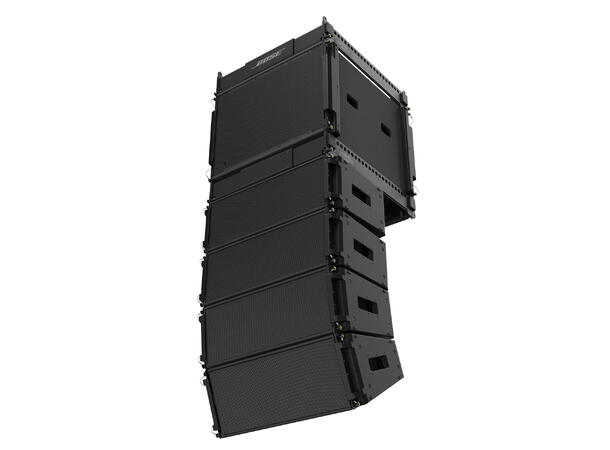

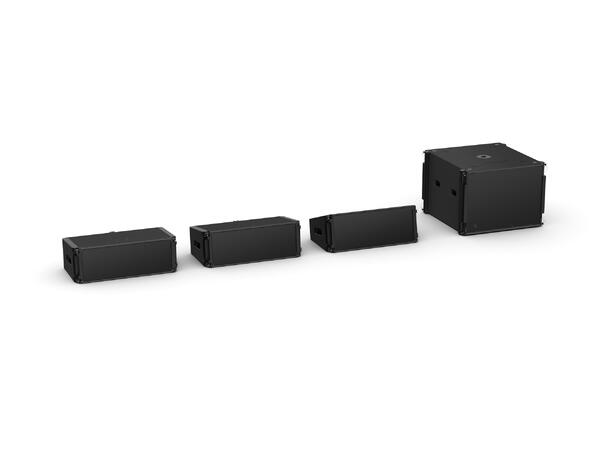

Bose Professional ShowMatch SMS118 subwoofers are designed primarily to integrate with DeltaQ array loudspeakers and extend low-frequency response down to 29 Hz. The SMS118 enclosure width and integrated rigging allows fast integration in arrays with ShowMatch full-range modules using optional array frames and accessories. The portable-rated Baltic birch enclosure may also be used for ground-stack applications and includes an integrated mounting-pole adapter for use with other mid/high loudspeakers.

FEATURES

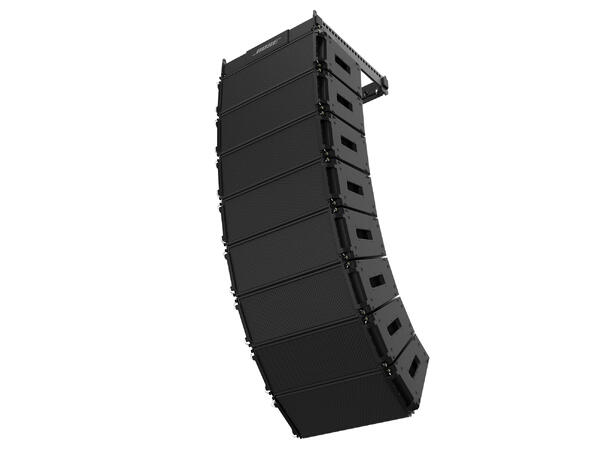

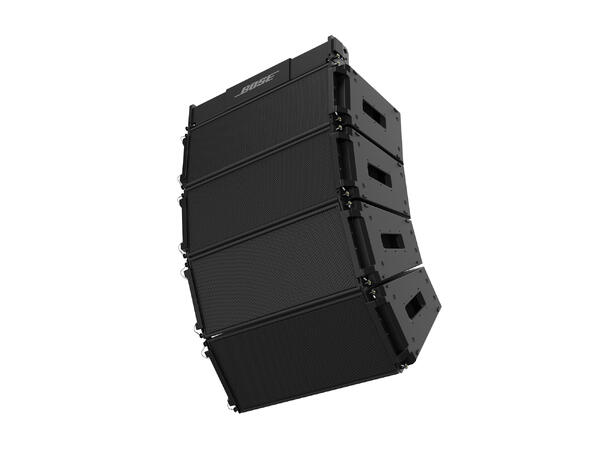

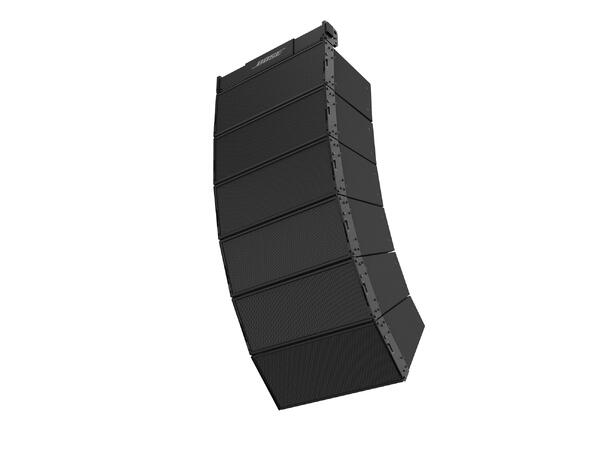

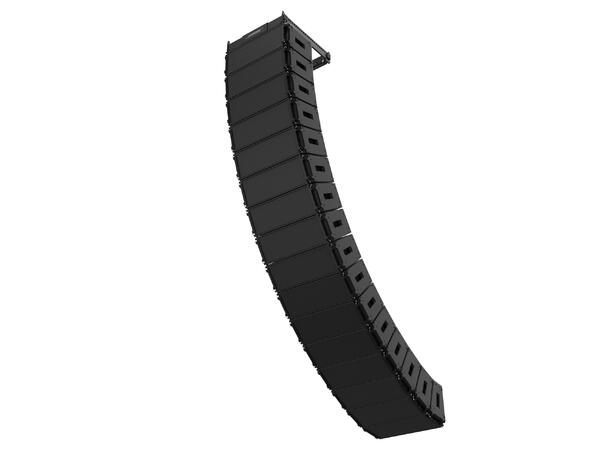

• DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

• ShowMatch DeltaQ companion 1 × 18-inch subwoofer for low-frequency extension down to 29 Hz with mixed mid/high and subwoofer ShowMatch arrays.

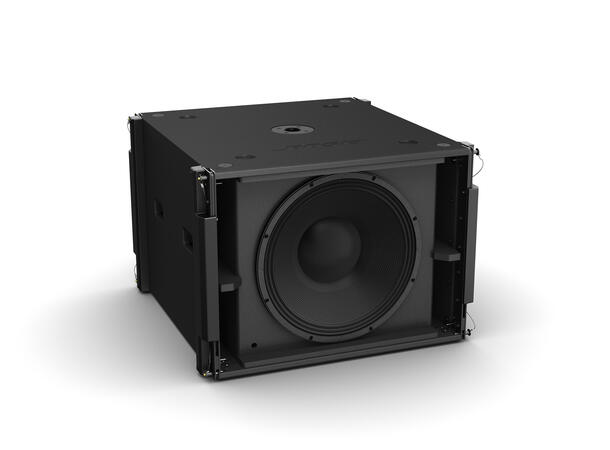

• Bose Professional LF18 neodymium 18-inch, high-excursion, 4.5-inch voice coil, transducer provides maximum performance (same transducer as in Bose Professional RMS218).

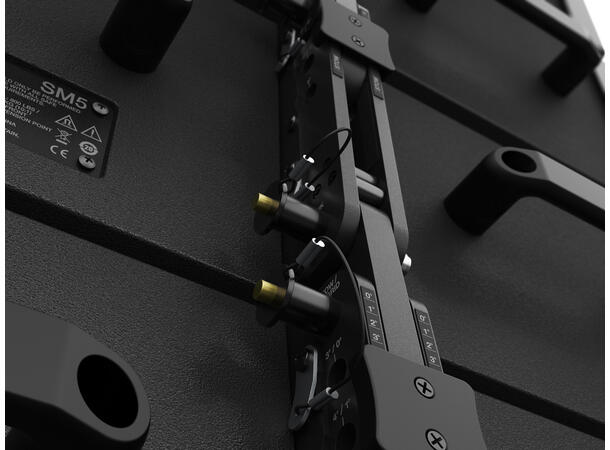

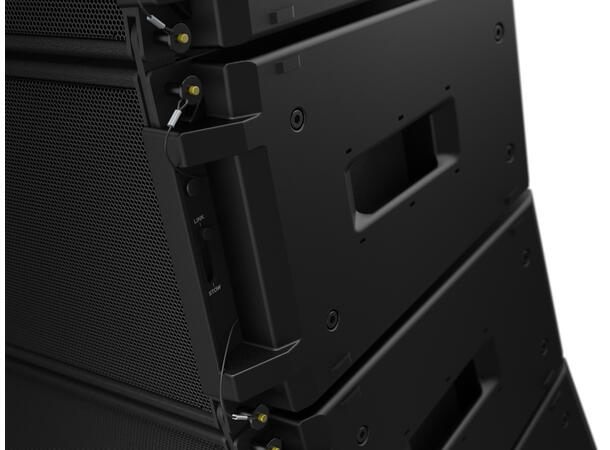

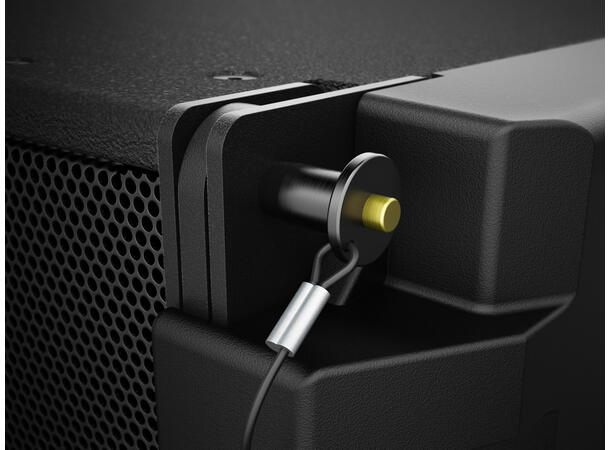

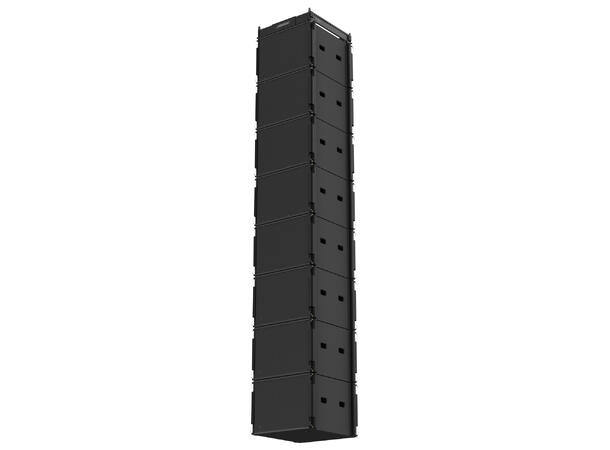

• Integrated 4-point “quick pin” rigging allows arrays of up to 18 subwoofers with 10:1 safety factor.

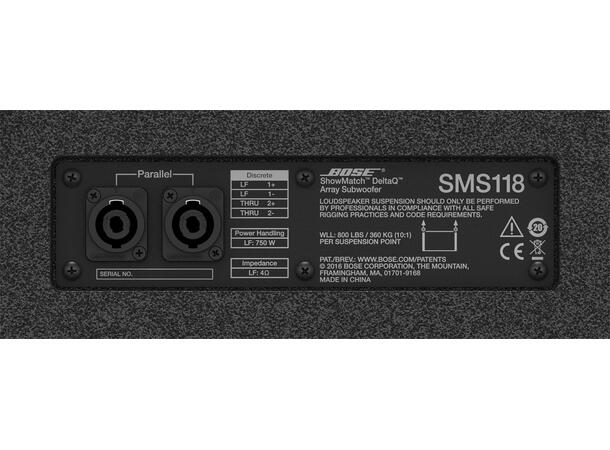

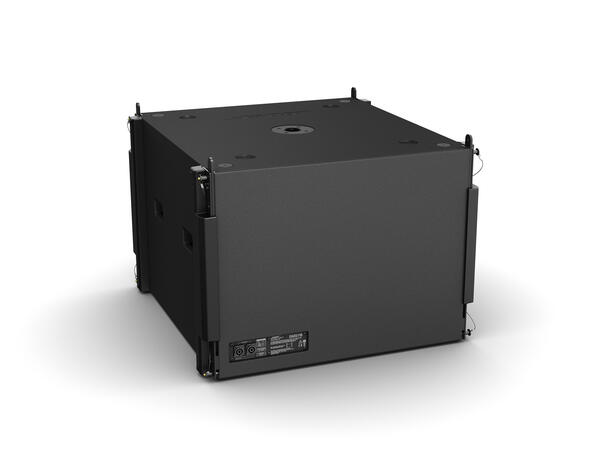

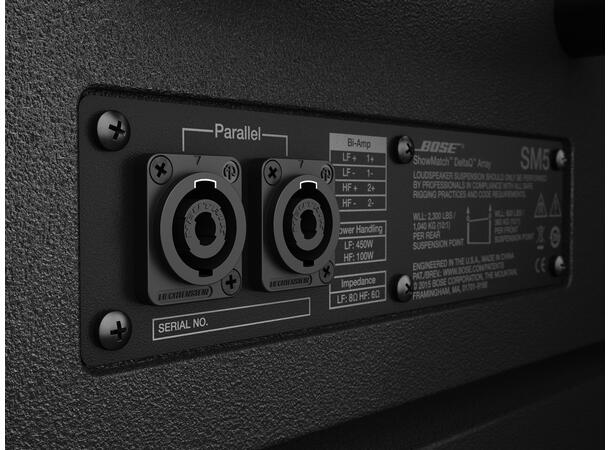

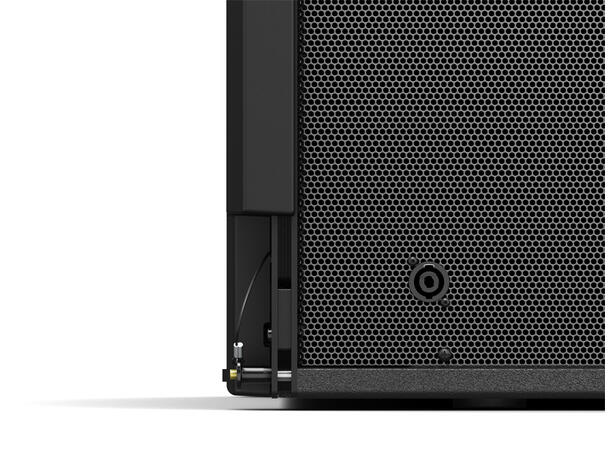

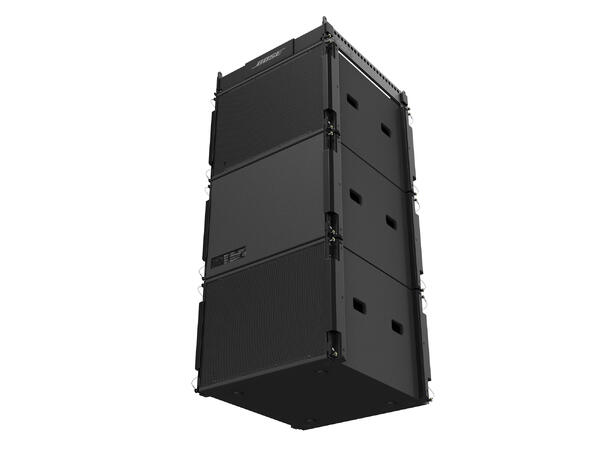

• Front-grille mounted NL4 input, plus rear NL4 inputs, allow easy setup for “reversed box” cardioid arrays.

Applications

Designed for a wide range of applications, including:

• Theaters
• Houses of worship
• Auditoriums
• Performing arts venues
• Arenas

SPECS

Technical Specification

• EN 54-24 Certified

• No

• Colors

• Black

• Enclosure Material

• Baltic birch plywood

• Grille

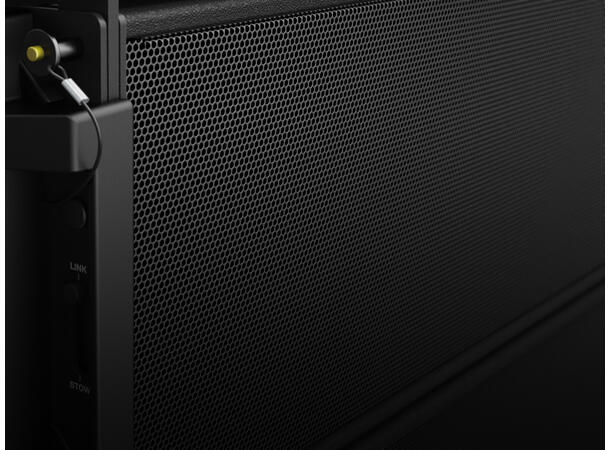

• 16-gauge (1.5 mm) perforated steel, powder-coated finish

• Suspension/Mounting

• 4-point “quick pin” rigging, 4 × M10 top & 4 × M10 bottom inserts, M20 pole cup

• Product Dimensions (H×W×D)

• 21.2 in × 30.1 in × 30.5 in (540 mm × 765 mm × 775 mm)

• Net Weight

• 136.5 lb (61.9 kg)

• Frequency Range (-10 dB)

• 29 Hz – 300 Hz

• Coverage, Horizontal

• Omnidirectional

• Calculated Maximum SPL @ 1 m

• 121 dB (free field/array), 127 dB (half-space/ground stack) continuous / 127 dB (free field/array), 133 dB (half-space/ground stack) peak

• Nominal Impedance

• 4 O

• Power Handling, long-term continuous

• 750 W

• Power Handling, Peak

• 3000 W

• Sensitivity (SPL/1 W at 1 m)

• 92 dB (free field/array), 98 dB (half-space/ground stack)

• Coverage, Vertical

• Omnidirectional

• Crossover

• 60 Hz – 100 Hz, requires active crossover in DSP

• Low-Frequency

• 1 × Bose Professional LF18 neodymium high-excursion 18 in (457 mm) woofer, 4.5 in (114 mm) voice coil

Mechanical Diagrams

Product codes

• 734302-0110
• ShowMatch SMS118

Warranty Period

• 5 years

Included in Packaging

• (1) ShowMatch SMS118 subwoofer

• (1) installation guide
