Surface-mount performance sound meets stealth-mode design.
EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Patented PhaseGuide® technology enables EdgeMax loudspeakers to project powerful, focused sound asymmetrically from the room’s edges to the center.
New EdgeMax LP models feature an 80-degree vertical coverage angle for use in rooms with lower ceilings, and their shallow 4-inch backcan is ideal for spaces with above-ceiling limitations and tighter clearances. Larger rooms with higher SPL needs benefit from the powerful, deeper 9-inch cans and 75-degree vertical coverage of the original EdgeMax models.
EdgeMax models are purpose-built to provide specific horizontal coverage. The EM180-LP’s 180-degree horizontal coverage angle makes it ideal for placement along the ceiling edge. It provides a wide and consistent sound pattern optimized for near-field applications and room-filling coverage.
Integrators can “mix and match” original EdgeMax and new LP loudspeakers, particularly in challenging installations with varying space dimensions and above-ceiling obstructions.
EdgeMax Comparison Chart
| EM90 / EM180 | EM90-LP / EM180-LP |
| Horizontal coverage | 90° / 180° | 90° / 180° |
| Vertical coverage | 75° asymmetrical | 80° asymmetrical |
| Backcan height | 24 cm (9 in) | 10 cm (4 in) |
| Weight | 10 kg (22 lb) | 7.5 kg (16.5 lb) |
| Recommended ceiling height | 2.7–6.1 m (9–20 ft) or higher | 2.4–3.7 m (8–12 ft) |
| Recommended applications | High-SPL applications, like:- Bars & restaurants
- Fitness clubs
- Hospitality
- Houses of worship
- Performance spaces
- Commercial spaces
| Lower-SPL / background music applications, like:- Conference rooms, halls, atriums & cafeterias
- Hospitality spaces with low ceiling clearance
- Restaurants
- Retail
- Retrofits with unknown ceiling clearance
|
FEATURES
Patented PhaseGuide technology evenly distributes sound throughout the space to ensure all listeners enjoy the same experience regardless of their location

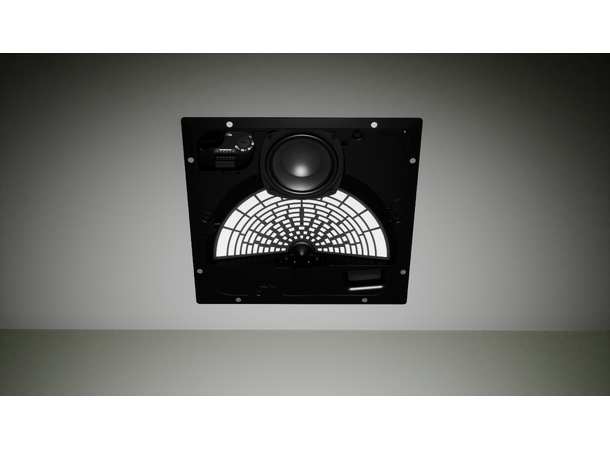

In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound

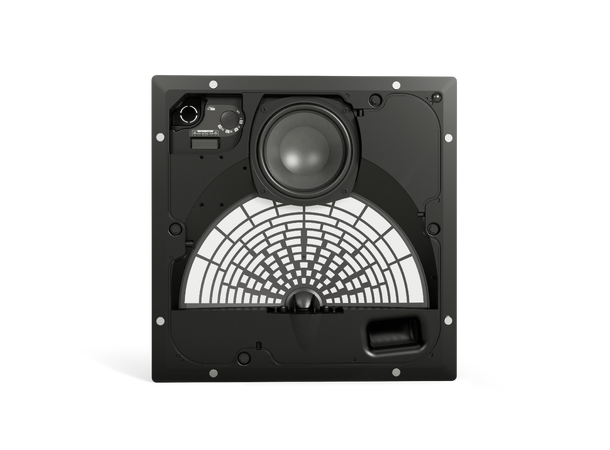

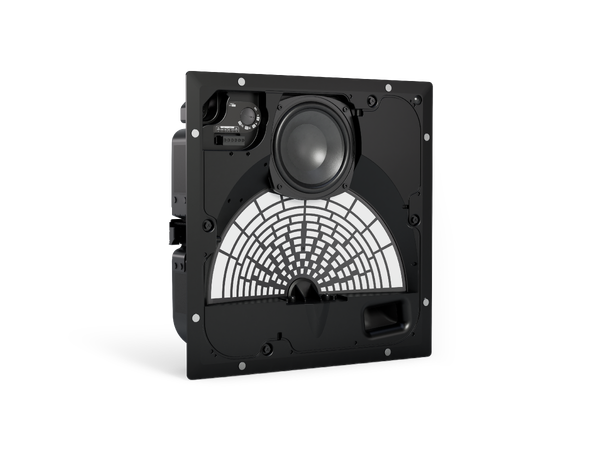

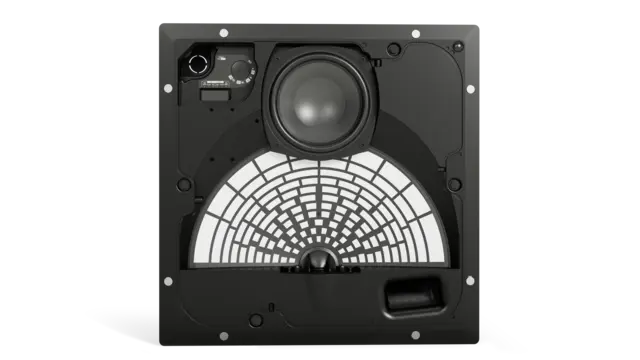

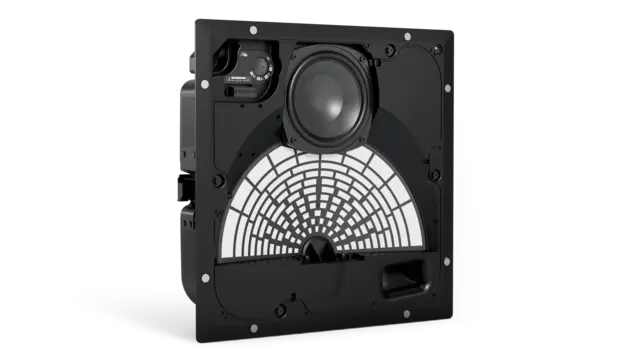

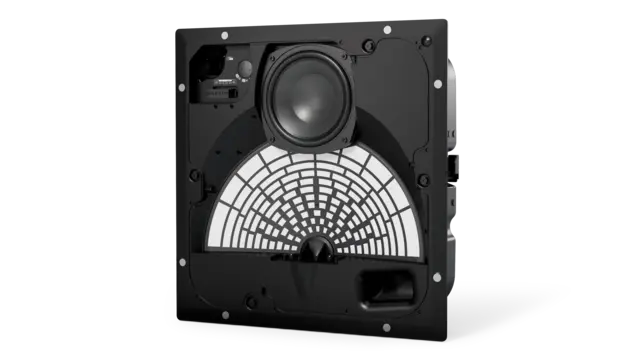

High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage
Wall-boundary loading for greater bass response and performance
2-way passive crossover with bypassable 70/100V transformer
Consistent voicing across the EdgeMax family

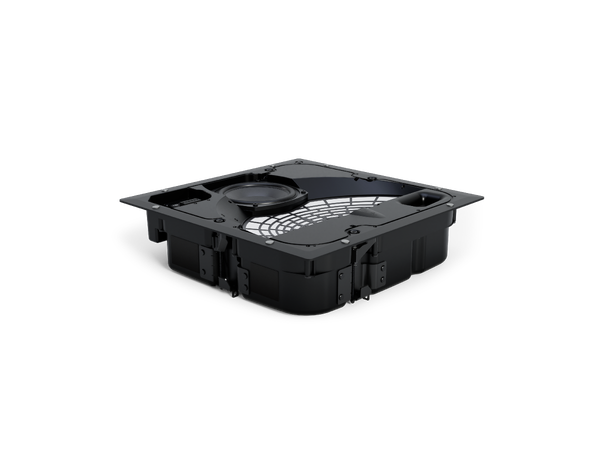

QuickHold spring-loaded mounting system for easy installs

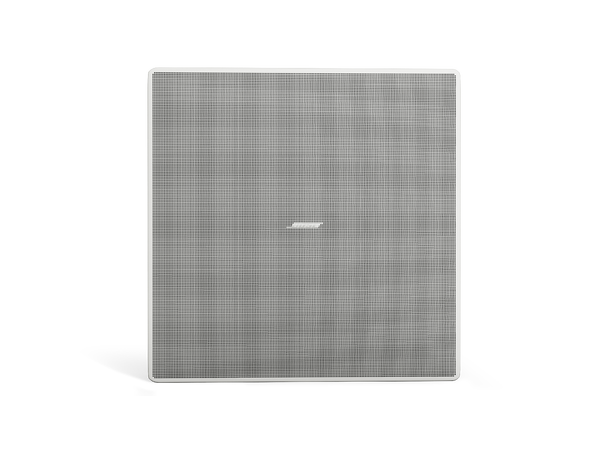

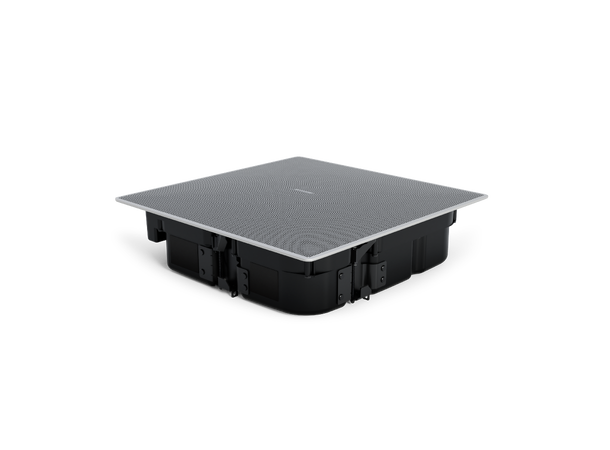

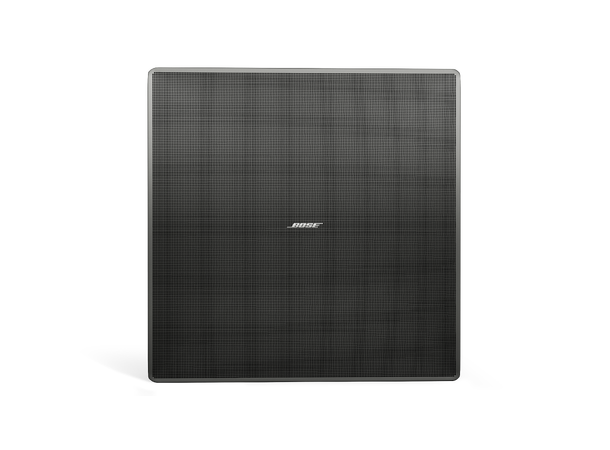

Magnetically attached grille for quick access to wiring and tap settings

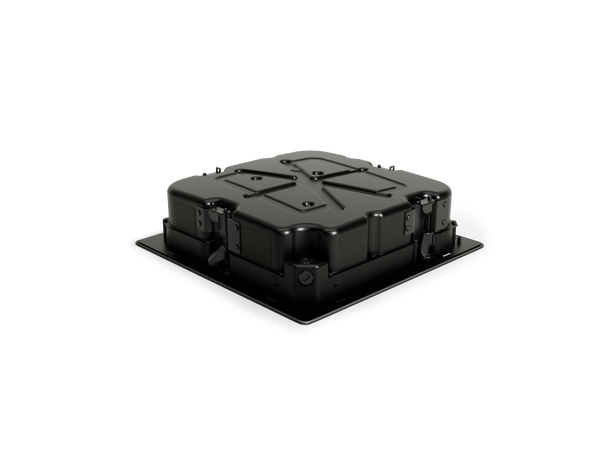

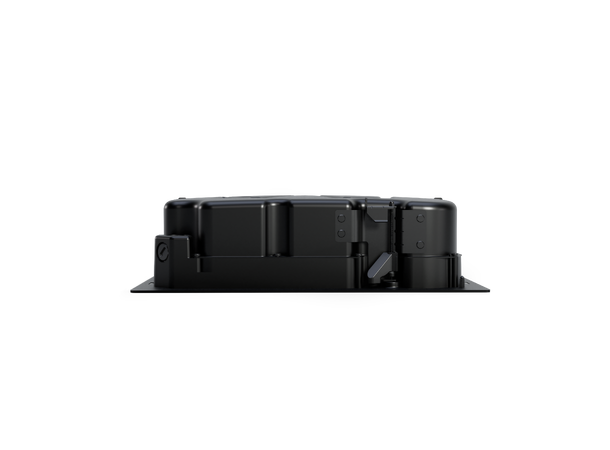

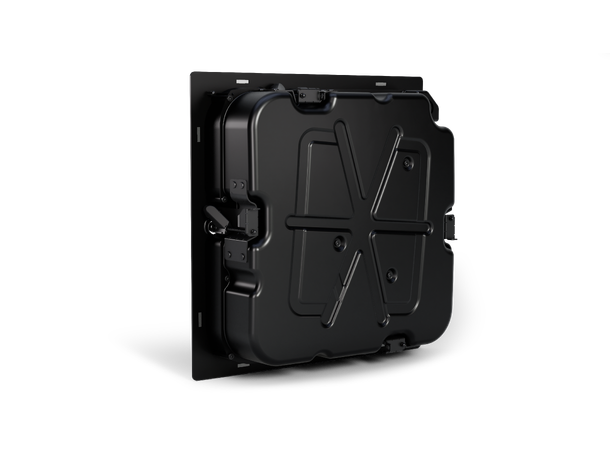

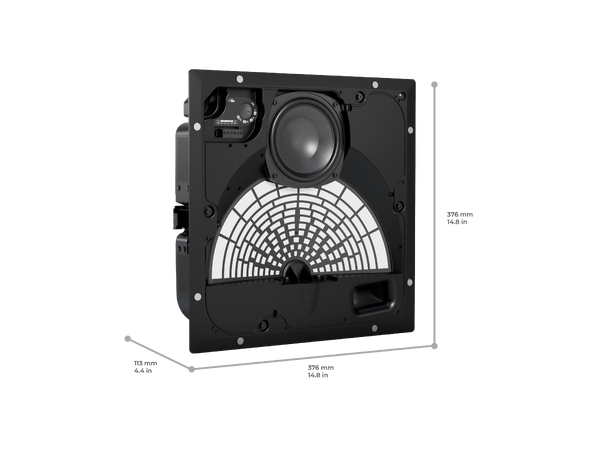

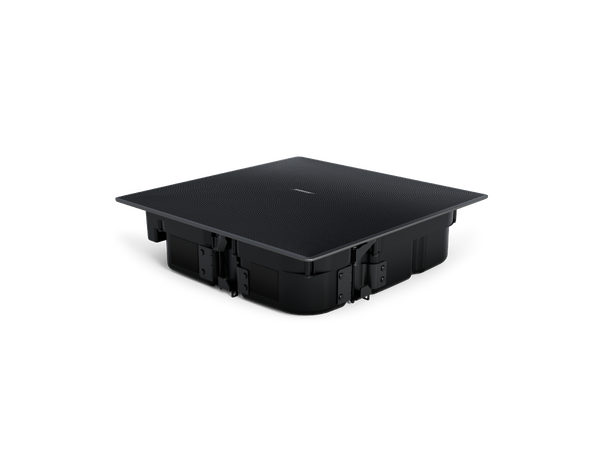

Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances
80-degree vertical coverage angle for use in rooms with lower ceilings
UL 62368 and UL 2043 safety standard compliance
Applications
Designed for a wide range of applications, including:
- Conference rooms, halls, atriums & cafeterias
- Hospitality spaces with low ceiling clearance
- Restaurants
- Retail
- Retrofits with unknown ceiling clearance
SPECS
Technical Specification
COMPLIANCE
Safety Agency Ratings
UL 62368, UL 2043
PHYSICAL
Shipping Weight
11.1 kg (24.5 lb)
PERFORMANCE
Frequency Range (-10 dB)
45 Hz – 19,000 Hz
Transformer Taps, 100V
8 W, 16 W, 32 W, bypass
Transformer Taps, 70V
4 W, 8 W, 16 W, 32 W, bypass
TRANSDUCERS
Product codes
- 891454-0200 EDGEMAX EM180-LP IN CEILING LDSPKR WHT
- EdgeMax EM90-LP Loudspeaker
Included in Packaging
