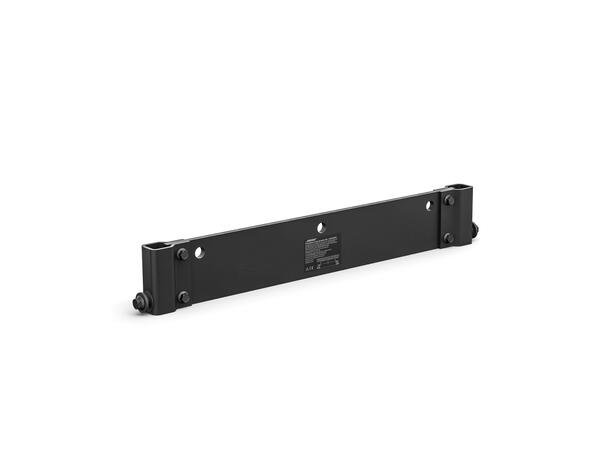

BOSE ARENAMATCH AMAPSPRD

Bose Professional ArenaMatch array rigging accessories are designed for use with ArenaMatch DeltaQ Array loudspeakers (AM10, AM20, and AM40) only. All accessory kits are shipped in pairs and include all required fasteners. The spreader bar provides alternate attachment points to help position the array in the final installation location.

SPECS

Technical Specification

• Working Load Limit (WLL)

• 550 lb (250 kg), each side point / 1,050 lb (476 kg), center point

• Colors

• Black

• Product Dimensions (H×W×D)

• 4.7 in × 1.9 in × 31.6 in (120 mm × 47 mm × 803 mm)

• Net Weight

• 22.7 lb (10.3 kg)

Product codes

• 810460-0110
• ArenaMatch AMAPSPRD

Included in Packaging

• (1) ArenaMatch AMAPSPRD array spreader bar

• (2) M12 × 35 mm screws

• (2) Fender washers

• (2) spacers

• (1) installation guide

DOWNLOADS

• Installation Guide

• CAD Files

• Product Image Files
