BOSE CONTROLSPACE EX-1280

With an open-architecture, single-rack-unit design, the ControlSpace EX-1280 is a robust digital signal processor equipped for general-purpose audio processing applications. Twelve mic/line analog inputs, eight analog outputs, a Bose Professional AmpLink output, and 64 × 64 Dante connectivity allow for flexible configuration and high-quality sound system control. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

• Open-architecture, 1RU design built for general-purpose and PA applications

• USB connection facilitates easy integration with PC audio sources

• Dante audio networking supports 64 × 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones, amplifiers, mixers, and endpoints

• AmpLink output provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose Professional amplifiers

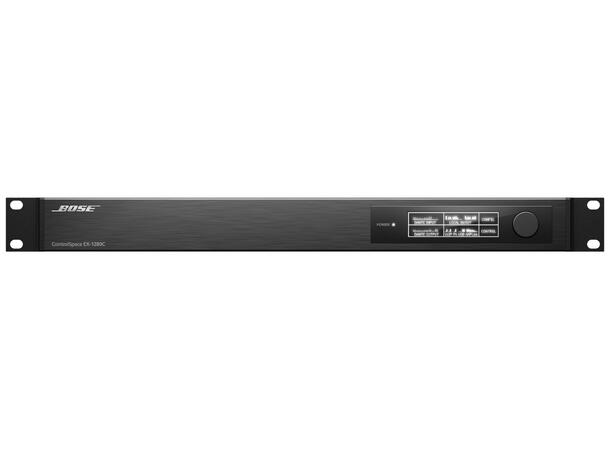

• Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity

• GPIO (5 in/5 out) and Serial for interfacing with external devices and control systems

Designed for a wide range of applications, including:

• Performance venues
• Stadiums and arenas
• Places of worship
• Hospitality
• Multi-purpose spaces
• Courtrooms
• Amusement parks

• Channel Separation (Crosstalk)

• < -105 dB at +4 dBu, 1 kHz input signal

• Dynamic Range

• > 115 dB, A-weighted, 20 Hz – 20 kHz, analog input to analog output

• Frequency Response

• 18 Hz – 20 kHz (+0.8 dB/-0.2 dB), 1 kHz reference

• THD+N

• < 0.003% at +4 dBu (A-weighted, 20 Hz – 18 kHz) / < 0.01% at +44 dBu (A-weighted, 20 Hz – 18 kHz)

• AEC-Enabled

• No

• Input Channels

• 12 balanced, mic/line

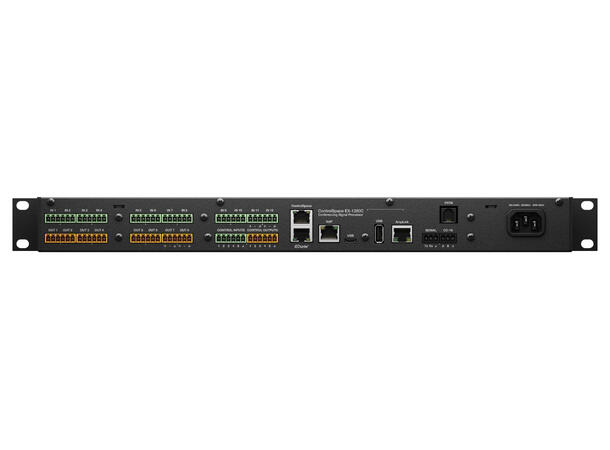

• Connectors

• (1) 6-pin Euroblock, 3.81 mm, detachable

• Equivalent Input Noise

• -118 dB at 44 dB gain

• Sensitivity Options

• 0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB

• Input Impedance

• 12 kO at 1 kHz, with or without phantom power

• Maximum Input Level

• +24 dBu

• Phantom Power

• 48 VDC, 10 mA, software-selectable per input

• Channels

• 64 Dante in × 64 Dante out, primary/secondary / 8 AmpLink out

• Connectors

• (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out

• Type

• Dante (input/output), AmpLink (output)

• Channels

• 8 balanced, line

• Connectors

• (6) 6-pin Euroblock, 3.81 mm

• Maximum Output Level

• +24 dBu

• Output Impedance

• 200 O

• Safety

• UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition), UL62368-1 (2nd edition), CAN/CSA-C22.2 No. 62368-1-14 (2nd edition), IEC/EN 62368-1 (2nd edition)

• EN 54-24 Certified

• No

• EMC

• EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017, FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13

• Voltage Range, Analog

• 0 V – 3.3 V (5 V maximum)

• Digital Input Voltage

• 0 V – 3.3 V (1.6 V threshold)

• Outputs (Control)

• (5) digital, 6-pin Euroblock, 3.81 mm, detachable

• Output Voltage

• High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull

• Mains Connector

• IEC 60320-C14 inlet

• Mains Voltage

• 85–264 VAC, 50/60 Hz

• AC Power Consumption

• 35 W typical at 104 °F (40 °C) ambient

• Power Dissipation

• 60 W (205 BTU/hr, 52 kcal/hr)

• Software Applications

• ControlSpace Designer 5.5 or later (Windows)

• Computer Interface Connection

• RJ-45 (Dante), through network router or switch

• Display

• 256 × 64 OLED

• LED Status Indicators

• (1) power/status LED

• Delay

• 43 s

• A/D and D/A Converters

• 48 kHz / 24-bit

• Audio Latency

• 1.05 ms, analog input to analog output

• DSP-Enabled

• Yes

• Maximum Calculation

• 3.6 GIPS / 2.7 GFLOPS

• Signal Processor/CPU

• 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor

• Sample Rate / Bit Depth

• 48 kHz / 24-bit

• Colors

• Black

• Cooling System

• 2 variable-speed side-venting fans

• Suspension/Mounting

• Standard rack ears

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)

• Net Weight

• 7.1 lb (3.2 kg)

• Rack Spaces

• 1RU

• 834317-1110
• ControlSpace EX-1280, 120V, US

• 834317-2110
• ControlSpace EX-1280, 230V, EU

• 834317-3110
• ControlSpace EX-1280, 100V, JP

• 834317-4110
• ControlSpace EX-1280, 230V, UK

• 834317-5110
• ControlSpace EX-1280, 240V, AU

• 5 years

• (5) 6-pin Euroblock connectors

• (2) 3-pin Euroblock connectors

• (16) cable ties

• (1) ControlSpace EX-1280
