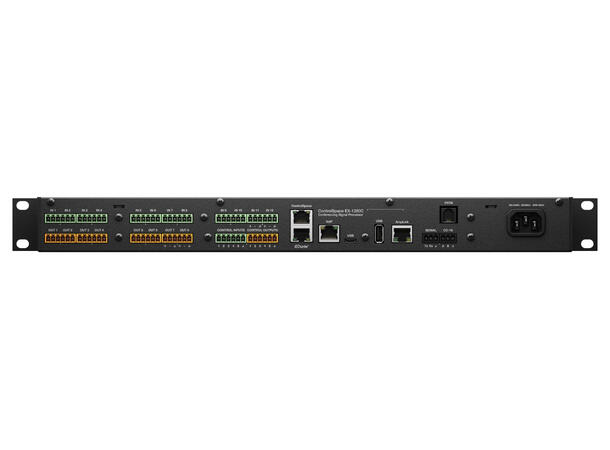

BOSE CONTROLSPACE EX-1280C

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 × 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

FEATURES

• All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model

• 12 acoustic echo cancellers (AEC) route to both analog and Dante inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors

• Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings

• 2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement

• PSTN connection (RJ-11) for worldwide POTS/analog telephone systems

• USB connection facilitates easy integration with PC soft codecs

• Dante audio networking supports 64 × 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones

• AmpLink port provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose Professional amplifiers

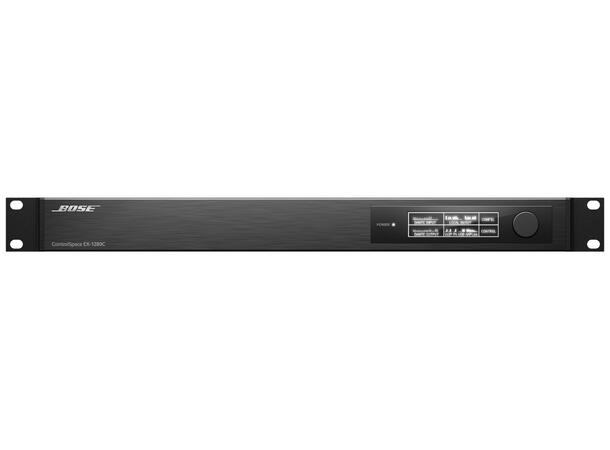

• Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity

• GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs

Applications

Designed for a wide range of applications, including:

• Performance venues
• Stadiums and arenas
• Places of worship
• Resorts and Hospitality Venues
• Multipurpose spaces

SPECS

Technical Specification

• Channel Separation (Crosstalk)

• < -105 dB at +4 dBu, 1 kHz input signal

• Dynamic Range

• > 115 dB, A-weighted, 20 Hz – 20 kHz, analog input to analog output

• Frequency Response

• 20 Hz – 20 kHz (+0.3 dB/-0.1 dB)

• THD+N

• 0.002% at +4 dBu (A-weighted, 20 Hz – 20 kHz)

• AEC-Enabled

• Yes

• Channels

• 12

• Latency

• 50 ms

• Noise Reduction

• 32 dB

• References

• 4

• Tail Length

• 480 ms

• Input Channels

• 12 balanced, mic/line

• Connectors

• (1) 6-pin Euroblock, 3.81 mm, detachable

• Equivalent Input Noise

• -118 dB at 44 dB gain

• Sensitivity Options

• 0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB

• Input Impedance

• 12 kO at 1 kHz, with or without phantom power

• Maximum Input Level

• +24 dBu

• Phantom Power

• 48 VDC, 10 mA, software-selectable per input

• Channels

• 64 Dante in × 64 Dante out, primary/secondary / 8 AmpLink out

• Connectors

• (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out

• Type

• Dante (input/output), AmpLink (output)

• Channels

• 8 balanced, line

• Connectors

• (6) 6-pin Euroblock, 3.81 mm

• Maximum Output Level

• +24 dBu

• Output Impedance

• 200 O

• Safety

• UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition)

• EN 54-24 Certified

• No

• EMC

• EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55103-2:2009, FCC Part 15B Class A, ICES-003 Class A, CNS13439, GB13837, GB17625.1, GB17625.2 25.2, CISPR13

• Voltage Range, Analog

• 0 V – 3.3 V (5 V maximum)

• Digital Input Voltage

• 0 V – 3.3 V (1.6 V threshold)

• Outputs (Control)

• (5) digital, 6-pin Euroblock, 3.81 mm, detachable

• Output Voltage

• High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull

• PSTN

• RJ-11, 1 line, Tx/Rx (transmit/receive)

• USB

• Micro-B type, stereo in/out

• VoIP

• RJ-45, 2 lines

• Mains Connector

• IEC 60320-C14 inlet

• Mains Voltage

• 85–264 VAC, 50/60 Hz

• AC Power Consumption

• 35 W typical at 104 °F (40 °C) ambient

• Power Dissipation

• 60 W (205 BTU/hr, 52 kcal/hr)

• Software Applications

• ControlSpace Designer 5.5 or later (Windows)

• Computer Interface Connection

• RJ-45 (Dante), through network router or switch

• Display

• 256 × 64 OLED

• LED Status Indicators

• (1) power/status LED

• Delay

• 43 s

• A/D and D/A Converters

• 48 kHz / 24-bit

• Audio Latency

• 1.05 ms, analog input to analog output without AEC

• DSP-Enabled

• Yes

• Maximum Calculation

• 3.6 GIPS / 2.7 GFLOPS

• Signal Processor/CPU

• 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor

• Sample Rate / Bit Depth

• 48 kHz / 24-bit

• Colors

• Black

• Cooling System

• 2 variable-speed side-venting fans

• Suspension/Mounting

• Standard rack ears

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)

• Net Weight

• 7.3 lb (3.6 kg)

• Rack Spaces

• 1RU

Warranty Period

• 5 years

Included in Packaging

• (1) ControlSpace EX-1280C

• (5) 6-pin Euroblock connectors

• (2) 3-pin Euroblock connectors

• (16) cable ties

• (1) installation guide
