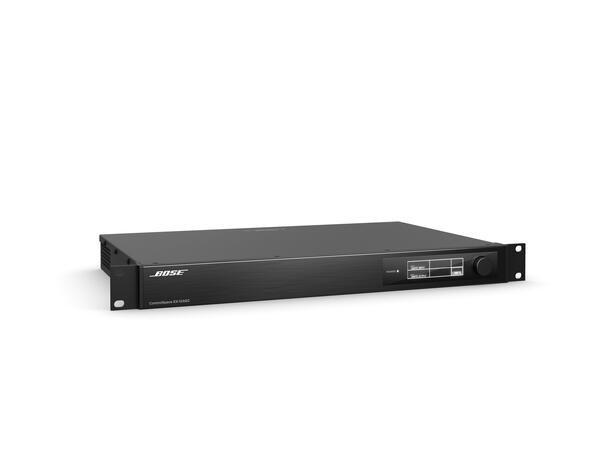

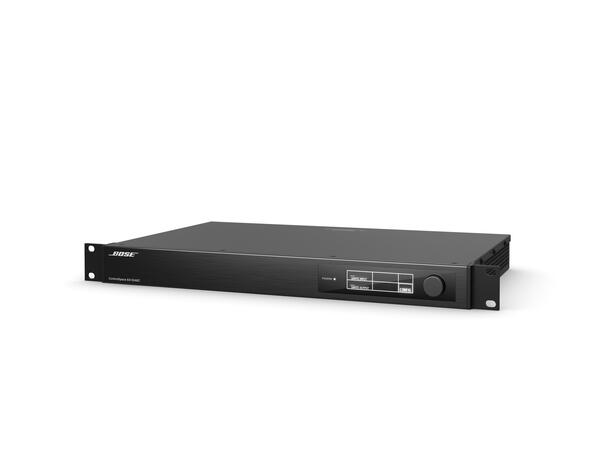

BOSE CONTROLSPACE EX-12AEC

With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 × 16 Dante connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.

FEATURES

• Channel AEC expansion with multiple references to complement ControlSpace EX-1280C processors in larger systems

• Adaptable noise cancellation with non-linear processing and comfort noise on each AEC channel enhances clarity

• Dante audio networking supports 16 × 16 audio channels for connection to an EX-1280C processor and native Dante-integrated microphones

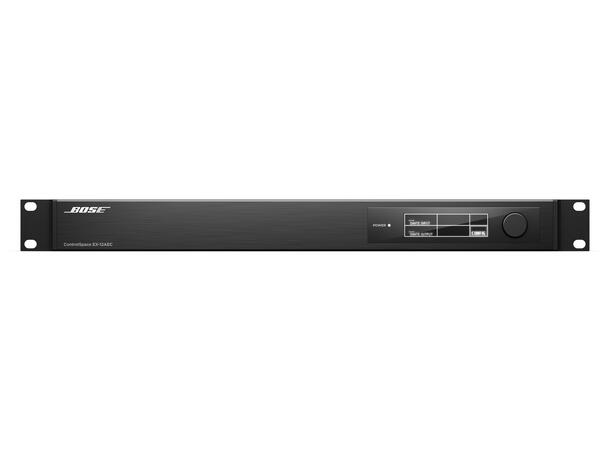

• Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity

Applications

Designed for a wide range of applications, including:

• Boardrooms
• Large conference rooms
• Distance learning
• Multi-purpose spaces
• Divisible conference rooms
• Operation centers

SPECS

Technical Specification

• AEC-Enabled

• Yes

• Channels

• 12

• Latency

• 50 ms

• Noise Reduction

• 32 dB

• References

• 4

• Tail Length

• 480 ms

• Channels

• 16 Dante in × 16 Dante out, primary/secondary

• Connectors

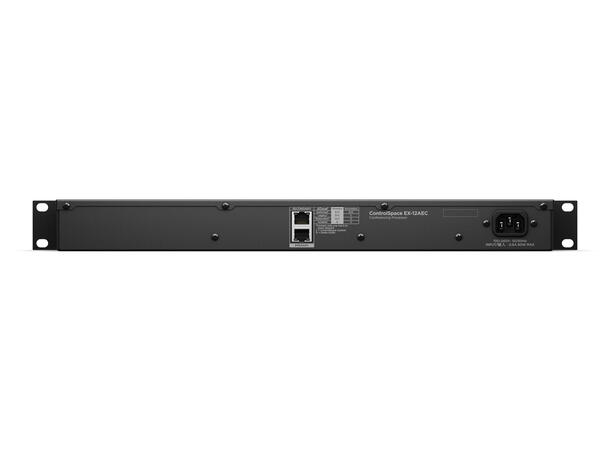

• (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out

• Type

• Dante (input/output)

• Mains Connector

• IEC 60320-C14 inlet

• Mains Voltage

• 85–264 VAC, 50/60 Hz

• AC Power Consumption

• 35 W typical at 104 °F (40 °C) ambient

• Power Dissipation

• 60 W (205 BTU/hr, 52 kcal/hr)

• Software Applications

• ControlSpace Designer 5.5 or later (Windows)

• Computer Interface Connection

• RJ-45 (Dante), through network router or switch

• Display

• 256 × 64 OLED

• LED Status Indicators

• (1) power/status LED

• Delay

• 43 s

• DSP-Enabled

• Yes

• Maximum Calculation

• 3.6 GIPS / 2.7 GFLOPS

• Signal Processor/CPU

• 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor

• Colors

• Black

• Cooling System

• 2 variable-speed side-venting fans

• Suspension/Mounting

• Standard rack ears

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)

• Net Weight

• 5.3 lb (2.4 kg)

• Rack Spaces

• 1RU

Product codes

• 834316-1110
• ControlSpace EX-12AEC, 120V, US

• 834316-2110
• ControlSpace EX-12AEC, 230V, EU

• 834316-3110
• ControlSpace EX-12AEC, 100V, JP

• 834316-4110
• ControlSpace EX-12AEC, 230V, UK

• 834316-5110
• ControlSpace EX-12AEC, 240V, AU

Warranty Period

• 5 years
