BOSE CONTROLSPACE EX

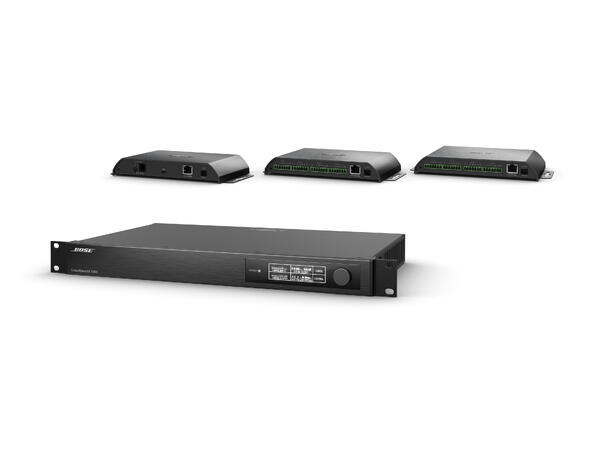

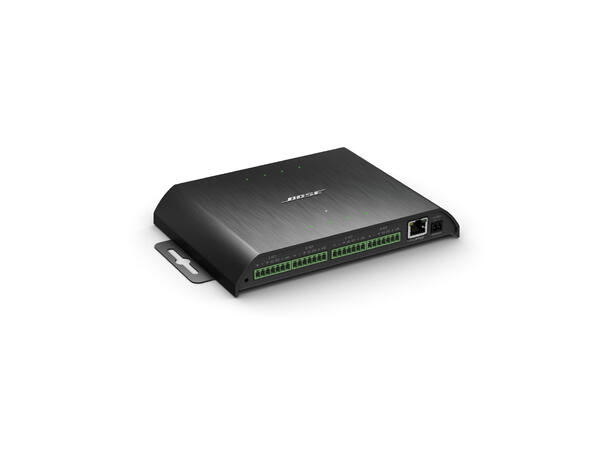

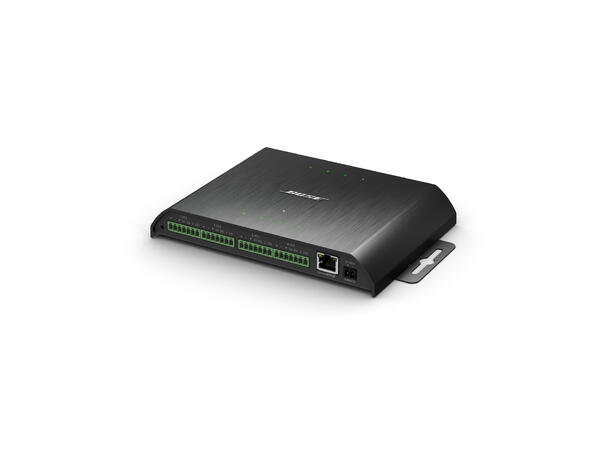

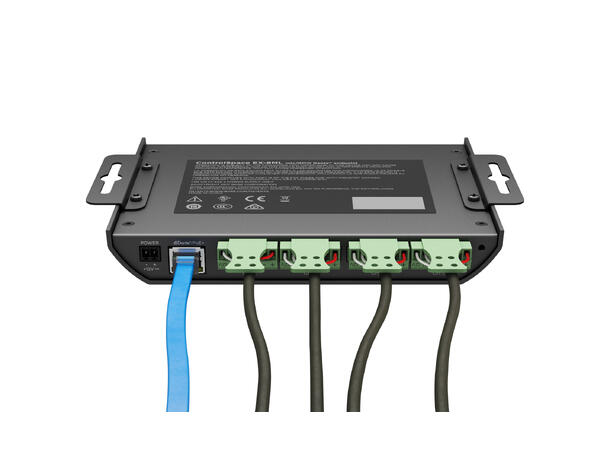

Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-8ML Dante endpoint, is a convenient, cost effective solution for connecting up to 8 conferencing microphones over a single Cat 5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-8ML adds 8 high-quality microphone/line inputs, 8 GPI, and 16 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing routing, and simplified logic control in ControlSpace Designer make configuring the EX-8ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.

FEATURES

Applications

Designed for a wide range of applications, including:

• Boardrooms
• Medium/large conference rooms
• Courtrooms
• Distance learning
• Auditoriums
• Multipurpose spaces

SPECS

Technical Specification

• Frequency Response

• 20 Hz – 20 kHz (±1 dB)

• THD+N

• < 0.01% at any gain setting, input signal 3 dB below maximum

• Input Channels

• 8 balanced, mic/line

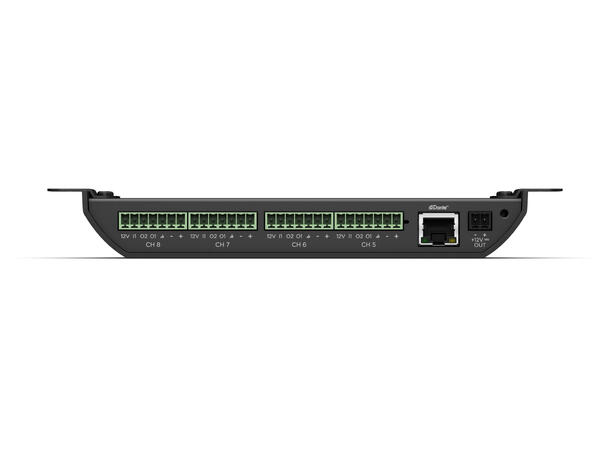

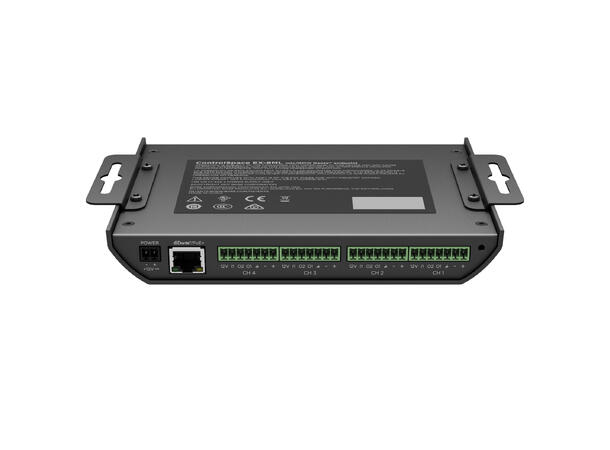

• Connectors

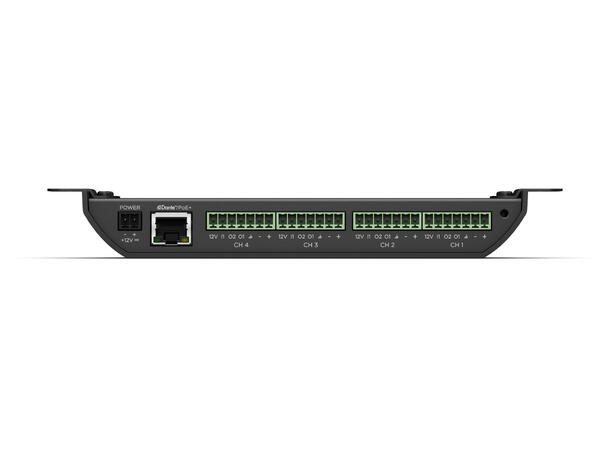

• (8) 7-pin Euroblock, 3.81 mm, detachable

• Equivalent Input Noise

• -115 dBu at +45 dB gain

• Sensitivity Options

• 0 dB, +15 dB, +30 dB, +45 dB, software-selectable

• Input Impedance

• > 1.8 kO at any gain setting

• Maximum Input Level

• +8 dBu at 0 dB gain

• Phantom Power

• 48 VDC, software-selectable per input

• Connectors

• (1) RJ-45 Dante in / (1) RJ-45 Dante out

• EMC

• FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition)

• Inputs (Control)

• (8) general-purpose (1 per audio input), 7-pin Euroblock, 3.81 mm

• Outputs (Control)

• (16) general-purpose (2 per audio input), 7-pin Euroblock, 3.81 mm

• Connectors

• (1) RJ-45 port / (1) Euroblock, 2 pins

• Power Range

• 12 VDC, daisy-chainable

• PoE Class

• Class 0 802.3at PoE+, PD-compliant

• Power Range

• 12 VDC, 200 mA

• AC Power Consumption

• 5.6 W + 2 W phantom power (if used)

• Compatible with

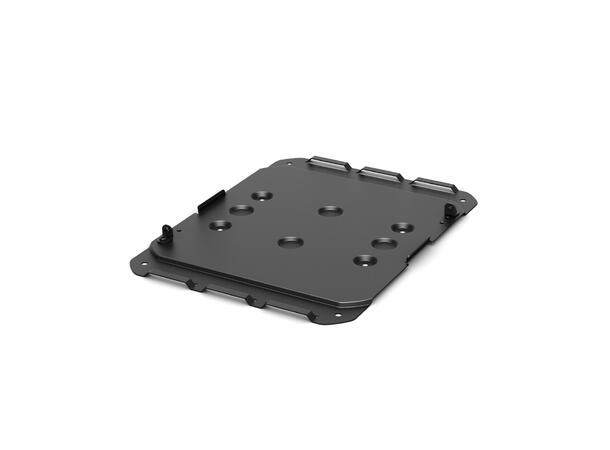

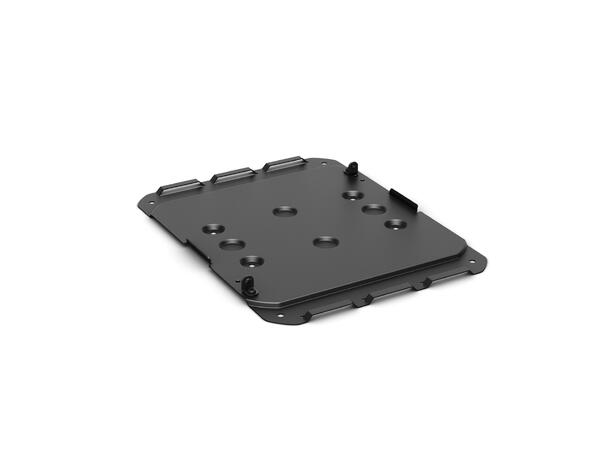

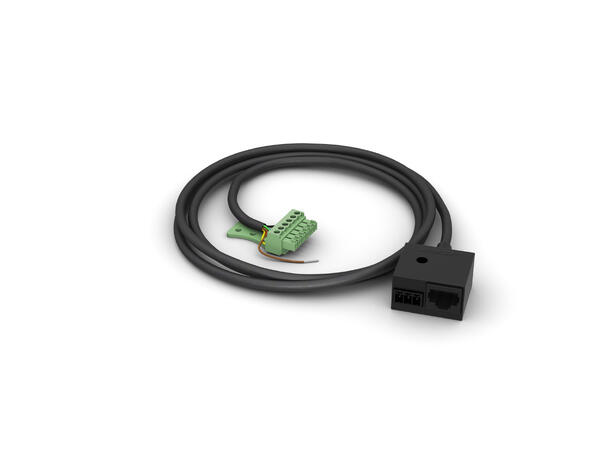

• ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Microphone Extension Cable, ControlSpace EX Endpoint Mounting Bracket

• Software Applications

• ControlSpace Designer 5.0 or later (Windows)

• LED Status Indicators

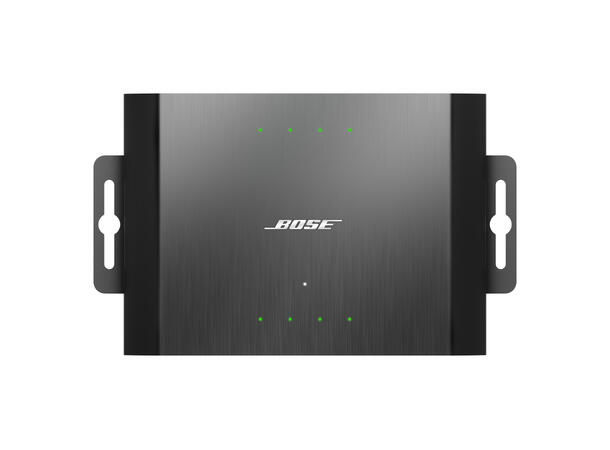

• (1) power LED, (8) input signal status LEDs

• Colors

• Black

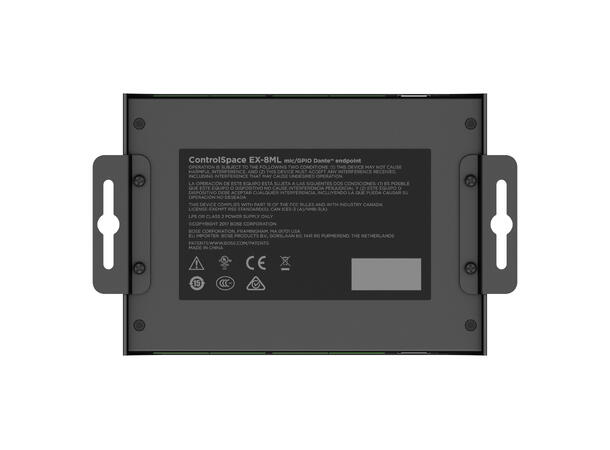

• Suspension/Mounting

• (2) mounting tabs

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.1 in × 8.4 in × 5.2 in (29 mm × 213 mm × 132 mm)

Product codes

• 772045-0110
• ControlSpace EX-8ML

Included in Packaging

• (1) ControlSpace EX-8ML

• (1) mounting template

• (4) mounting screws

• (1) installation guide

• (10) cable ties

• (2) 2-pin Euroblock connectors

• (8) 7-pin Euroblock connectors
