BOSE CONTROLSPACE EX

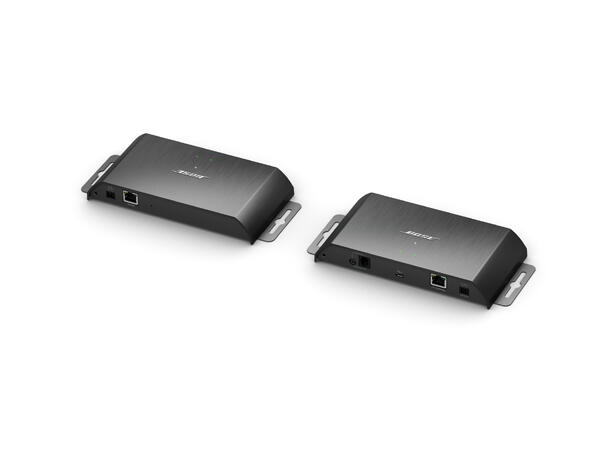

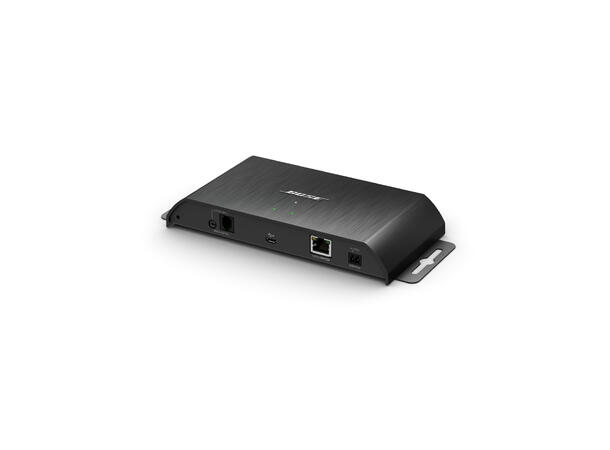

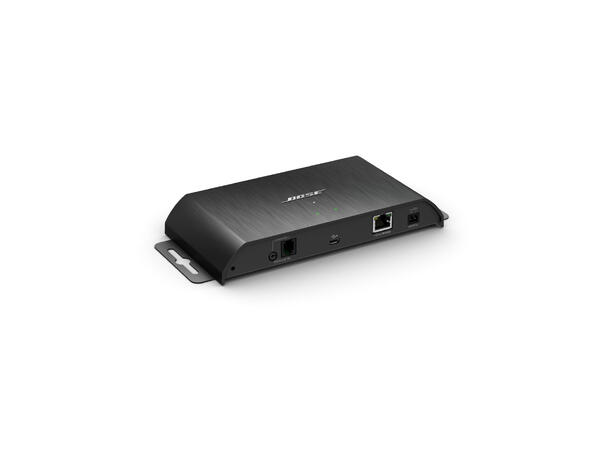

Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-UH Dante endpoint, is a convenient, cost effective solution for connecting remote BYOD devices or telephone handsets over a single Cat 5/6 cable. Whether used under a conference table to connect a laptop running a soft-codec such as Skype for Business, or to connect a customer’s handset for bridging calls, or both, the EX-UH’s high-quality USB and headset to Dante audio conversion simplifies wiring and adding extra codecs to a conferencing system. Autodiscovery, drag and drop programming, and auto-routing in ControlSpace Designer make connecting the EX-UH easy.

FEATURES

Applications

Designed for a wide range of applications, including:

• Boardrooms
• Medium/large conference rooms
• Courtrooms
• Distance learning
• Auditoriums
• Multipurpose spaces

SPECS

Technical Specification

• Frequency Response

• 0 Hz – 20 kHz (±1 dB), USB audio / 20 Hz – 20 kHz (±1 dB), TRRS audio / 200 Hz – 10 kHz (±1 dB), RJ-9 audio

• THD+N

• 0.02%, USB audio / 1.0%, TRRS audio / 0.05%, RJ-9 audio

• Input Channels

• 1

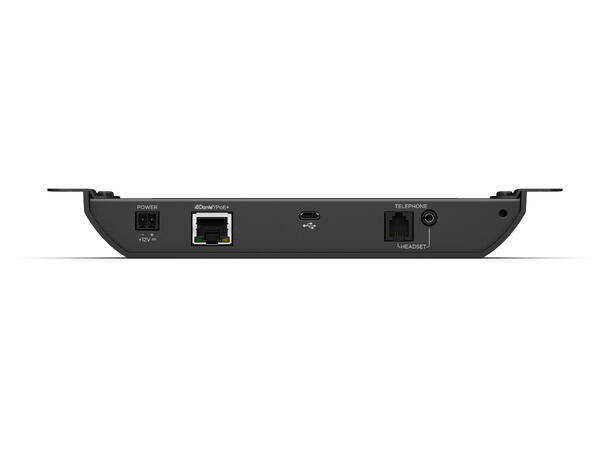

• Connectors

• (1) RJ-9, (1) 1/8-in (3.5 mm) TRRS

• Channels

• 2 in, 2 out

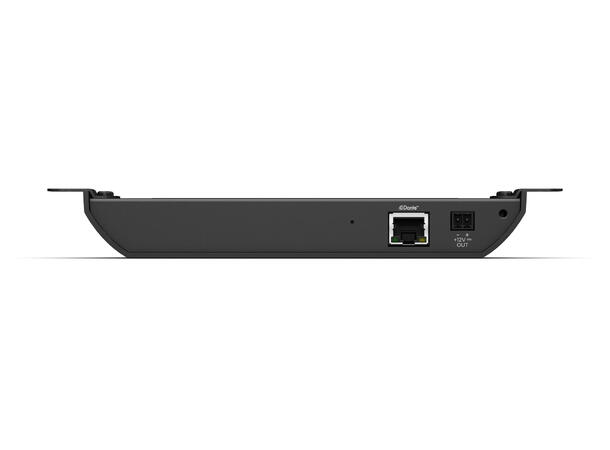

• Connectors

• (1) RJ-45 Dante in / (1) RJ-45 Dante out / (1) USB 2.0 micro-B

• Channels

• 2

• Connectors

• (1) RJ-9, (1) 1/8 in (3.5 mm) TRRS

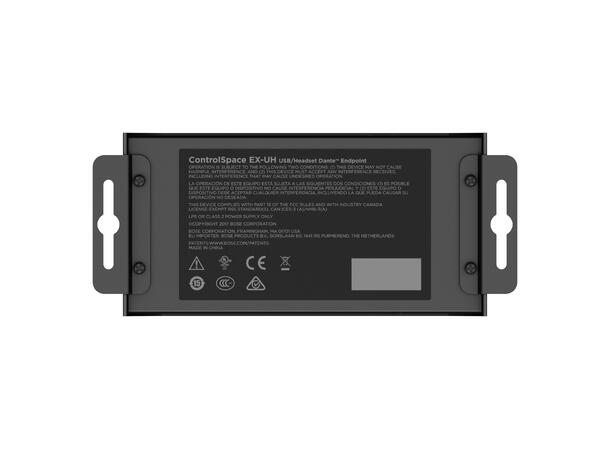

• EMC

• FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition)

• Connectors

• (2) Euroblock, 2 pins, 3.81 mm

• Power Range

• 12 VDC, daisy-chainable

• PoE Class

• Class 0 802.3at PoE+, PD-compliant

• AC Power Consumption

• 5 W

• Compatible with

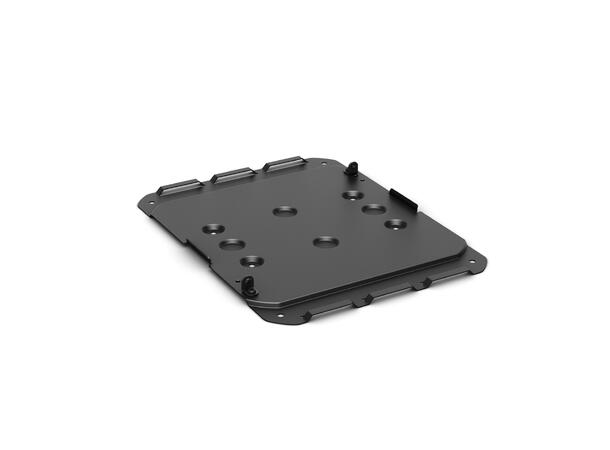

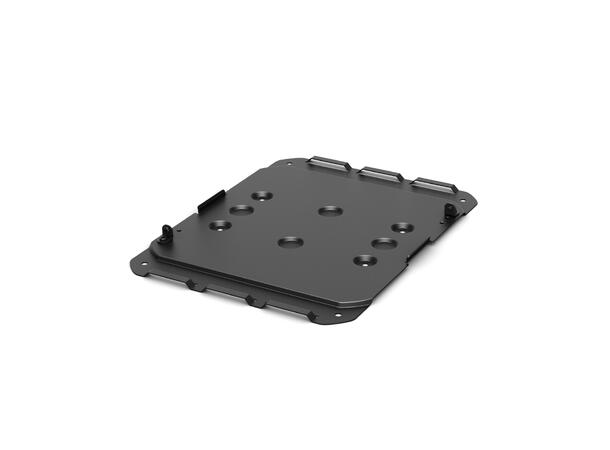

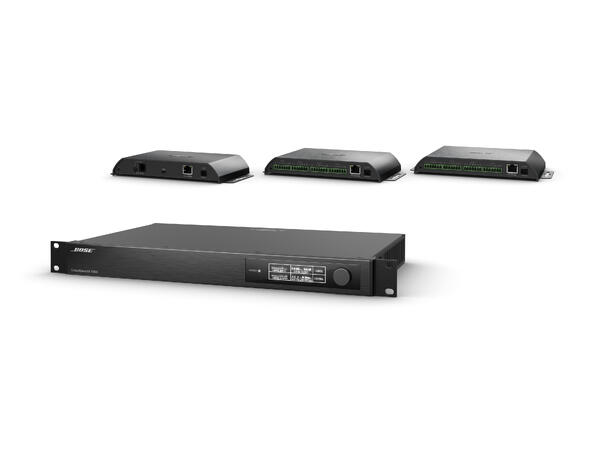

• ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Mounting Bracket

• Software Applications

• ControlSpace Designer 5.0 or later (Windows)

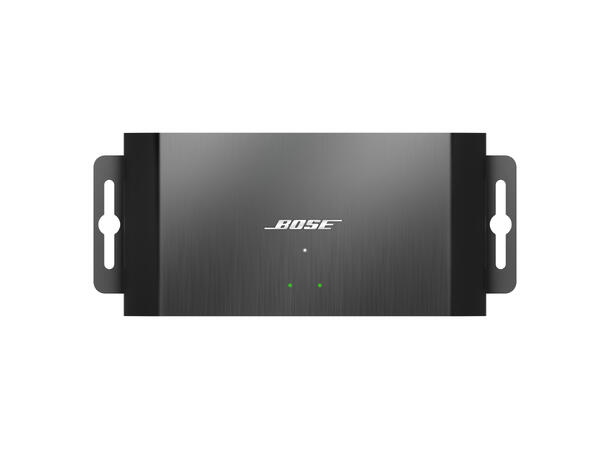

• LED Status Indicators

• (1) power LED, (1) USB audio signal LED, (1) headset audio signal LED

• Colors

• Black

• Suspension/Mounting

• (2) mounting tabs

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.1 in × 8.4 in × 3.6 in (29 mm × 213 mm × 92 mm)

VIDEOs

Product codes

• 771784-0110
• ControlSpace EX-8ML

Included in Packaging

• (1) ControlSpace EX-UH

• (4) mounting screws

• (1) mounting template

• (2) cable ties

• (1) RJ-9 adapter

• (1) RJ-9 cable

• (1) audio cable

• (1) USB-to-microUSB cable

• (2) 2-pin Euroblock connectors

• (1) installation guide
