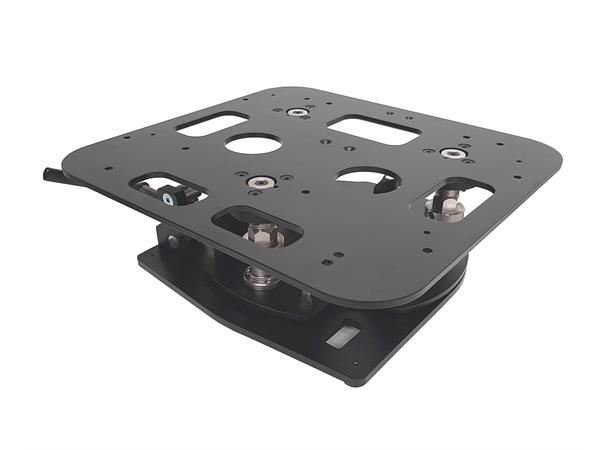

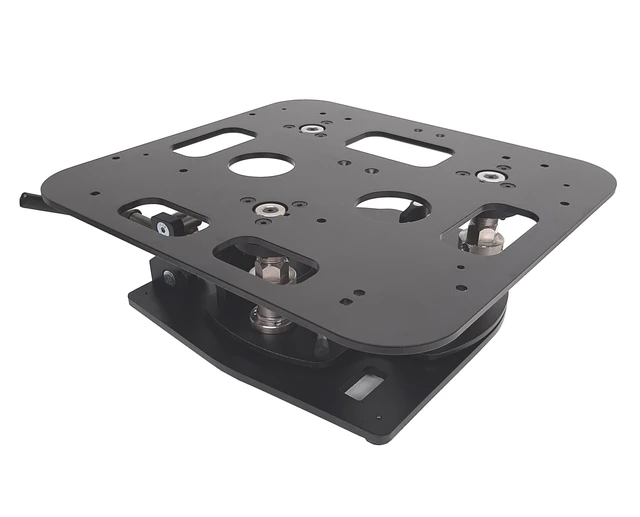

Euromet KITE 3.0 BLACK Epson

Varenr: 21400
Euromet KITE 3.0 BLACK Epson
eks. mva

The Kite provides solutions to easily satisfy every enduring specific installation need:

  • Connection: to truss, wall, ceiling and large range of telescopic extensions poles.
  • Projection: landscape, portrait, floor projectio.
  • Possibility to have 2 or more projectors in “stack” together.
  • The support’s adjustment system consists of 3 knobs and a ratchet wrench that allows manual calibration at any time without the need of any uncomfortable special tools.
  • The stand is designed to be easily adapted to any projector’s brands.

His originality had been confirmed and recognised officially by the fact that had been even patented.
Its adjustment system goes beyond the concept that inspired the supports present on the market today.
At the moment the market in general has a single central joint in charge of rotating on itself and maintaining the desired position of the entire system.
The Kite replaced this system with 3 distinct support points (2 lateral and 1 rear) each of which allows the micrometric adjustment of pitch and roll through a vertical threaded stem and guarantees self-alignment by means of articulated bearings present inside them, while the yaw is calibrated by means of another horizontal threaded stem which moves the rear support point laterally.
Each of the 3 points is self-aligning, this means that by adjusting a point, the other two adapt their inclination accordingly, without further adjustments by the operator.
This innovative concept makes the system extremely practical and intuitive, to be used in any situation (even the more extreme) making it easier for the installer to carry out his work quickly and safely.
The forces required for adjustment are very low, but at the same time, once the desired position is reached, the system remains fixed, stable and constant over time, , avoiding continuous system calibration post installation.
It has a wide range of accessories that allows it to satisfy any installation need in any environment with the same tool, helping the warehouse management and installation times.

https://youtu.be/CeeNLg5D4QM
