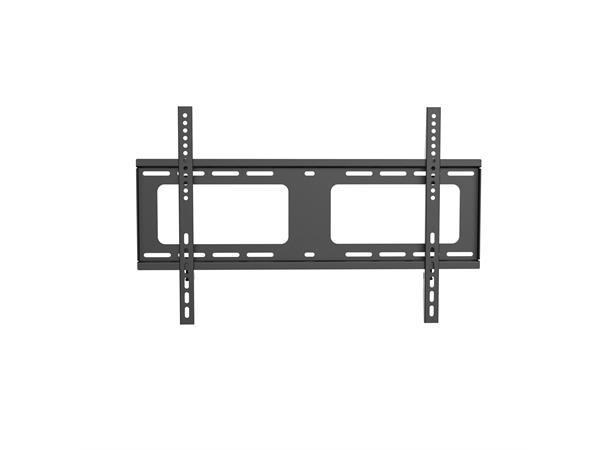

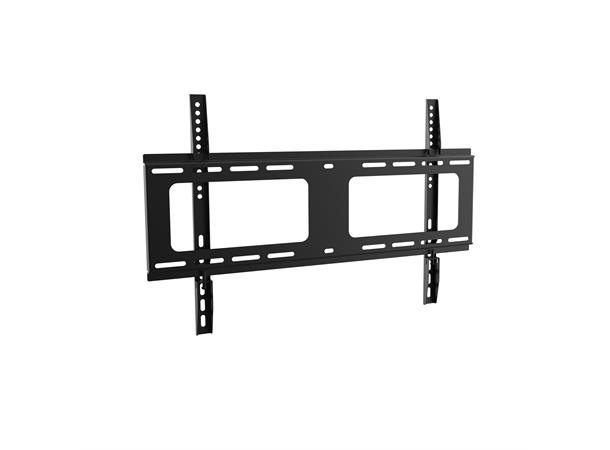

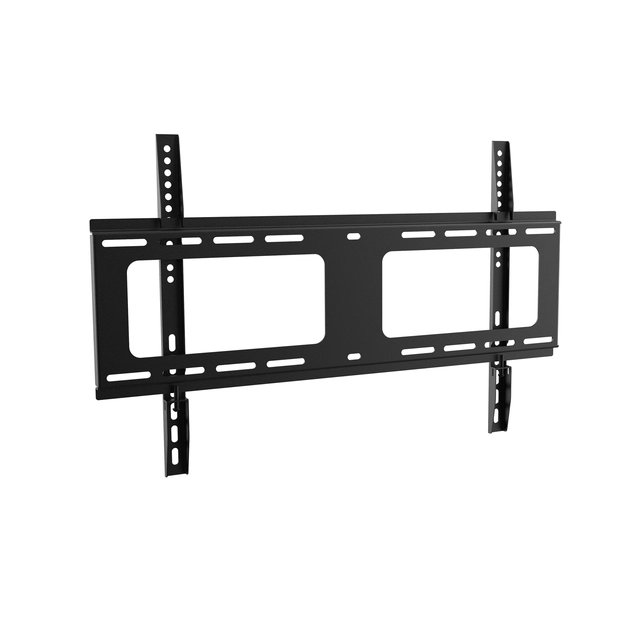

HEAVY-DUTY FIXED TV WALL MOUNT
For most 37''-80” Flat Panel TVsDESCRIPTION
With an impressively low 0.87" (22mm) mounting profile, the PM-FIX-080 is a super slim mount perfectly suited for those applications where seamless integration counts most. It supports most 37''-80” flat panel TVs up to 80kgs/176lbs. The new series is part of the Ultra Low Profile Series of fixed mounts offering a sleek and slim design together with super solid construction. Strength has been tested for a minimum of four times its stated load capacity.
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black

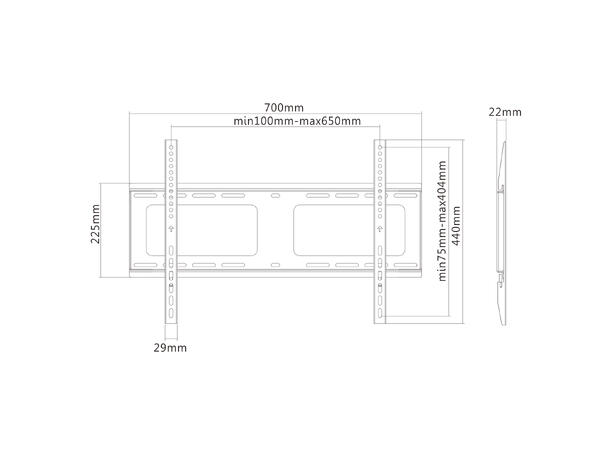

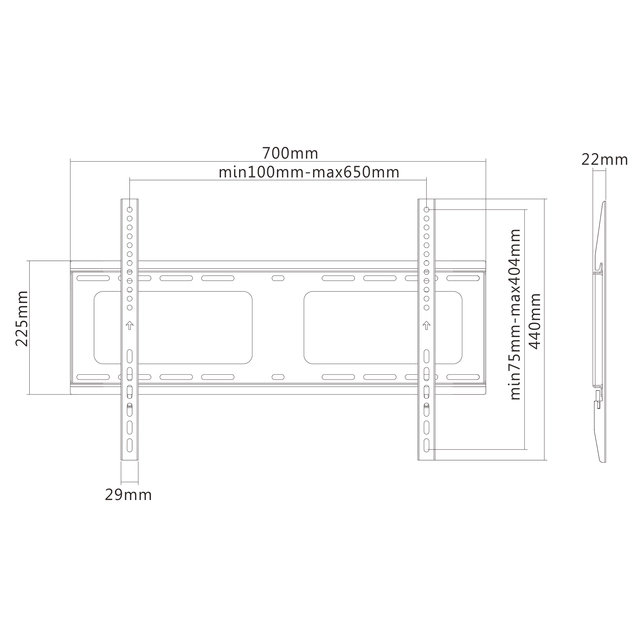

Dimensions: 700x440x22mm (27.6"x17.3"x0.87")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal

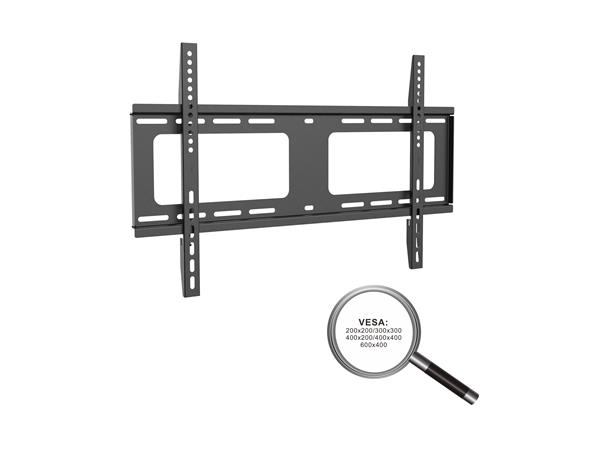

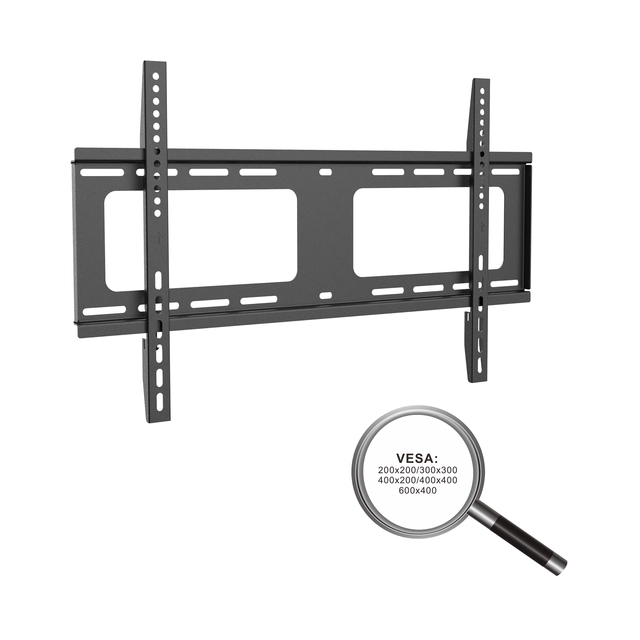

VESA Compatible: 200x200,300x300,400x200,400x400,600x400
Max. VESA: 600x400
Weight Capacity: 80kg (176lbs)
Strength Tested: 4 Times Approved
Profile: 22mm (0.87")
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
