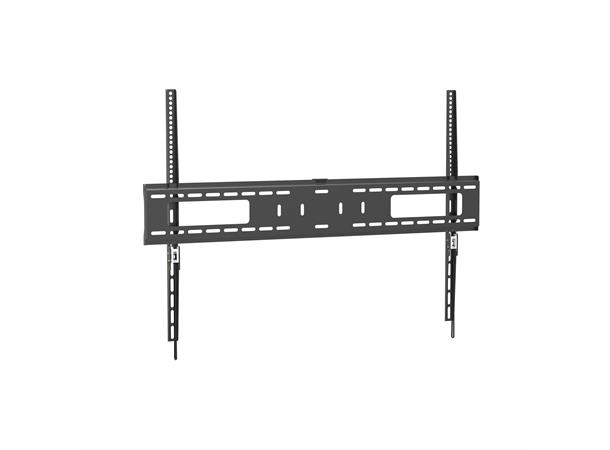

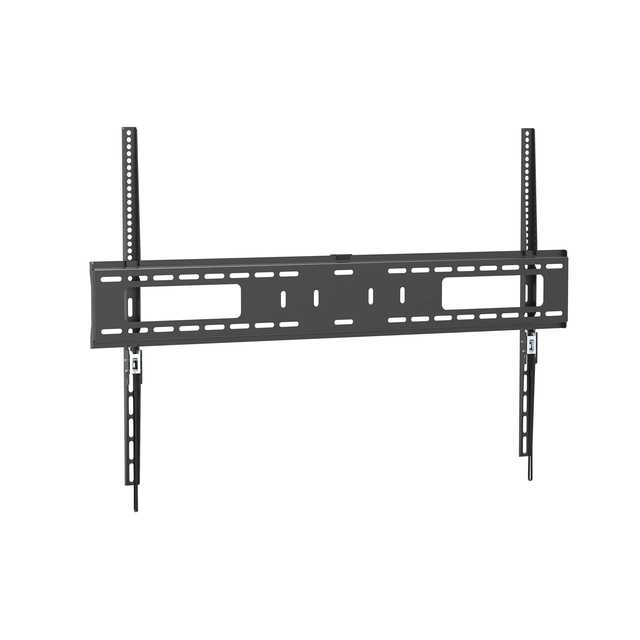

X-LARGE HEAVY-DUTY FIXED TV WALL MOUNT
Fits Most 60"-100" Flat Panel TVsDESCRIPTION
The large low profile fixed wall mount can accommodate most 60"-100" LED, LCD Flat Panel TVs with a maximum weight of 75kgs/1650lbs.The applicable screen size is almost twice as large as that classic ones. Slim design sits just 30.5mm from wall to complement the sleek look of ultra-thin TVs. Its automatically click-in spring lock with easily-release cord easily and securely attaches flat panels to wall. Compatible with VESA hole up to 605x924. In addition, it's suitable for curved TV. Simple construction enables easy installation.
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black

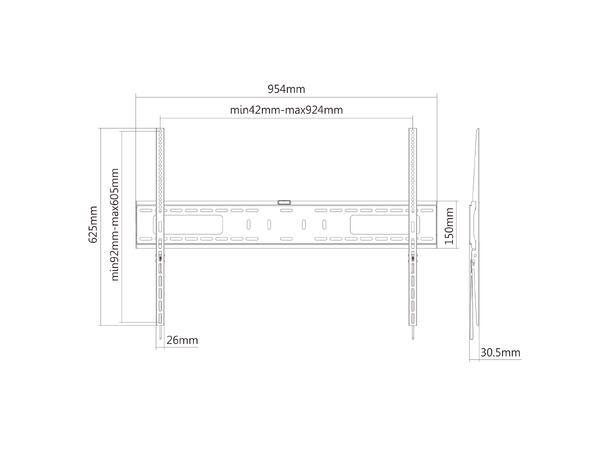

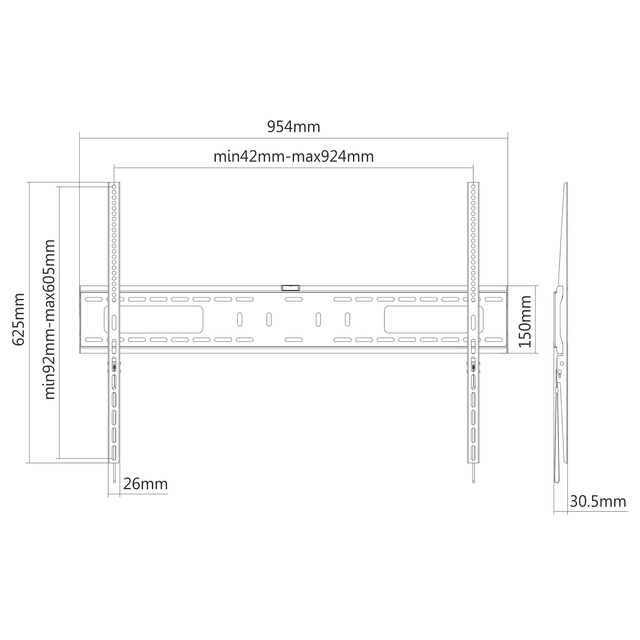

Dimensions: 954x625x30.5mm (37.6"x24.6"x1.2")
Fit Screen Size: 60"-100"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal

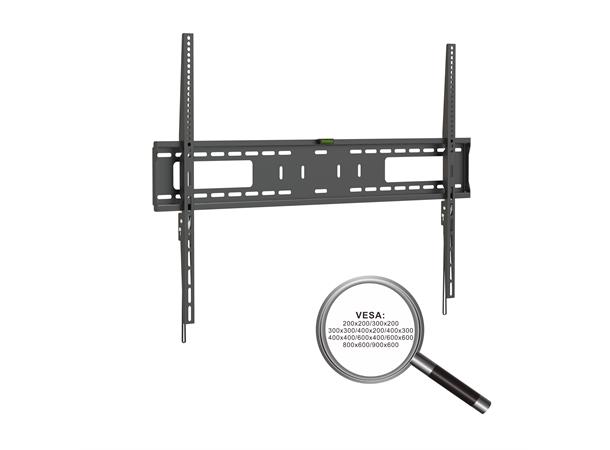

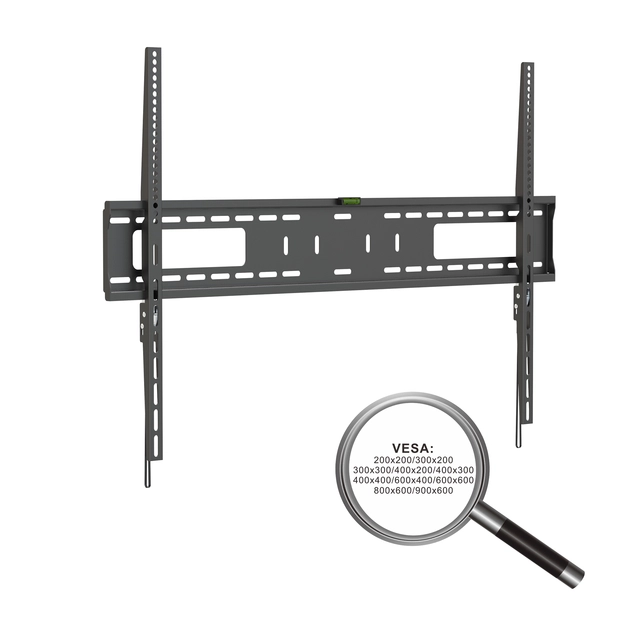

VESA Compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,600x600,800x600,900x600
Max. VESA: 900x600
Weight Capacity: 75kg (165lbs)
Strength Tested: 3 Times Approved
Profile: 30.5mm (1.2")
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)

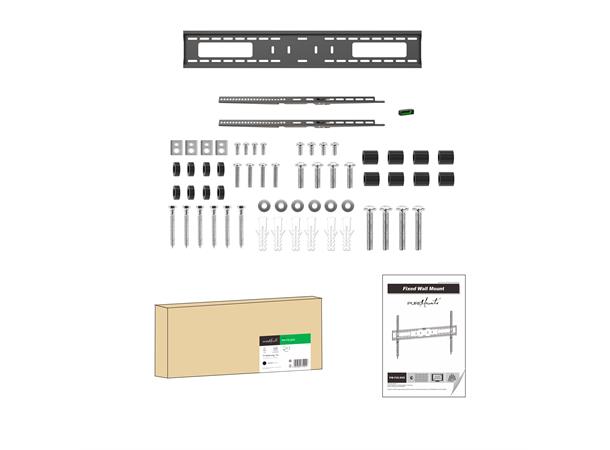

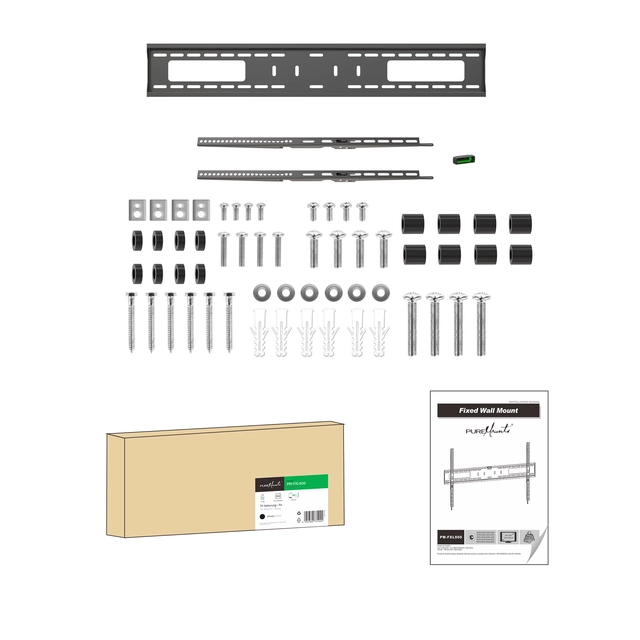

Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
