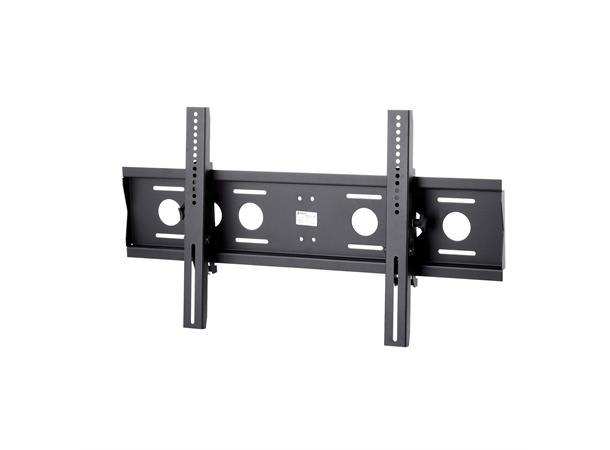

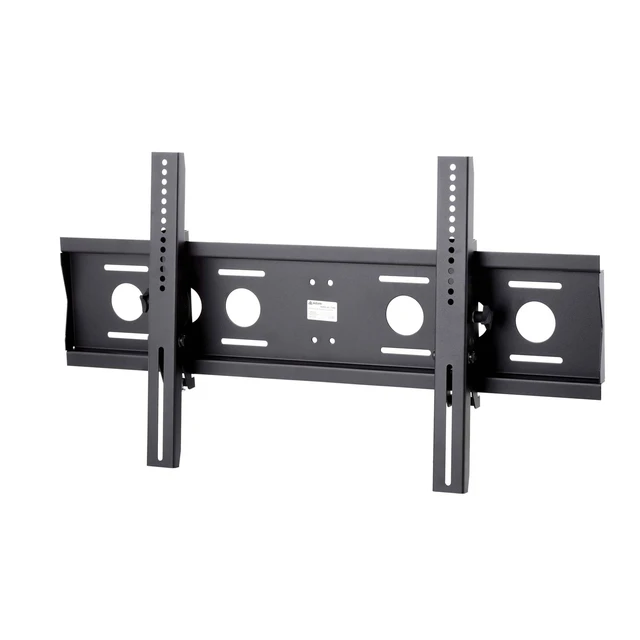

Universal Tilt Wall Mount for 60-65" Screens
Designed for the installation of medium-sized screens from 60" to 65". TWB2 is a robust, tilting wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of TWB2 in conference rooms, waiting rooms or public areas.
- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on brick, concrete, plaster and wooden walls
- Robust design to ensure load capacity up to 80 kg

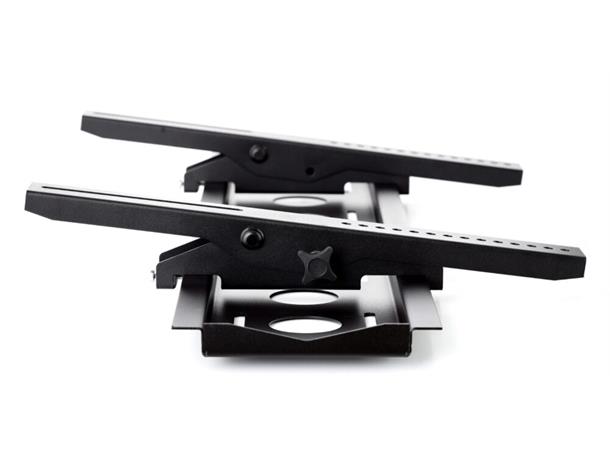

- Posibility of tilting from -10° to +5°
- Wide range of VESA mounting holes
- Screen protection against falling
- Screen mounting screws included
- Minimalist design and functionality
- Modern design
- Simple and quick installation
| Index |
TWB2 |
| Category |
Tilt Wall Mounts |
| Product group |
Display Mounts
|
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
1 |
| Minimum screen size |
60″ |
| Maximum screen size |
65″ |
| Tilt |
-10°/+5° |
| Maximum load |
80 kg |
| VESA Mounting Compatibility |
100×100 up to 800×400
|
| Product dimensions |
W: 900 mm D: 77 mm H: 500 mm (W: 35,43″ D: 3,03″ H: 19,69″) |
| Product weight |
5,5 kg (12 lb) |
| Max. distance from mounting surface |
77 mm (3,03″) |
| Min. distance from mounting surface |
77 mm (3,03″) |
| Max. mounting pattern |
845 mm x 460 mm |
| Min. mounting pattern |
70 mm x 95 mm |
