Merk: denne recieveren deaktiverer HDMI UT ved manglende signal.
Den er derfor egnet for skjermer med funksjonene: HDMI WakeUp og Auto ON/OFF.
Features
- Transmission of HDMI via HDBaseT up to 40m (4K), 70m (1080p)
- Supports resolutions up to 4K UltraHD 60Hz
- Remote power supply via PoH from any PoH-compatible device
- EDID management, bidirectional PoC, pass-through for IR, CEC and RS232
- Ultra-slim and lightweight enclosure, ideal for space-saving installations

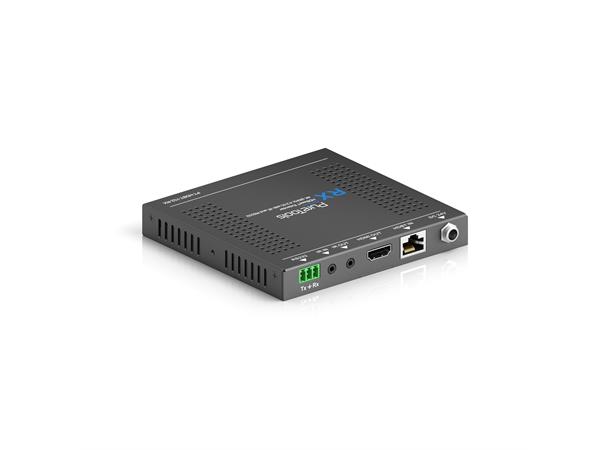

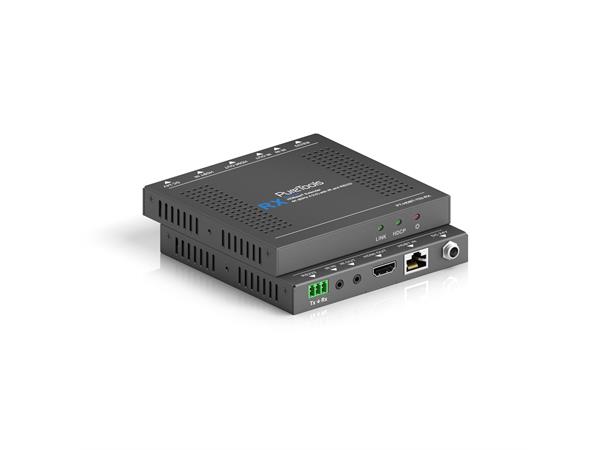

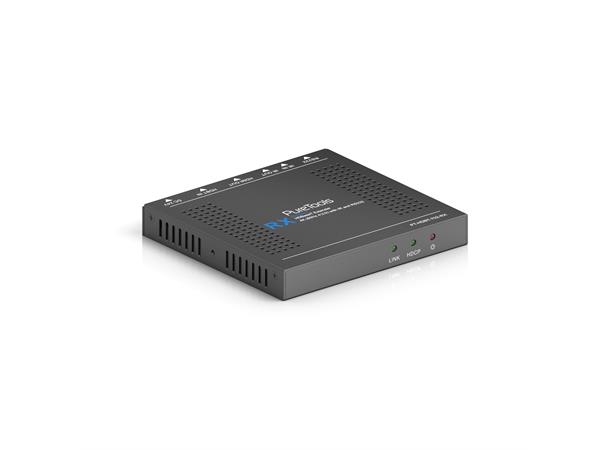

4K HDBaseT Receiver with PoH
PT-HDBT-702-RX is a fully HDBaseT compliant receiver. It is able to receive Full HD up to 70m and 4K/UHD up to 40m with embedded multi-channel audio, and control signals. It is even CEC capable allowing the pass through of CEC to simplify system control with a single remote. Its two way PoH allows for remote powering of a source or transmitter unit or it can be powered from any other PoH capable device.
HDMI HDBaseT Receiver
HDMI - 4K 60HZ 4:2:0
Compatible with 4K HDMI sources and displays, displaying signals at resolutions up to 4K @60 4:2:0 (10.2Gbps).
SMART SIGNAL MANAGEMENT
With CEC pass through, smart EDID management, IR and RS232 pass through, the PT-HDBT-702-RX is perfectly equipped to handle all your data without difficulties. Simply plug and play.
HDBT TRANSMISSION
With HDBaseT transmission up to 40m range at 4K (70m at 1080p), and two way PoH, the PT-HDBT-702-RX is a professional HDBaseT receiver for use with all HDBaseT rated equipment.
ULTRA COMPACT SIZE
All of this technology is packed into an ultra slim light weight enclosure, for installation almost anywhere.
