Features
- Reception of HDMI via HDBaseT up to 40m (4K), 70m (1080p)
- Supports resolutions up to 4K UltraHD 60Hz
- Audio de-embedding analog stereo (3.5mm) & digital S/PDIF (Cinch/Toslink)
- Intelligent EDID management, PoC, pass-through for IR, CEC and RS232
- Ultra-slim and lightweight enclosure, ideal for space-saving installations

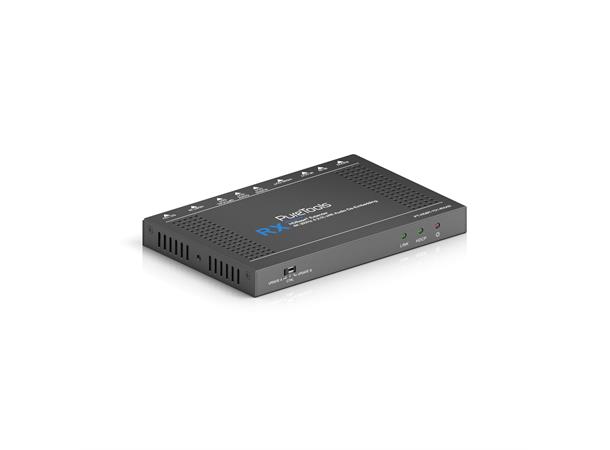

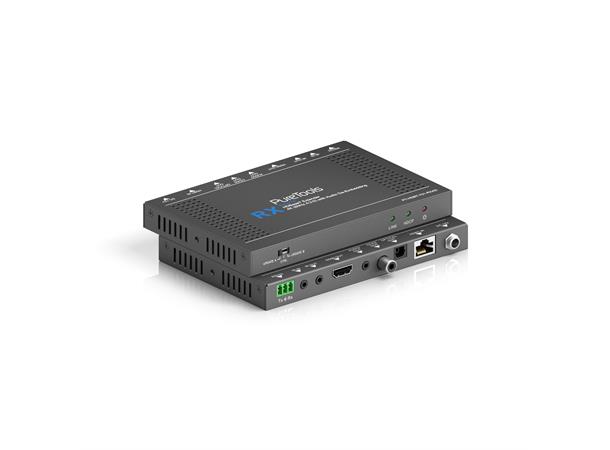

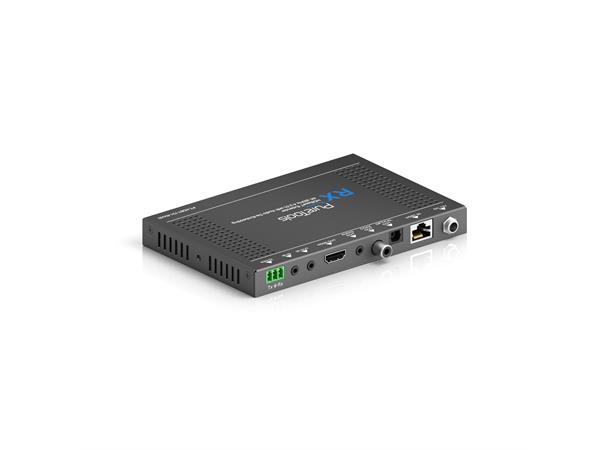

4K HDBaseT Receiver with Analog and Digital Audio De-Embedding
PT-HDBT-701-RXAD is a fully HDBaseT compliant receiver with digital and analog audio extraction capability. It is able to receive Full HD up to 70m and 4K/UHD up to 40m with embedded multi-channel audio, and control signals. Analog stereo can be extracted from the receiver, as can full multi-channel digital audio from both of the two digital ports. It is even CEC capable simplifying system control with a single remote. It supports unidirectional PoH and 48V PoC.
HDMI HDBaseT Receiver with Audio Extraction
HDMI - 4K 60HZ 4:2:0
Compatible with 4K HDMI sources and displays, displaying signals at resolutions up to 4K @60 4:2:0 (10.2Gbps).
AUDIO DE-EMBED

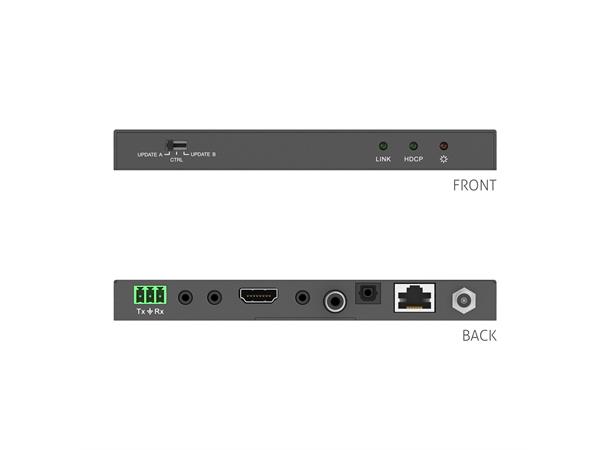

PT-HDBT-701-RXAD boasts comprehensive audio capability with 3 audio extraction ports. Stereo from the 3.5mm jack and full digital audio including Dolby Digital, DTS and DTS-HD from the fiber and coax ports.
SMART SIGNAL MANAGEMENT
With CEC pass through, smart EDID management, IR and RS232 pass through, the PT-HDBT-701-RXAD is perfectly equipped to handle all your data without difficulties. Simply plug and play.
HDBT TRANSMISSION
With HDBaseT transmission up to 40m range at 4k (70m at 1080p), and two way PoH, the PT-HDBT-701-RXAD is a professional HDBaseT receiver for use with all HDBaseT rated equipment.
ULTRA COMPACT SIZE
All of this technology is packed into an ultra slim light weight enclosure, for installation almost anywhere.
