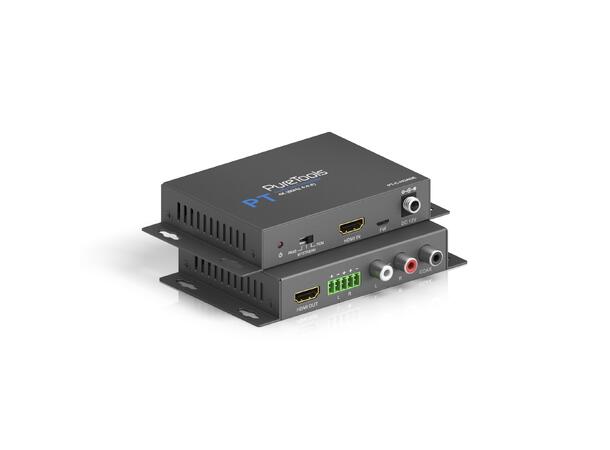

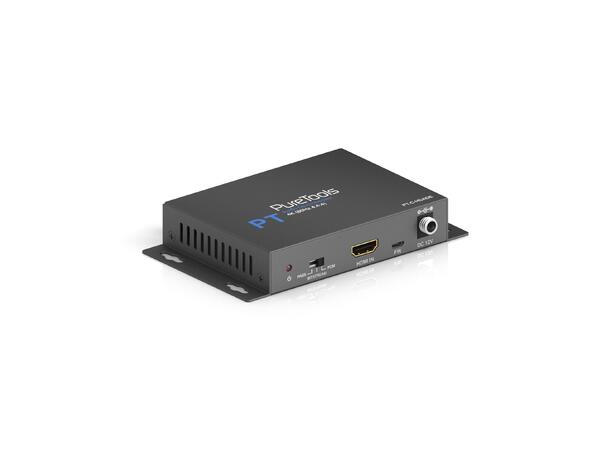

PureTools HDMI audio extractor

HDMI Aud. De-Embedder,4K(60Hz 4:4:4)HDR

Varenr: PT-C-HDADE
PureTools HDMI audio extractor HDMI Aud. De-Embedder,4K(60Hz 4:4:4)HDR PureTools HDMI audio extractor HDMI Aud. De-Embedder,4K(60Hz 4:4:4)HDR PureTools HDMI audio extractor HDMI Aud. De-Embedder,4K(60Hz 4:4:4)HDR PureTools HDMI audio extractor HDMI Aud. De-Embedder,4K(60Hz 4:4:4)HDR
eks. mva



Merk: leverer lyd på alle utganger samtidig. Egnet for tappning av lyd til f.eks teleslynge, streaming etc. der man ønsker lyd ut til flere kanaler.



Features

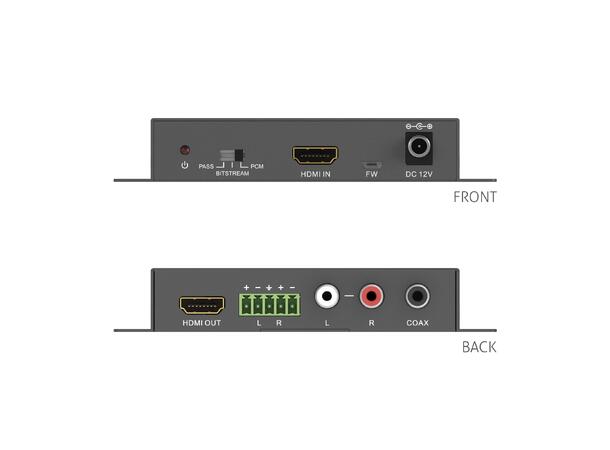

  • Audio de-embedding from 1 HDMI signal to 1 audio output incl. 1 HDMI pass-through
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR
  • Analog (bal. 5-pin) & digital (S/PDIF Coax) audio de-embedding up to DTS-HDy
  • CEC pass-through, EDID management for perfect AVR compatibility
  • Ultra-slim and lightweight case with screwable power supply





HDMI Audio De-Embedder 4K (60Hz 4:4:4) with HDR
The PT-C-HDADE is an HDMI2.0a audio extractor with a variety of audio extraction ports supporting the full HDMI bandwidth making it ideally suited for home cinema and high end professional installations. 18Gbps video is passed through and audio is extracted from the stream in both digital and analogue formats. The device has the ability to mask the display EDID so that if for instance, the TV does not support Dolby Digital audio, DTS can still be extracted and passed directly to an AVR. This intelligent feature ensures compatibility with any 4K TV or monitor.

Extracts PCM, Dolby Digital, DTS, and DTS-HD regardless of the audio format supported by the display


CINEMA SOUND EXTRACTION
Extracts PCM, Dolby Digital, DTS, and DTS-HD regardless of the audio format supported by the display. Audio is output via balanced Phoenix, stereo RCA or digital COAX making it ideal for pro home cinema.



CEC AND EDID MANAGEMENT
Designed for flawless operation and simple usage. CEC pass through simplified control and EDID management including fixed EDID masking for AVR compatibility ensure impeccable communication between devices.



FULL 18GBPS AND HDR
Compatible with the latest Ultra High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.



ULTRA SLIM DESIGN
All of this technology is packed into a slim line enclosure, for installation into furniture or snugly behind the TV.



PureTools

DOCUMENTS
