Features
- Switching of 4 HDMI signals to 1 HDMI output
- Supports 18Gbps for resolutions up to 4K UltraHD 60Hz incl. HDR
- Auto Sense: HDMI 5V (HPD) or active video stream (TMDS switching)
- EDID DIP switches, RS232 and IR control, stereo audio de-embedding
- Also supports CEC commands, FW updates via USB and ARC functions

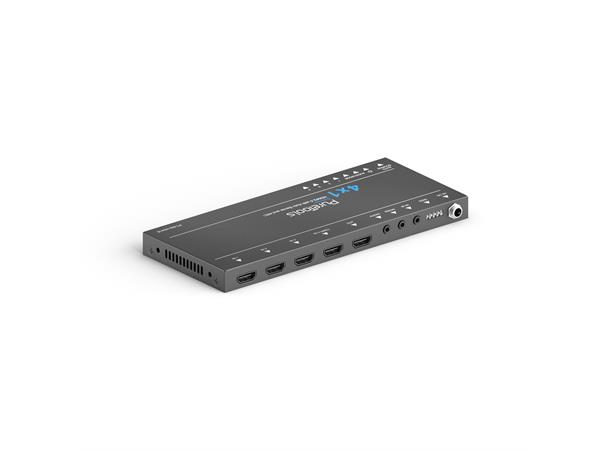

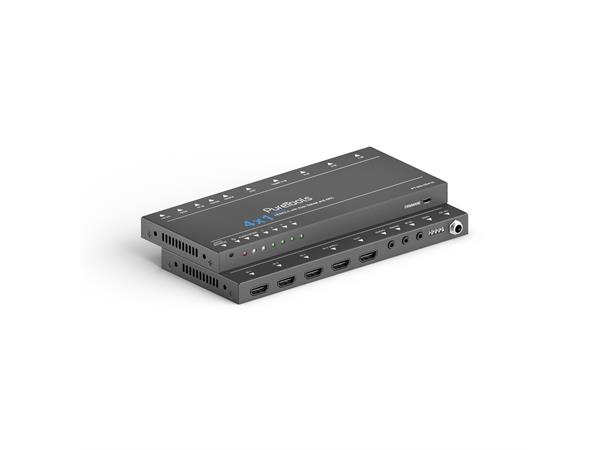

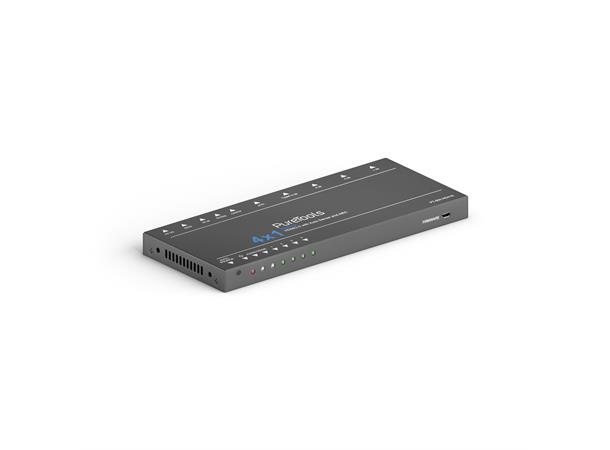

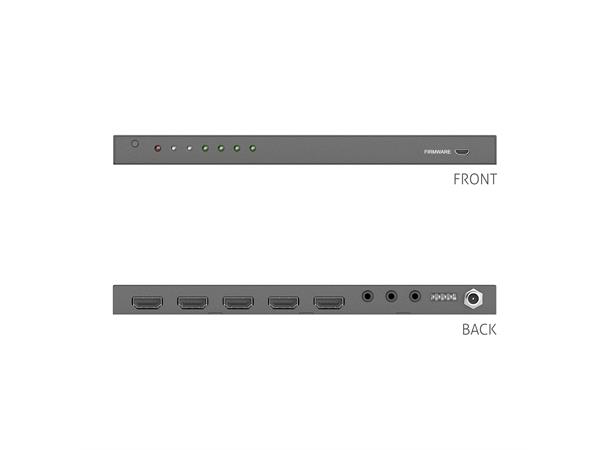

4x1 4K 18Gbps HDMI Switcher with TMDS Auto Sense and ARC
High-grade elctronic products for commercial applications
The PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product line's focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
The PureTools Series - High Quality AV Products for Commercial Applications
Features:
- 4 switchable HDMI-A inputs to 1 HDMI-A output incl. audio de-embedding (3.5mm stereo)
- Input and output resolutions up to 4K@60Hz, 4:4:4 incl. HDR with full 18Gbps and HDCP 2.2 compatibility
- Two special "Auto Sense" modes: Either detects the HDMI 5V line (HPD) or detects an active video stream (TMDS sensing)
- EDID DIP switches as well as 3.5mm inputs for RS232 and IR control signals
- Also supports CEC commands, FW updates via USB and ARC functions
- New firmware with new RS232 functions: HDMI Status Monitor (HDMI connected / disconnected for each port) and new RS232 command "SYSInfo" to query the HDMI status on each port
