Features
- Switching of 1 VGA, DP and 3 HDMI signals to 2 HDMI outputs
- Supports resolutions up to FullHD and WUXGA (1920x1200),
- Volume control for HDMI, mic- and line-in audio signals, up- and downscaling up to 2K WUXGA (1920x1200)
- Auto sense for automatic and seamless signal switching
- Control via web-GUI, OSD, RS232, CEC and IR, firmware updates via remote
Multiformat Seamless Scaler Switcher

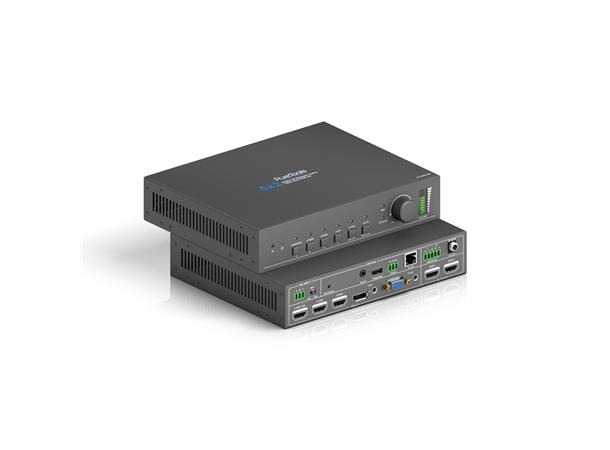

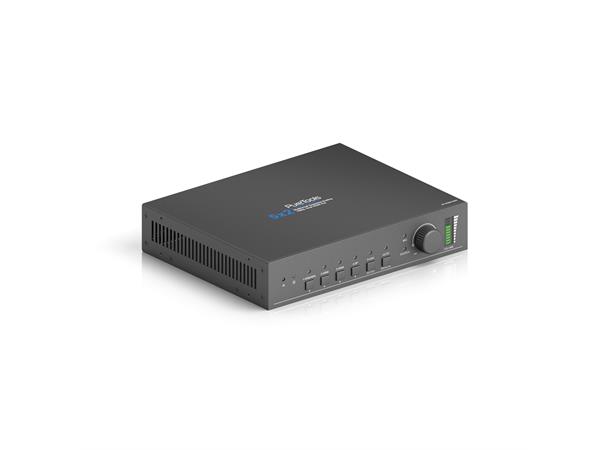

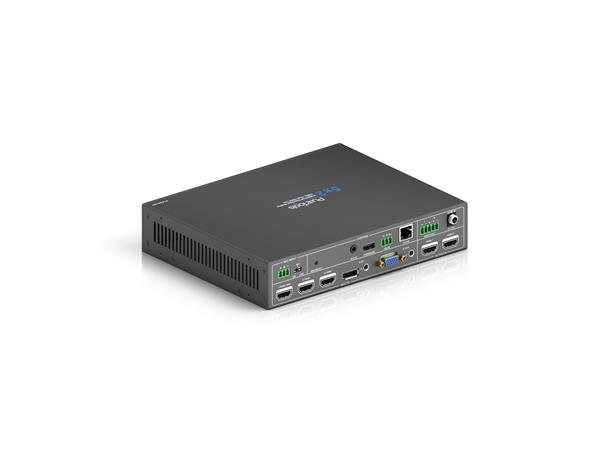

The PT-PSW-52H is a compact seamless scaler switcher designed for professional installation in small meeting rooms, huddle rooms and classrooms. Five multiformat video inputs, three mixable audio streams with pre amplification and a mirrored HDMI output give the installer the flexibility to tackle a range of applications with a single SKU. PT-PSW-52H's powerful Web GUI, simple OSD and handy CEC commands mean that the job is completed with the absolute minimum time possible spent on site.#
5x2 Presentation Switcher
SEAMLESS MULTIFORMAT SWITCHING
Seamlessly switch between DP, VGA, MHL and two HDMI on the auto sense equipped input side, directly to a scaled output of resolution up to 1080p and WUXGA on two mirrored HDMI outputs.
INTUITIVE CONTROL
The intuitive Web GUI adds another level of control to its simple yet effective IR remote, and with a powerful OSD and CEC embedding the system can be up and running perfectly in minutes.
REMOTE UPGRADE
Advanced control over IP is simple. Remotely configure settings and even install FW. Remote upgrades limit on-site time and allow installers to perform maintenance remotely and out of hours.
FLEXIBLE AUDIO INPUT AND OUTPUT
48V phantom power, dynamic and wireless MIC support, DP and VGA Audio embedding and builtin balanced audio extraction with volume adjust, ensures flawless sound reproduction.
COMPLETE EDID MANAGEMENT
The PT-PSW-52H has comprehensive control over EDID. Smart EDID management settings and the ability to load customized EDID's, guarantee a perfect image every time.
COMPACT SIZE
All of this technology is packed into a ½RU sized enclosure, for installation into furniture or a professional rack.
