Features
- Switching of 1 HDBaseT, DP, 2 VGA and 5 HDMI signals to 1 HDMI and HDBaseT output
- Supports resolutions up to 4K UltraHD 60Hz, integrated up- and downscaling
- Audio amplifier (40W, Class-D), analog audio de-embedding
- Volume control for HDMI, mic and line-in audio signals
- Control via web-GUI, OSD, RS232 and IR, firmware updates via remote

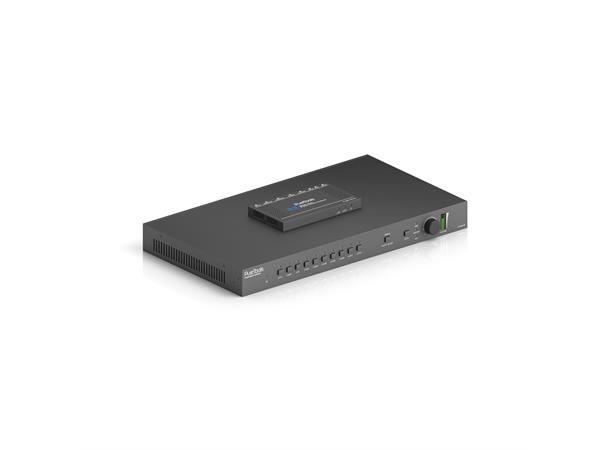

4K Multiformat Scaler Switcher with Audio Amplifier
The PT-PSW-92 is a professional 4K scaling presentation switcher designed to handle a myriad of A/V applications. 4K support on a wide variety of video formats including HDMI, HDBaseT, DisplayPort and VGA. It features advanced 4K UHD video scalability for all video inputs up to 4K@60 4:4:4., enhanced audio features, Mic/Line inputs and mixing, including a 40w 70V/100V constant voltage amplifier. With HDBaseT integrated on the output, PT-PSW-92 is able to transmit video up to 100m.
9x2 Presentation Switcher
ULTIMATE 4K SCALING
The most advanced 18Gb input scaling on the market meaning its one of the only scalers to handle all available user sources while still supporting legacy display technology at your choice of fixed output resolution.
INTUITIVE CONTROL
The PT-PSW-92's simple yet intuitive Web GUI is all you need for user control, and with its powerful OSD the system can be up and running perfectly in minutes.
SWITCHABLE INPUT

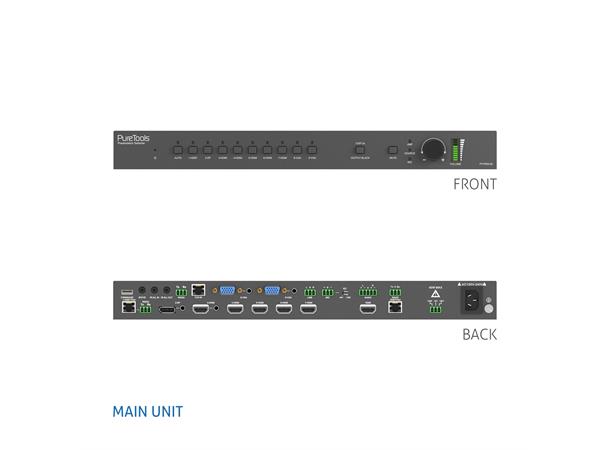

With five HDMI, two VGA and one DP and HDBaseT each on the auto switch equipped input side, and dual mirrored outputs in HDMI and HDBaseT, the PT-PSW92 is prepared for any situation.
REMOTE UPGRADE
Advanced control over IP is simple with ADMIN mode. Remotely configure settings and even install FW. It reduces on-site time and allows installers to perform maintenance remotely and out of hours.
END TO END HDBT

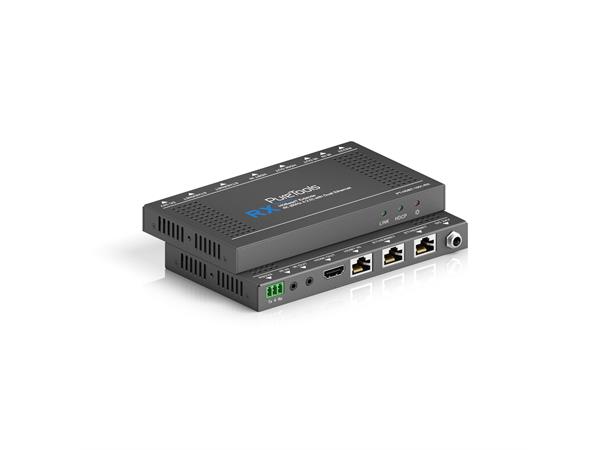

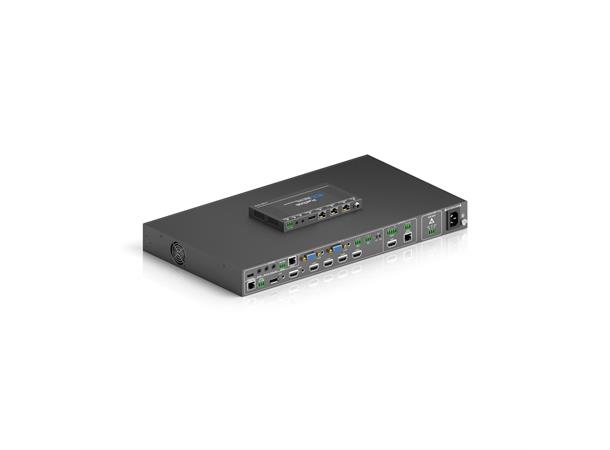

With a 4K capable HDBaseT input, full PoH and a long range 4K HDBaseT output, the PT-PSW-92 is the most advanced HDBaseT compatible scaler on the market. This kit includes dual Ethernet and a 100m range receiver.
DIGITAL AMPLIFIER
Its built in high-performance and highly efficient Class D amplifier saves energy and provides 40W constant voltage amplification, with 70V or 100V outputs for a flexible powerful off the shelf audio solution.
FLEXIBLE AUDIO INPUT
Support for 48V phantom power, dynamic and wireless MIC as well as separate DP, HDMI and VGA Audio embedding and built in noise suppression ensures perfect sound reproduction where ever you want it.
RACK MOUNTABLE

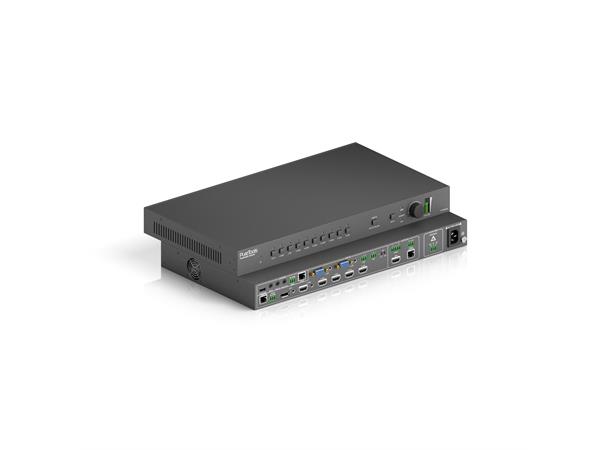

All this technology is packed into a 1U enclosure, for installation into a professional rack.
