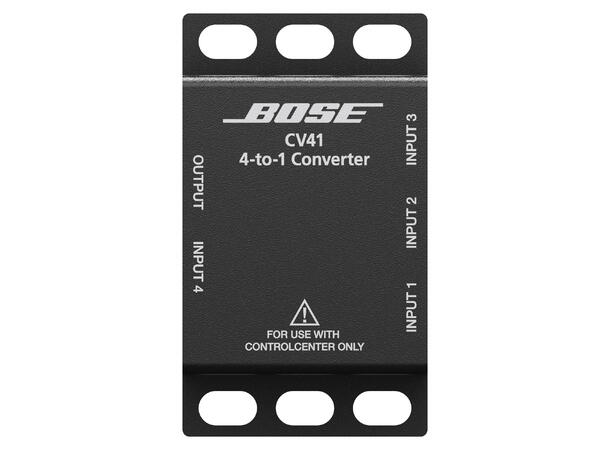

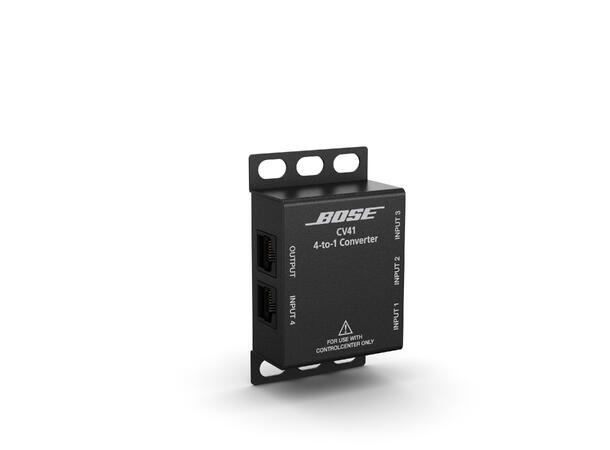

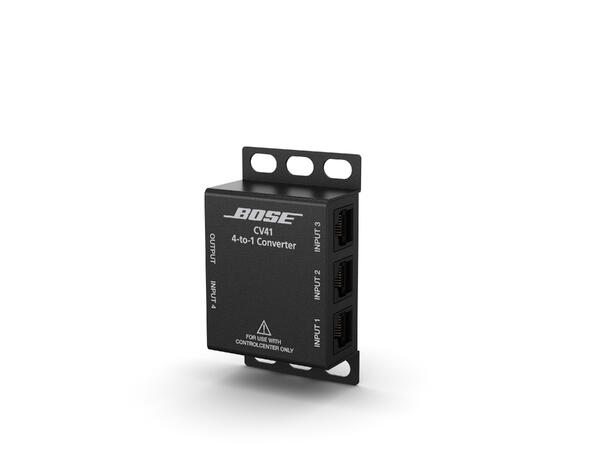

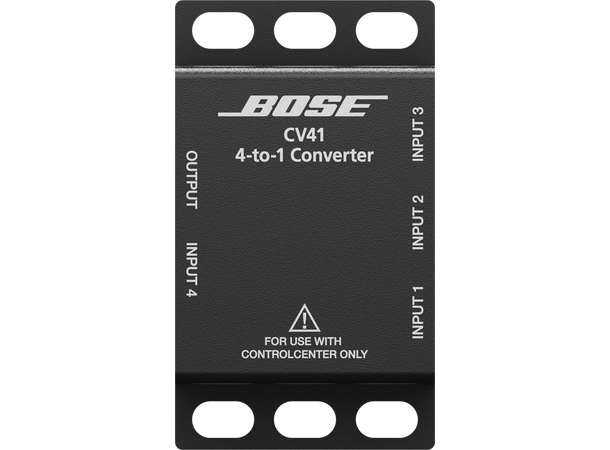

The Bose Professional ControlCenter CV41 converter simplifies wiring when using multiple ControlCenter CC-1 zone controllers with a PS602 or PS604 PowerShare adaptable power amplifier. The CV41 converter supports up to four CC-1 controllers allowing each CC-1 to homerun to the amplifier.

FEATURES

• The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.

Applications

Designed for a wide range of applications, including:

• Retail stores
• Restaurants and bars
• Hospitality venues
• Religious and worship facilities
• Auxiliary zones

SPECS

Technical Specification

• Cable Requirements

• Cat 5

• Maximum Controller Quantity

• 2 ControlCenter CC-1 controllers per ControlCenter CV41 (with PowerShare PS602) / 4 ControlCenter CC-1 controllers per ControlCenter CV41 (with PowerShare PS604)

• Maximum Cable Length

• 25 ft (7.6 m) to PowerShare amplifier / 2000 ft (609 m) to ControlCenter CC-1

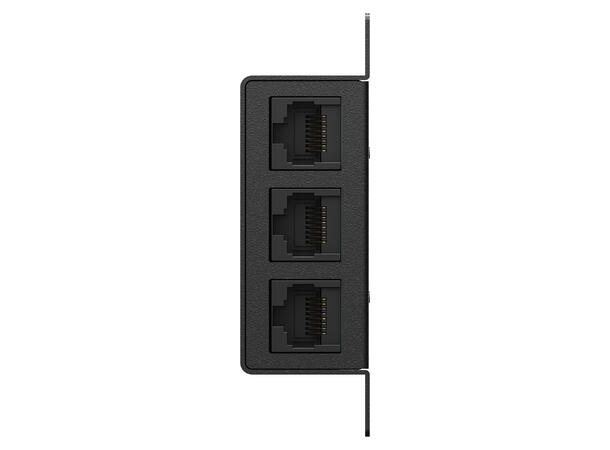

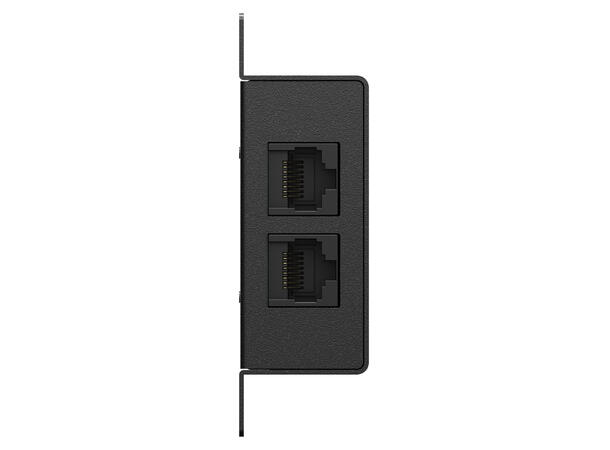

• Connectors

• (5) RJ-45, TIA/EIA 568B wiring standard

• Compatible with

• ControlCenter CC-1

• Colors

• Black

• Suspension/Mounting

• 2RU rack ears

• Product Dimensions (H×W×D)

• 3.5 in × 2.0 in × 1.1 in (88 mm × 51 mm × 27 mm)

Product codes

• 768928-0010
• ControlCenter CV41

Included in Packaging

• (1) ControlCenter CV41

• (1) installation guide
