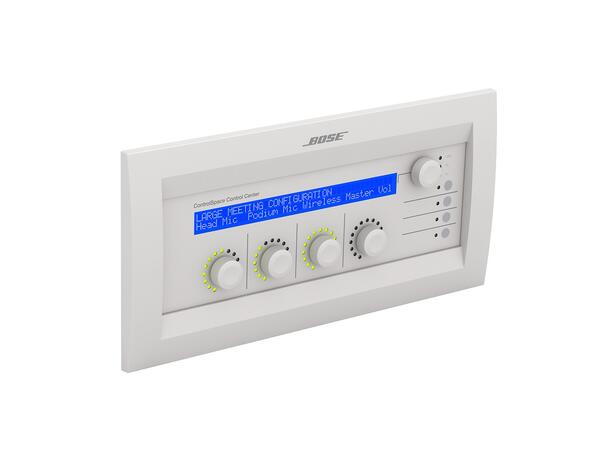

The Bose Professional ControlSpace CC-64 control center is an elegant, programmable, networked controller that provides users a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network version PowerMatch amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.

The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed “scenes” or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling.

FEATURES

• Elegant styling with easy-to-read dynamic labeling for simplified end user operation

• 2-line by 40-character backlit LCD screen

• 4 gain/selector control knobs (rotary/push) with LED rings

• 4 bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls

• 1 master scene/preset recall knob (rotary scroll/push to select)

• Simplified drag-and-drop setup using ControlSpace Designer software

• Customizable on-screen wording provides easier system operation

• Supports programming of easy-to-select scenes, allowing multiple room usage scenarios to be recalled from the CC-64 by end users

• Programmable software lock-out

• Fits into a standard 5-gang electrical wall box

SPECS

Technical Specification

• EMC

• ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B

• Cable Requirements

• Cat 5, unshielded twisted-pair (UTP)

• Maximum Controller Quantity

• 16 per ControlSpace network

• Maximum Cable Length

• 328 ft (100 m)

• Connectors

• (1) RJ-45 port / (1) Euroblock, 2 pins

• Power Range

• 15–24 VDC, 300 mA

• Controls, Front Panel

• (4) gain/select knobs (rotary/push), (4) bank-switch buttons, (1) master scene/preset recall knob (rotary/push)

• Display

• 2-line × 40-character LCD, backlit blue

• LED Status Indicators

• (4) volume level LED rings, (4) bank selection LEDs, (1) network LED, (1) network transmit LED, (1) network receive LED

• Colors

• White

• Suspension/Mounting

• 5-gang electrical box (North America)

• Product Dimensions (H×W×D)

• 5.4 in × 11.1 in × 2.0 in (137 mm × 282 mm × 51 mm)

Product codes

• 41760
• ControlCenter CC-64, white

Included in Packaging

• (1) ControlSpace CC-64

• (1) installation guide

• (1) Cat 5 power adapter

DOWNLOADS

• Installation Guide

• CAD Files

• Declaration of Conformity

• Packaging Material Information
