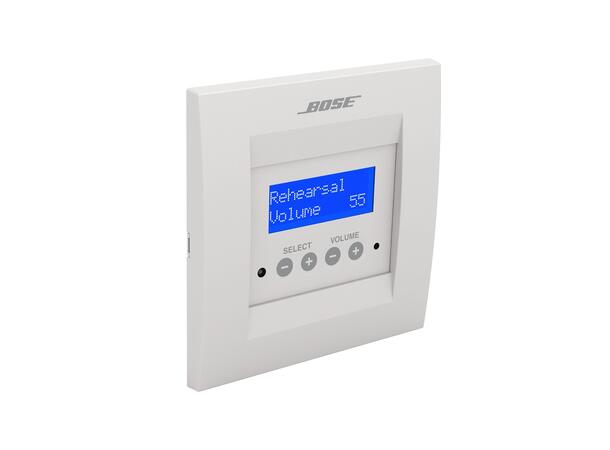

The Bose Professional ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting “scenes” or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.

FEATURES

• Elegant styling with intuitive controls for end user operation

• 122 × 32 pixel backlit blue LCD

• Sealed volume +/- and select +/- pushbuttons

• Simplified drag-and-drop setup using ControlSpace Designer

• DIP switch addressing on back of unit

• Programmable control of system elements (switching of audio sources, system configurations)

• Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users

• Customizable on-screen wording provides easier system operation

• Programmable software lock-out

• Fits into a standard 2-gang electrical wall box

SPECS

Technical Specification

• EMC

• ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B

• Cable Requirements

• Cat 5 (24–18 AWG), unshielded twisted-pair (UTP)

• Maximum Controller Quantity

• 15 per ControlSpace ESP processor

• Maximum Cable Length

• 2000 ft (609 m)

• Connectors

• (1) Euroblock, 6 pins

• Power Range

• 8–18 VDC, 100 mA

• Compatible with

• ControlSpace ESP-880A, ControlSpace EX-1280, ControlSpace EX-1280C, DS4 Ceiling Audio Solution

• Controls, Front Panel

• (2) volume buttons (+, –), (2) select buttons (+, –)

• Display

• 122 × 32 pixel LCD, backlit blue

• Colors

• White

• Suspension/Mounting

• 2-gang electrical box (North America, Japan)

• Product Dimensions (H×W×D)

• 4.8 in × 4.7 in × 1.5 in (121 mm × 118 mm × 37 mm)

Product codes

• 41761
• ControlCenter CC-16, white

Included in Packaging

• (1) ControlSpace CC-16

• (1) installation guide
